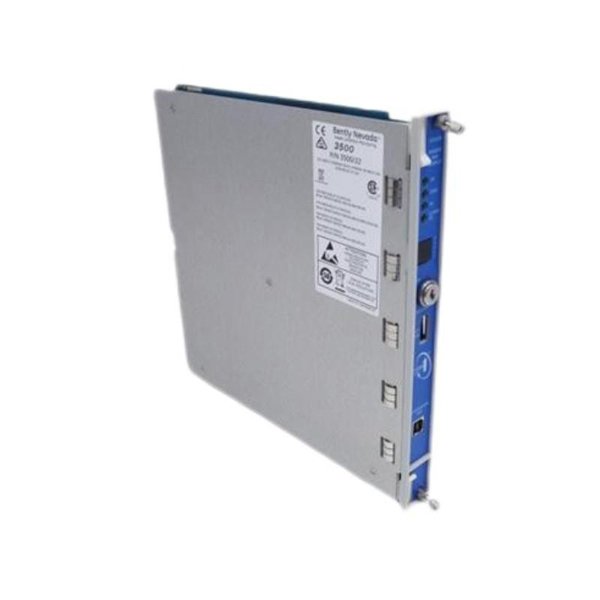

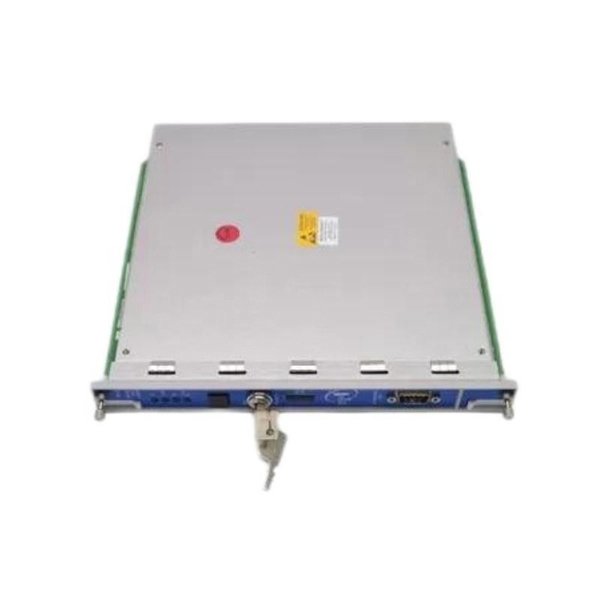

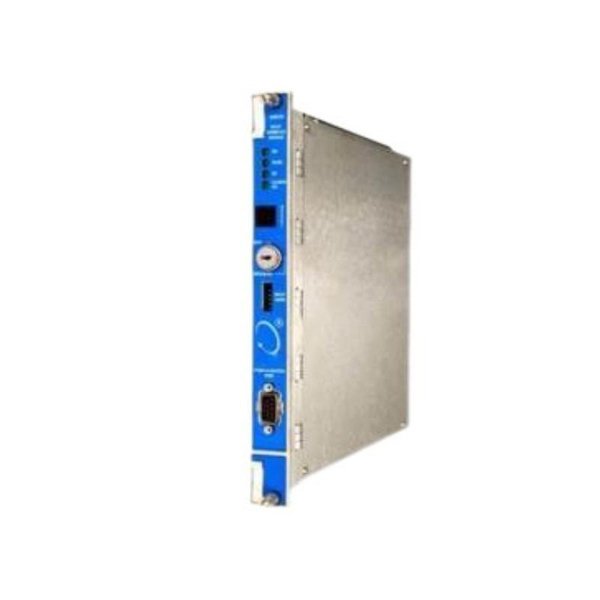

Bently Nevada 3500/22-01-01-00 Transient Data Interface Module

The Bently Nevada 3500/22-01-01-00 Transient Data Interface Module (TDI) serves as a critical communication gateway and system monitor for the Bently Nevada 3500 Series Machinery Protection System, one of the industry’s leading solutions for continuous vibration monitoring and machine protection. Acting as both a communication processor and system display interface, the TDI integrates machine condition data, alarm statuses, and transient event data into a unified monitoring platform.

This particular TDI version, 3500/22-01-01-00, supports standard system communications, including transient data capture, and provides direct interface capabilities with the host software such as System 1® Machinery Management Software, enabling advanced diagnostics, real-time monitoring, and comprehensive data analysis.

Key Features

• Central Data Interface for 3500 Racks: Functions as the primary communication module for the entire 3500 system rack

• Transient Data Acquisition: Supports capture and communication of transient data for advanced diagnostics

• System 1® Integration: Enables seamless connectivity with Bently Nevada’s System 1® software for real-time monitoring and event analysis

• Dual Functionality: Combines the roles of a Communication Gateway and Rack Interface Module into one device

• High-Speed Data Transmission: Supports fast data transfer for critical machine condition monitoring

• Multiple Protocols Supported: Includes standard communications and Ethernet capabilities (depending on configuration)

• LED Indicators: Provides real-time status feedback for system health and communication integrity

• Hot-Swappable Design: Allows for replacement without shutting down the entire system

• Industrial-Grade Reliability: Built to withstand harsh environments typical of process industries

Technical Specifications

Product Advantages

• Integrated System Management: Combines multiple monitoring and communication functions within a single module, reducing complexity

• Real-Time Transient Data: Enables detailed analysis of machine faults, start-up, and shutdown events through transient capture

• System 1® Compatibility: Provides direct, high-speed interface to System 1® for advanced diagnostics and machinery management

• Improved System Uptime: Hot-swappable design allows for quick replacement without disrupting system operation

• Robust Communication: Reliable data transfer for continuous monitoring of critical rotating equipment

• Simplified Maintenance: LED status indicators and integrated diagnostics streamline troubleshooting and system validation

• Industrial Durability: Engineered for demanding environments, suitable for use in oil & gas, power generation, refining, and similar industries

• Centralized Data Access: Aggregates information from all rack modules for efficient data transmission to plant-wide systems

• Long-Term Asset Protection: Ensures comprehensive, continuous monitoring for machinery protection and performance optimization

Industry Applications

The Bently Nevada 3500/22-01-01-00 TDI Module is widely utilized in industries where continuous condition monitoring of rotating equipment is critical:

• Oil & Gas: Monitoring of compressors, pumps, turbines, and critical rotating assets in upstream and downstream operations

• Power Generation: Vibration monitoring and protection for steam turbines, gas turbines, and generators

• Petrochemical and Refining: Ensures equipment reliability for process-critical machinery

• Metals and Mining: Monitoring crushers, mills, and other rotating machinery for safe, efficient operation

• Pulp and Paper: Protecting high-speed rollers, drives, and rotating equipment

• Marine and Offshore: Machinery condition monitoring in harsh, remote environments

• Water and Wastewater: Monitoring of pumps, blowers, and rotating infrastructure

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 3500/22-01-01-00 TDI?

It serves as the communication gateway and transient data acquisition module for the 3500 rack, supporting real-time condition monitoring and diagnostics.

Q2: Can this TDI module interface with System 1® software?

Yes, it provides direct connectivity to Bently Nevada’s System 1® Machinery Management Software for comprehensive monitoring and analysis.

Q3: Is the TDI hot-swappable?

Yes, the module can be replaced while the system remains operational, minimizing downtime.

Q4: What types of data does the TDI handle?

It handles both static machine condition data and transient data, such as startup, shutdown, and fault events.

Q5: What communication protocols are supported?

The module supports standard Ethernet communication and proprietary Bently Nevada protocols for seamless integration.

Q6: How is the TDI powered?

It receives power through the backplane of the 3500 rack, eliminating the need for external power supplies.

Q7: Can this module operate in hazardous environments?

Yes, with proper certifications like ATEX and IECEx, it is suitable for use in hazardous or classified industrial zones.

Q8: How does the TDI improve system reliability?

By providing real-time data, system diagnostics, and redundant communication options, it enhances overall system reliability and asset protection.

Q9: Is LED status indication available?

Yes, the module features LED indicators for system health, network status, and fault conditions, simplifying troubleshooting.

Q10: What happens if the TDI fails?

System redundancy and hot-swappable design allow for quick replacement without shutting down the entire 3500 rack.
