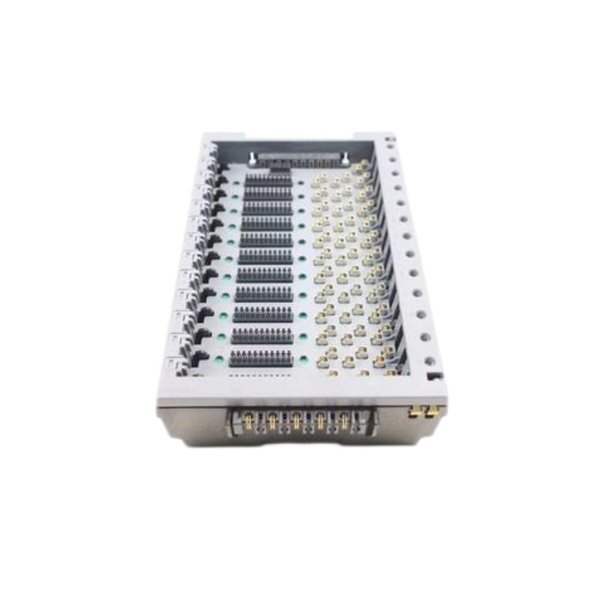

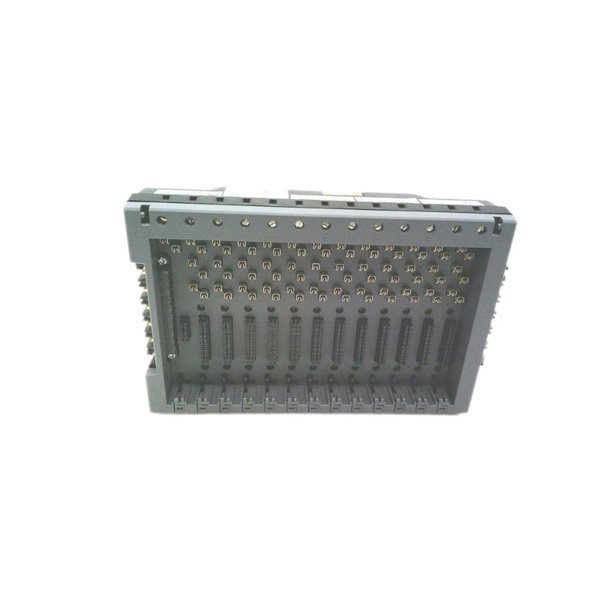

Emerson SE4601T07 KL4201X1-BA1 Charm Baseplate

The Emerson SE4601T07 KL4201X1-BA1 CHARM Baseplate is a critical component within the DeltaV™ Electronic Marshalling system. It serves as a mounting platform for CHARM (CHARacterization Module) I/O modules, facilitating flexible and efficient integration of field devices into the control system. Designed for use in both standard and hazardous environments, this baseplate supports various terminal block configurations, ensuring adaptability to diverse application requirements.

Technical Specifications

Product Applications

The Emerson SE4601T07 KL4201X1-BA1 CHARM Baseplate is utilized across various industries due to its versatility and robust design:

• Oil & Gas: Facilitates integration of field instruments in upstream and downstream processes.

• Chemical Processing: Supports safe and efficient control in hazardous environments.

• Power Generation: Enables reliable monitoring and control of power plant operations.

• Pharmaceuticals: Assists in maintaining stringent process control and compliance standards.

• Water & Wastewater Treatment: Enhances automation and monitoring of treatment facilities.

• Food & Beverage: Supports precise control systems for production and packaging lines.

Product Advantages

• Flexibility: Compatible with a wide range of CHARM I/O modules and terminal blocks, allowing customization to specific application needs.

• Safety Compliance: Certified for use in hazardous locations, ensuring safe operation in challenging environments.

• Compact Design: Space-saving dimensions facilitate installation in areas with limited space.

• Robust Construction: Designed to withstand harsh industrial conditions, including extreme temperatures, vibration, and shock.

• Ease of Integration: Seamlessly integrates into the DeltaV™ system, simplifying the process of adding or modifying I/O points.

• Efficient Power Distribution: Provides reliable power to connected field devices, reducing the need for additional power supplies.

FAQ

1. What is the primary function of the KL4201X1-BA1 CHARM Baseplate?

   • It serves as a mounting and connection platform for CHARM I/O modules within the DeltaV™ system.

2. Is the baseplate suitable for use in hazardous environments?

   • Yes, it holds certifications such as ATEX and IECEx for use in hazardous locations .

3. What types of terminal blocks are compatible with this baseplate?

   • It supports various terminal blocks, including standard, fused injected power, 3-wire DI, 3-wire AI, relay output, and thermocouple/mV types .

4. What are the power specifications for the CHARM bus and field circuits?

   • CHARM Bus Power: 6.3 VDC at 4 A; Field Circuit Power: 24 VDC at 10 A .

5. What are the environmental operating conditions for this baseplate?

   • Operating temperature ranges from -40°C to +70°C, with a humidity range of 5% to 95% non-condensing .

6. How is the baseplate mounted within a control system?

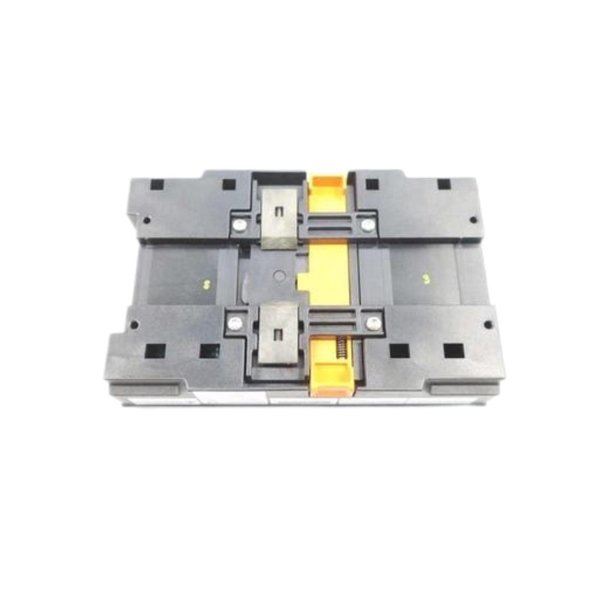

   • It can be mounted on a DIN rail or directly onto a panel, offering flexibility in installation.

7. What are the dimensions and weight of the baseplate?

   • Dimensions: 200 x 120 x 60 mm; Weight: 0.499 kg.

8. Is the baseplate compatible with all DeltaV™ systems?

   • Yes, it is designed to integrate seamlessly with DeltaV™ Electronic Marshalling systems.

9. Can different types of terminal blocks be used simultaneously on the same baseplate?

   • Yes, the design allows for mixing different terminal block types to suit various application requirements.

10. What is the warranty period for the KL4201X1-BA1 CHARM Baseplate?

    • We provide one year warranty.
