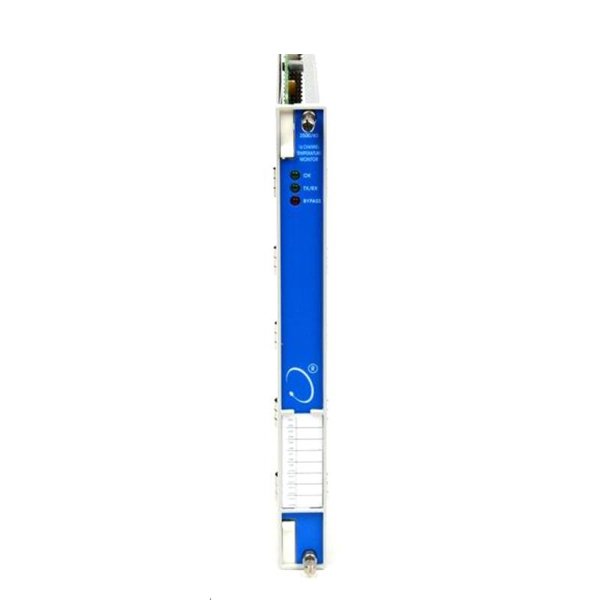

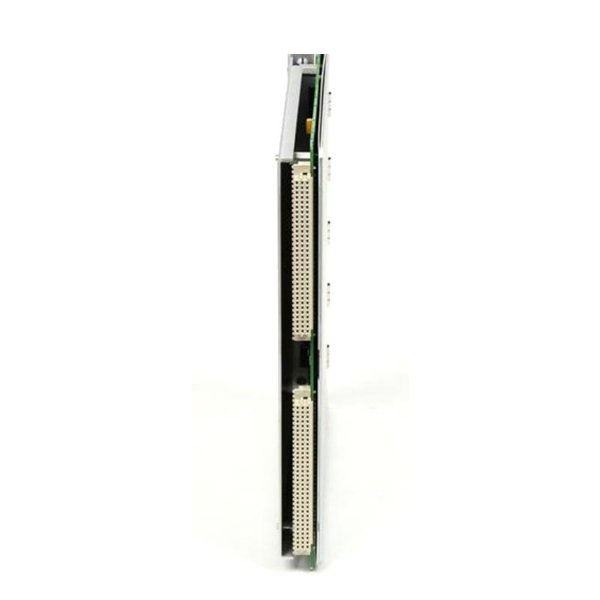

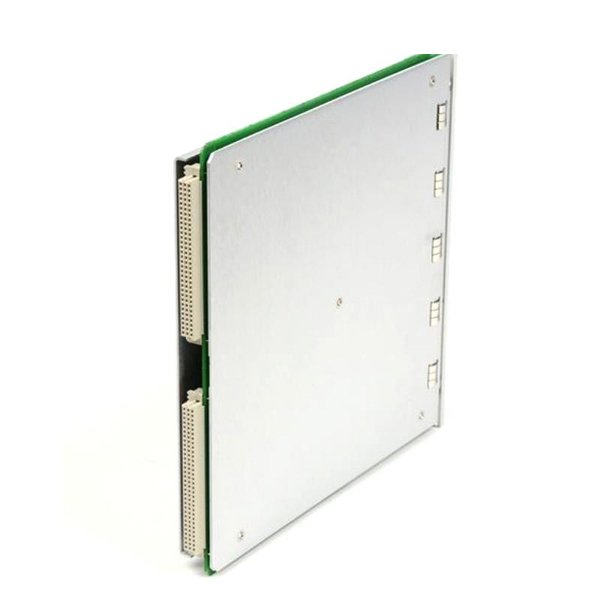

Bently Nevada 3500/65-01-01 16-channel Temperature Monitor

The Bently Nevada 3500/65-01-01 is a 16-channel temperature monitoring module that forms part of the 3500 machinery protection system. This module is designed to provide accurate, reliable, and continuous temperature measurements from multiple sensors in critical rotating machinery environments.

Capable of interfacing with RTDs and thermocouples, the 3500/65-01-01 offers comprehensive temperature monitoring crucial for early detection of abnormal operating conditions. The module integrates into the 3500 rack system, enabling centralized data collection, alarm generation, and system diagnostics for enhanced machinery protection and operational safety.

Technical Specifications

Applications

The 3500/65-01-01 Temperature Monitor is ideal for:

• Monitoring bearing temperatures in turbines and generators

• Measuring winding and structural temperatures in rotating equipment

• Temperature surveillance of compressors, pumps, and motors

• Condition monitoring in petrochemical, power generation, and industrial plants

By providing timely temperature data, this module helps avoid overheating damage and unscheduled downtime.

Advantages

• Supports simultaneous monitoring of 16 temperature points for comprehensive coverage.

• High measurement accuracy enabling early fault detection.

• Compatible with a variety of RTDs and thermocouples for flexible sensor options.

• Designed for integration within the Bently Nevada 3500 rack system for centralized control.

• Robust construction ensures reliable performance in harsh industrial environments.

• Fast response allows rapid identification of temperature anomalies.

• Contributes to reducing maintenance costs and improving machinery availability.

Frequently Asked Questions (FAQ)

1. Which temperature sensor types are compatible with this module?

   Supports RTDs such as PT100 and PT1000 as well as various thermocouples.

2. How many channels does the module support?

   It supports 16 independent temperature input channels.

3. What is the accuracy of temperature measurements?

   Typically ±0.1°C accuracy.

4. Can this module be integrated with other 3500 system modules?

   Yes, it is designed for seamless integration with the 3500 rack and system.

5. What kind of output does the module provide?

   Digital data transmission via the proprietary 3500 rack backplane.

6. What are the operating environmental conditions for the module?

   Suitable for -40°C to +85°C operating temperature and up to 95% non-condensing humidity.

7. Is the module designed for harsh industrial environments?

   Yes, it features robust construction for industrial use.

8. How much power does the module consume?

   Approximately 2.5 Watts.

9. What maintenance is required?

   Routine sensor calibration checks and periodic functional testing are recommended.

10. What is the expected operational lifetime?

    Typically more than 10 years with proper maintenance.
