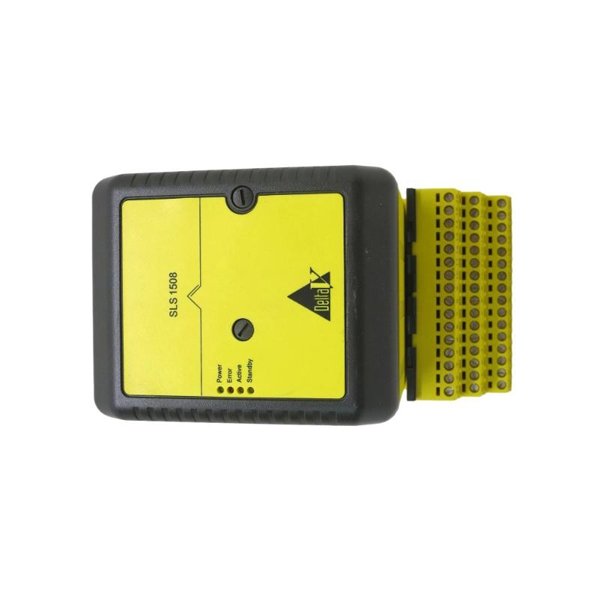

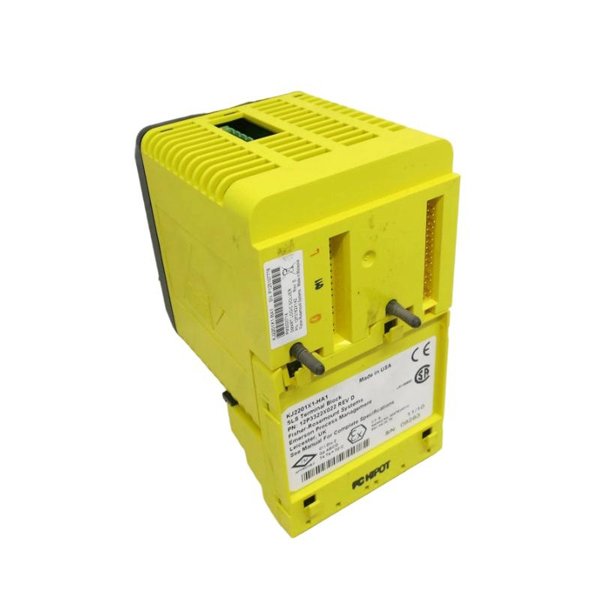

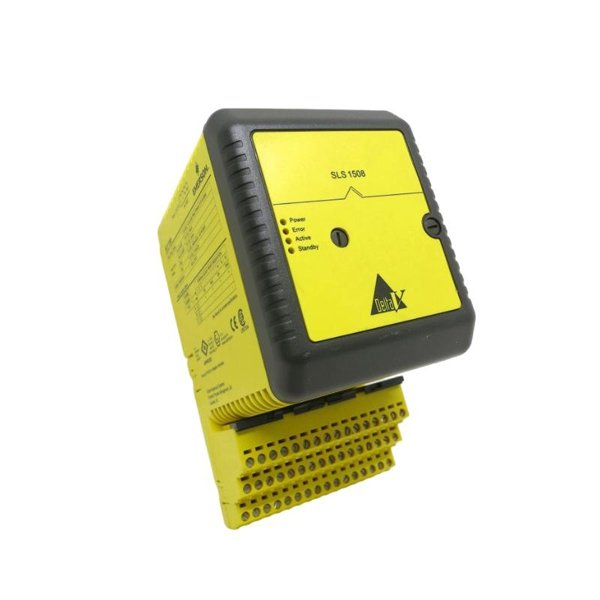

Emerson SLS1508 KJ2201X1-HA1 Smart Logic Solver

The Emerson SLS1508 KJ2201X1-HA1 Smart Logic Solver with Base is a high-integrity safety logic solver designed to meet the demanding requirements of modern Safety Instrumented Systems (SIS). Built as part of Emerson’s DeltaV SIS platform, the SLS1508 delivers powerful, deterministic safety logic execution, ensuring rapid and reliable responses to abnormal or hazardous process conditions.

This model integrates both the smart logic solver module and its dedicated base (KJ2201X1-HA1), providing an optimized solution for installation, wiring, and maintenance. By combining safety-critical processing power with flexible integration, it is suitable for a wide range of process safety applications, such as emergency shutdown (ESD), fire and gas (F&G) systems, burner management, and high-integrity protective systems.

Product Specifications

Product Applications

The SLS1508 KJ2201X1-HA1 is used across industries where safety and availability are critical.

• Emergency Shutdown Systems (ESD): Provides fast and reliable shutdown logic for critical process equipment such as compressors, reactors, and pipelines.

• Fire and Gas (F&G) Systems: Executes logic for fire detection, gas detection, and alarm/shutdown responses.

• Burner Management Systems (BMS): Ensures safe startup, operation, and shutdown of fired equipment.

• Process Interlocks: Protects equipment by enforcing safe operating limits and preventing unsafe operations.

• High-Integrity Pressure Protection Systems (HIPPS): Monitors pressure levels and initiates protective actions before relief valves are required.

• Turbine and Rotating Equipment Protection: Provides rapid trip logic for turbines, pumps, and motors under unsafe conditions.

Product Advantages

• SIL 3 Certified Safety: Meets international safety standards, ensuring compliance and confidence in critical applications.

• Fast Logic Execution: Sub-50 ms execution cycle ensures immediate reaction to process upsets.

• Redundancy Flexibility: Supports various redundant architectures to maximize system availability.

• Comprehensive Diagnostics: Advanced fault detection and automatic failover minimize downtime risks.

• Seamless Integration: Works natively with Emerson DeltaV SIS, while also supporting open protocols like Modbus.

• Compact and Robust Design: With integrated base, installation is simplified and wiring is more reliable.

• Lifecycle Support: Backed by Emerson’s global service, spares availability, and long-term product support.

FAQ

1. What safety integrity level does the SLS1508 KJ2201X1-HA1 comply with?

   It is certified for SIL 3 applications according to IEC 61508 and IEC 61511.

2. What is the typical execution time of the safety logic cycle?

   The solver executes safety logic in less than 50 milliseconds.

3. Can the SLS1508 operate in redundant configurations?

   Yes, it supports both 1oo2D and 2oo3 redundancy for high availability and fault tolerance.

4. Which communication protocols are supported for integration?

   It supports DeltaV Safety Network, Modbus, and OPC for flexible system connectivity.

5. Does the logic solver allow online modifications?

   Yes, online changes can be implemented without shutting down the system, ensuring continuous operation.

6. What diagnostic features are included in the module?

   The solver performs continuous self-checks, watchdog monitoring, memory integrity tests, and communication fault detection.

7. Can the module interface with third-party I/O systems?

   Yes, integration with external I/O is possible via Modbus communication.

8. How does the solver respond to detected internal faults?

   It transitions to a safe state and can automatically switch to a redundant module if configured.

9. What memory resources are available for safety applications?

   The device has 16 MB of non-volatile memory for safety logic and application storage.

10. What cooling method is used for the SLS1508 during operation?

    It uses natural convection cooling, eliminating the need for active cooling fans.
