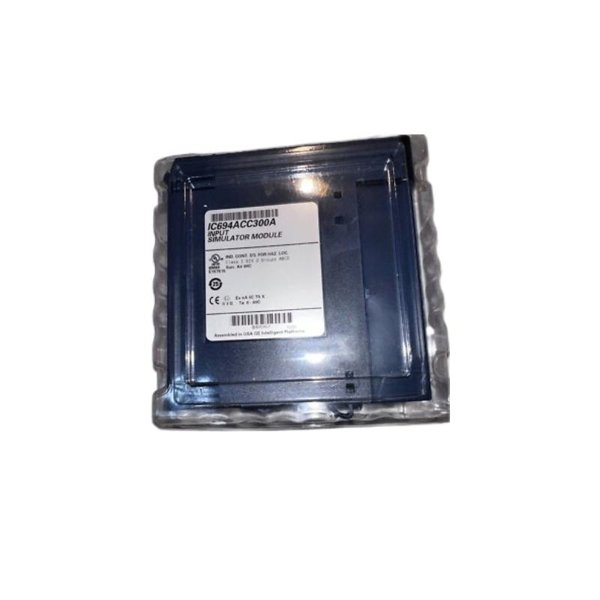

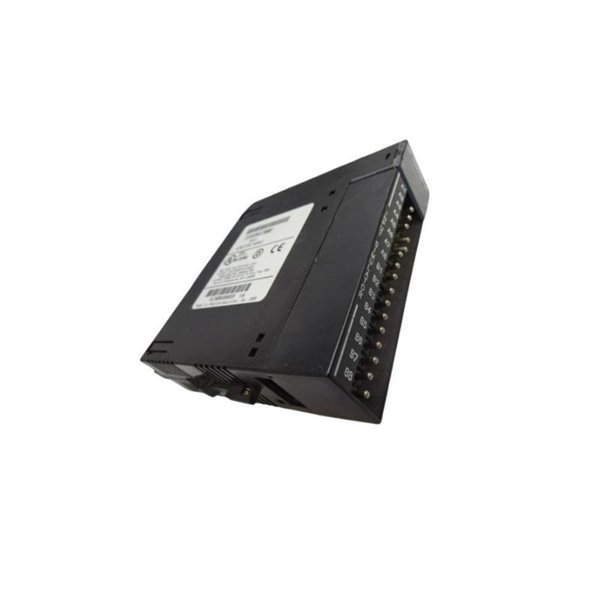

General Electric IC693ACC300 Input simulator Module

The GE IC693ACC300 is a high-performance analog output module designed for the Series 90-30 PLC by GE Fanuc. This module is engineered to deliver precise analog control signals, making it ideal for industrial automation applications. It supports voltage or current output, ensuring compatibility with a wide range of actuators, valves, and other analog-controlled devices. The module is built to withstand harsh industrial environments, offering reliability and durability.

Product Parameters

Product Applications

The IC693ACC300 is widely used in industrial automation systems where precise analog signal control is required. Key applications include:

• Process Control Systems: Regulating flow, pressure, and temperature in chemical and manufacturing plants.

• HVAC Systems: Controlling dampers, valves, and actuators in heating, ventilation, and air conditioning systems.

• Water Treatment Plants: Managing pump speeds and chemical dosing systems.

• Oil & Gas Industry: Monitoring and controlling pipeline valves and pressure regulators.

• Automotive Manufacturing: Precision control in robotic assembly lines.

Product Advantages

1. High Precision: 12-bit resolution ensures accurate analog signal output.

2. Dual-Channel Output: Supports two independent outputs for versatile control.

3. Robust Design: Built to withstand industrial environments with high noise immunity.

4. Easy Integration: Compatible with Series 90-30 PLC systems, reducing setup complexity.

5. Wide Operating Range: Functions reliably in extreme temperatures.

6. Isolated Outputs: Prevents signal interference between channels.

Frequently Asked Questions (FAQ)

1. What is the output range of the IC693ACC300?

   • It supports 0-10V DC and 4-20 mA current output.

2. How many channels does this module have?

   • It has two independent analog output channels.

3. Is the module isolated?

   • Yes, it provides 500V AC/DC isolation between channels and the bus.

4. What PLC systems is this module compatible with?

   • It is designed for GE Series 90-30 PLCs.

5. What is the resolution of the analog output?

   • It offers 12-bit resolution for precise control.

6. Can this module operate in high-temperature environments?

   • Yes, it operates within 0°C to 60°C and can withstand storage temperatures up to 85°C.

7. Does it require external power?

   • No, it draws power from the PLC backplane (1.5W typical).

8. What are the dimensions and weight of the module?

   • Dimensions: 63.5 x 130 x 40 mm, Weight: 0.3 kg.

9. Is calibration required for this module?

   • Factory-calibrated, but field recalibration may be needed over time.

10. Can it be used in hazardous environments?

    • Not intrinsically safe; additional protection may be required for hazardous areas.
