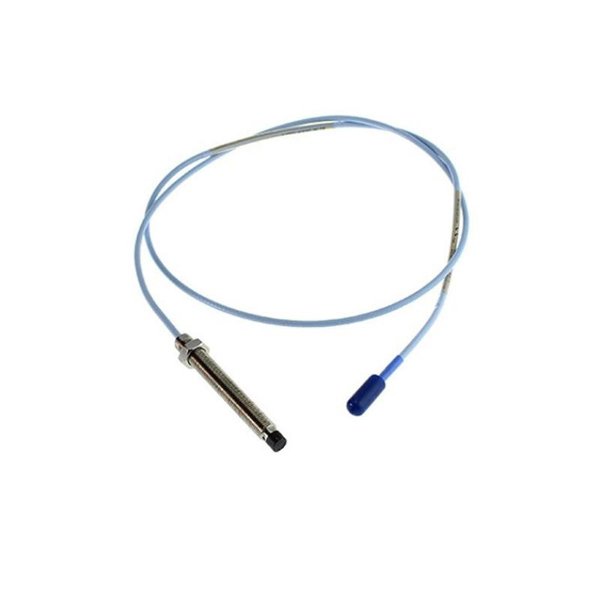

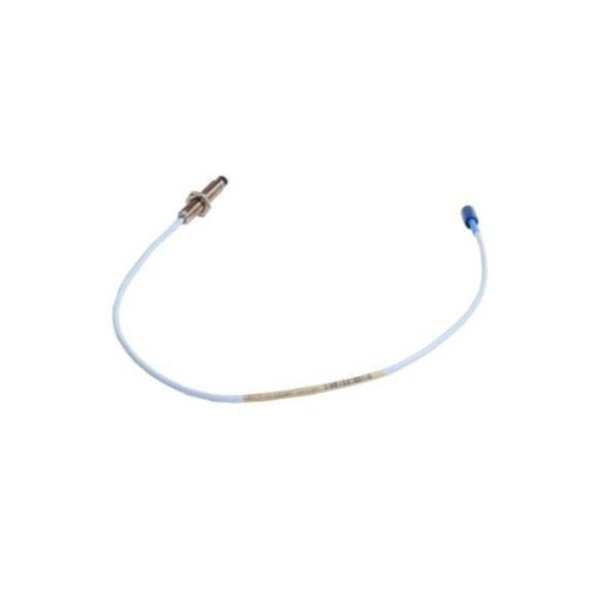

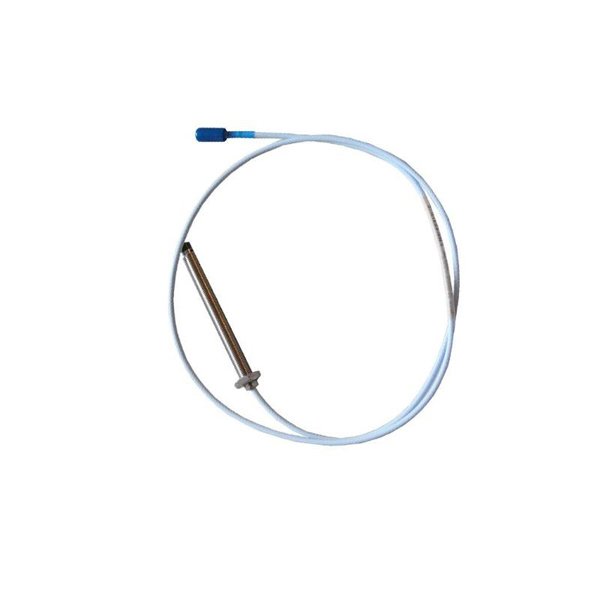

Bently Nevada 330104-12-22-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-12-22-10-02-00 is a high-precision 8 mm proximity probe from the 3300 XL series. This series is specifically designed to provide real-time, accurate monitoring of shaft displacement and vibration in rotating machinery. The 330104-12-22-10-02-00 model offers precise measurements to detect early warning signs of mechanical issues such as misalignment, imbalance, bearing wear, and excessive vibration, enabling operators to perform predictive maintenance and avoid costly machinery breakdowns.

This proximity probe has a total length of 1.0 meters and weighs 0.323 kg, making it suitable for a variety of applications across different industries. It is engineered to withstand harsh industrial environments, providing accurate data even in challenging conditions. The 3300 XL series is widely recognized for its durability, reliability, and ease of integration into Bently Nevada’s machinery protection systems.

Technical Parameters

Product Applications

The Bently Nevada 330104-12-22-10-02-00 3300 XL proximity probe is used in various applications across industries that require continuous monitoring of rotating equipment. Some of the key applications include:

1. Turbine and Compressor Monitoring: This proximity probe is ideal for monitoring the condition of turbines and compressors in power plants and other industrial facilities, helping prevent issues related to misalignment and imbalance.

2. Pumps and Motors: The probe is frequently used in applications involving pumps, motors, and other rotating machinery, providing real-time data on mechanical faults such as bearing wear and shaft misalignment.

3. Power Generation: In power generation plants, the 330104-12-22-10-02-00 probe is employed to monitor key machinery, such as turbines and generators, reducing the risk of unexpected breakdowns and extending equipment lifespan.

4. Oil and Gas Industry: The probe is widely used in offshore rigs, refineries, and chemical plants for monitoring the condition of pumps, compressors, and other critical rotating equipment in harsh environments.

5. Manufacturing and Chemical Processing: The 330104-12-22-10-02-00 is also used in manufacturing plants and chemical processing facilities, helping to ensure that large rotating machinery runs efficiently and without unexpected failures.

6. HVAC Systems and Industrial Fans: This proximity probe is ideal for monitoring HVAC systems, large industrial fans, and other rotating equipment where imbalances and misalignments can result in inefficiencies or mechanical failures.

Advantages

1. High Precision: The 330104-12-22-10-02-00 proximity probe delivers ±0.5 μm accuracy, providing extremely precise displacement measurements critical for early fault detection.

2. Durability in Harsh Environments: Built with stainless steel, the probe is resistant to corrosion and designed to withstand tough industrial conditions, ensuring long-lasting performance.

3. IP68 Rating: With an IP68 rating, this probe is both dustproof and waterproof, making it suitable for use in dirty or wet environments where other probes might fail.

4. Wide Temperature Range: The probe operates within a broad temperature range of -40°C to 121°C, making it versatile for use in both extreme hot and cold conditions.

5. Low Power Consumption: The 330104-12-22-10-02-00 requires just 24 V DC for operation, allowing it to be integrated into low-power systems for continuous monitoring.

6. Compact and Lightweight: With a 1.0-meter total length and a weight of 0.323 kg, the probe is easy to install in tight spaces and does not add significant weight to the machinery.

7. Early Fault Detection: The high sensitivity of the probe enables early detection of mechanical faults, preventing failures and reducing the risk of unplanned downtime.

8. Easy Integration: The 3300 XL series probes integrate seamlessly into Bently Nevada’s machinery protection systems, making it simple to deploy in existing setups for real-time monitoring.

Frequently Asked Questions (FAQ)

1. What is the diameter of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The probe has a diameter of 8 mm.

2. What is the total length of the proximity probe?

   • The total length of the probe is 1.0 meters.

3. What is the weight of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The weight of the probe is 0.323 kg.

4. What is the frequency range of the proximity probe?

   • The frequency range is 0-200 kHz.

5. What material is the probe made of?

   • The probe is made from stainless steel, ensuring durability and resistance to corrosion.

6. What is the accuracy of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The probe provides ±0.5 μm accuracy.

7. What is the operating temperature range of the 3300 XL 8 mm proximity probe?

   • The operating temperature range is from -40°C to 121°C.

8. What power supply does the Bently Nevada 3300 XL 8 mm proximity probe require?

   • The probe requires 24 V DC for operation.

9. Is the 3300 XL 8 mm proximity probe suitable for use in harsh environments?

   • Yes, the probe has an IP68 rating, which makes it both dustproof and waterproof.

10. What industries can benefit from the 3300 XL 8 mm proximity probe?

    • The probe is ideal for industries such as power generation, oil and gas, chemical manufacturing, HVAC, and industrial fans.
