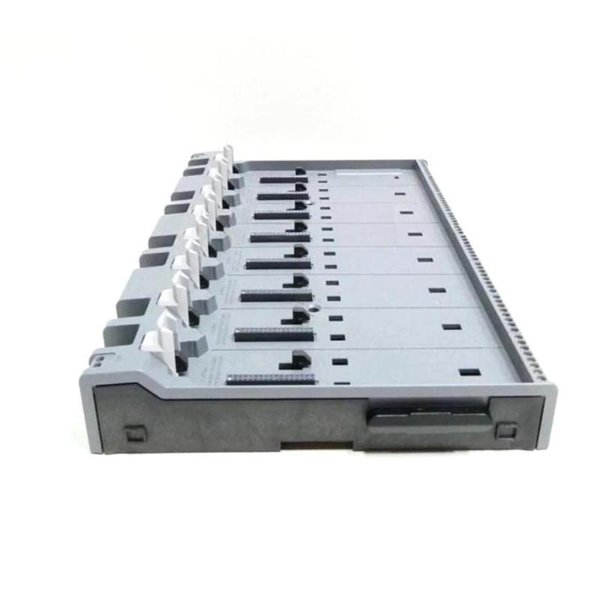

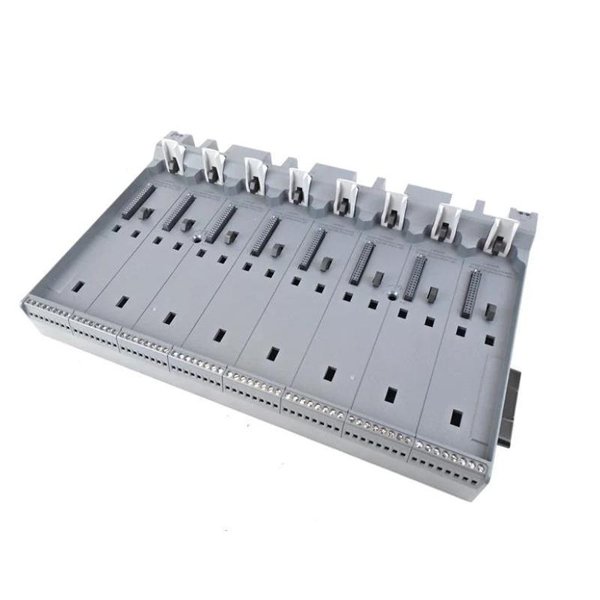

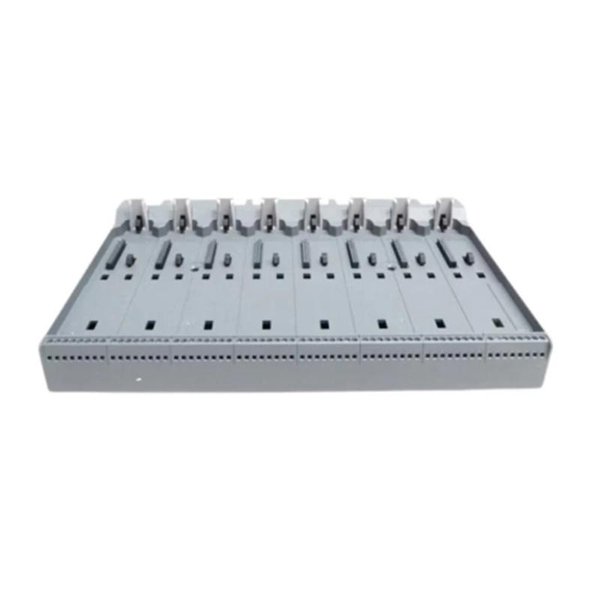

Emerson SE4059E0C0 8-Wide I/O Interface Carrier

The Emerson SE4059E0C0 8-Wide I/O Interface Carrier is a modular hardware component designed for DeltaV control systems. It serves as a foundation for installing and interconnecting multiple I/O modules within a distributed control architecture. By supporting up to eight I/O modules in a single carrier, it provides a scalable and organized structure for efficient signal distribution, communication, and power management across the control platform. This carrier is particularly valued in environments where high-density I/O integration and system reliability are critical.

Product Parameters

Product Applications

• Oil & Gas – Supporting field instrumentation and process automation.

• Power Generation – Providing robust I/O handling for turbines, boilers, and balance of plant equipment.

• Chemical Processing – Managing high-density input/output requirements for batch and continuous processes.

• Pharmaceuticals – Ensuring compliant and traceable control system integration.

• Water & Wastewater – Reliable handling of distributed process signals.

Product Advantages

• High-Density Support – Accommodates up to 8 I/O modules within a compact footprint.

• Reliable Signal Handling – Designed to maintain integrity across analog, digital, and specialty I/O signals.

• Simplified Installation – Modular architecture reduces wiring complexity and installation time.

• Scalable Architecture – Supports incremental system expansion without major hardware replacement.

• DeltaV Native Compatibility – Seamless integration with Emerson’s DeltaV control platform ensures long-term operational stability.

• Robust Design – Lightweight yet durable construction optimized for demanding industrial conditions.

FAQ

Q1: What type of I/O modules can be installed in the SE4059E0C0 carrier?

A1: It supports a full range of DeltaV I/O modules, including discrete, analog, HART-enabled, and specialty cards.

Q2: How does the carrier distribute power to the I/O modules?

A2: The carrier includes an integrated power bus that delivers regulated supply voltage to each installed module.

Q3: Is the carrier hot-swappable with modules installed?

A3: Yes, supported modules can typically be replaced or added without shutting down the entire system, depending on configuration.

Q4: How does the carrier ensure signal integrity across multiple modules?

A4: It uses shielded backplane connectors and optimized grounding paths to minimize noise and crosstalk.

Q5: Can this carrier be used in redundant system architectures?

A5: Yes, it supports redundant configurations when paired with redundant I/O modules and appropriate system design.

Q6: What communication protocol does the carrier support?

A6: It enables DeltaV-native communication over the backplane, ensuring direct system integration.

Q7: How does the carrier handle fault isolation?

A7: Each module slot is electrically isolated, ensuring that a single module fault does not propagate to others.

Q8: Can the SE4059E0C0 be mixed with other carrier types in the same rack?

A8: Yes, as long as system configuration guidelines are followed, different carriers can be combined in the same enclosure.

Q9: What is the maximum current capacity of the power bus in the carrier?

A9: The carrier is engineered to deliver sufficient current for eight fully loaded I/O modules without derating under standard conditions.

Q10: Is there built-in diagnostic capability at the carrier level?

A10: The carrier itself is passive, but it supports module-level diagnostics that integrate with the DeltaV system’s monitoring tools.
