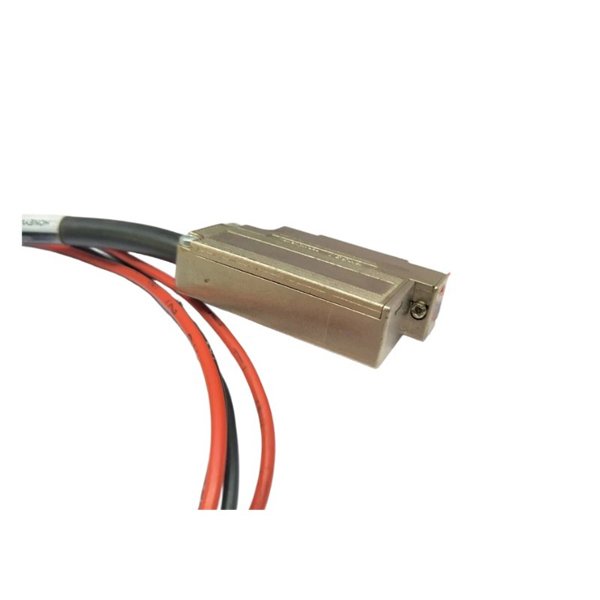

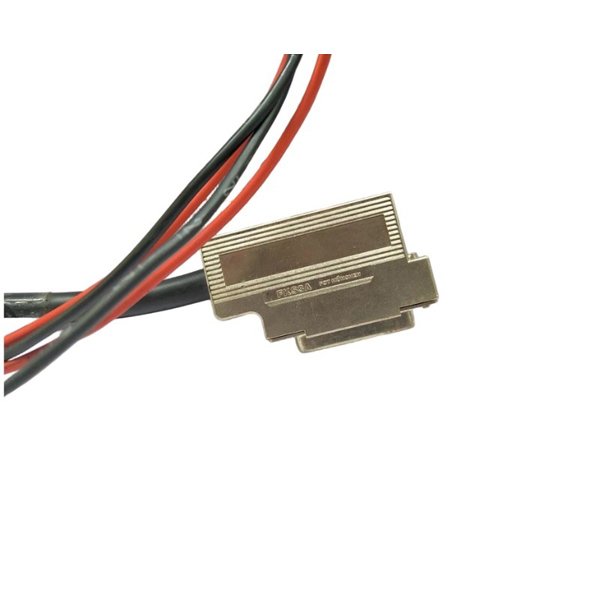

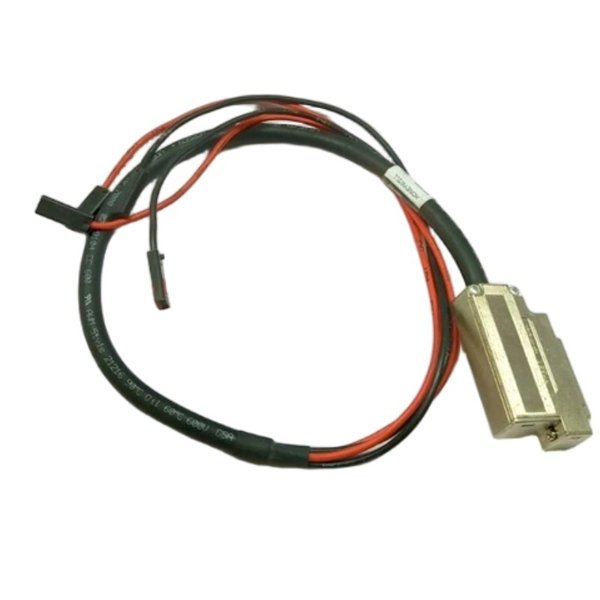

Honeywell FS-PDC-IOEPx Power Distributer Cable

This module serves the purpose of distributing power to multiple I/O modules from a central power source. It ensures stable power delivery and isolation in a fail-safe architecture, supporting redundancy and high availability requirements. Engineered with robust connectors and backplane interfaces, the FS-PDC-IOEPx provides secure, compact, and efficient power handling capabilities.

Technical Specifications

Product Applications

The FS-PDC-IOEPx module is purpose-built for safety-critical environments where stable and fail-safe power distribution is essential. It is widely deployed in the following applications:

• Emergency Shutdown Systems (ESD)

• Burner Management Systems (BMS)

• High Integrity Pressure Protection Systems (HIPPS)

• Turbine Control Systems

• Boiler and Furnace Safety Systems

• Oil & Gas Platforms (Offshore and Onshore)

• Chemical and Petrochemical Plants

• Power Plant Safety Instrumented Systems

Its ability to maintain power delivery in the event of partial system failures makes it an integral component of any SIL-rated safety architecture.

Product Advantages

• Fail-Safe Design: Compliant with SIL3 safety requirements, making it suitable for the most critical industrial systems.

• Redundancy Support: Facilitates dual power path configurations to ensure system availability during power source failure.

• High Reliability: Engineered using industrial-grade materials and connectors for maximum durability in harsh conditions.

• Compact Footprint: Optimized physical size ensures minimal panel space usage while supporting extensive wiring needs.

• Modular Integration: Seamlessly integrates with other FSC modules and I/O systems for easy expansion and maintenance.

• Easy Maintenance: Plug-and-play connectors and accessible terminal blocks support fast field replacement and diagnostics.

• Industrial Compliance: Conforms to major industrial standards including CE, ATEX, and IEC 61508.

FAQ

Q1: What is the primary function of the FS-PDC-IOEPx module?

A1: The FS-PDC-IOEPx is used for distributing power to I/O modules in Honeywell FSC safety systems while supporting redundancy and protection features.

Q2: Can this module be used in a redundant power configuration?

A2: Yes, it fully supports dual power inputs for redundancy to enhance system availability.

Q3: Is the FS-PDC-IOEPx hot-swappable?

A3: No, power distribution modules should not be hot-swapped. Power must be removed before replacing the module.

Q4: What certifications does the module comply with?

A4: It complies with CE marking, ATEX directives for hazardous areas, and IEC61508 (SIL3) standards.

Q5: How many I/O modules can one FS-PDC-IOEPx support?

A5: The number depends on the power load of each I/O module, but typically supports multiple modules within current capacity.

Q6: What kind of protection is included in the module?

A6: It includes overcurrent and reverse polarity protection to prevent power supply damage or system faults.

Q7: What is the mounting method for this module?

A7: The FS-PDC-IOEPx can be DIN rail mounted or connected via the system backplane.

Q8: Can it operate in high-humidity environments?

A8: Yes, it supports up to 95% non-condensing relative humidity.

Q9: Is this module suitable for offshore oil and gas platforms?

A9: Absolutely. It is designed to handle harsh and explosive-prone environments such as offshore platforms.

Q10: Does the module require active cooling?

A10: No, it is passively cooled via natural air convection and does not require fans or special airflow designs.
