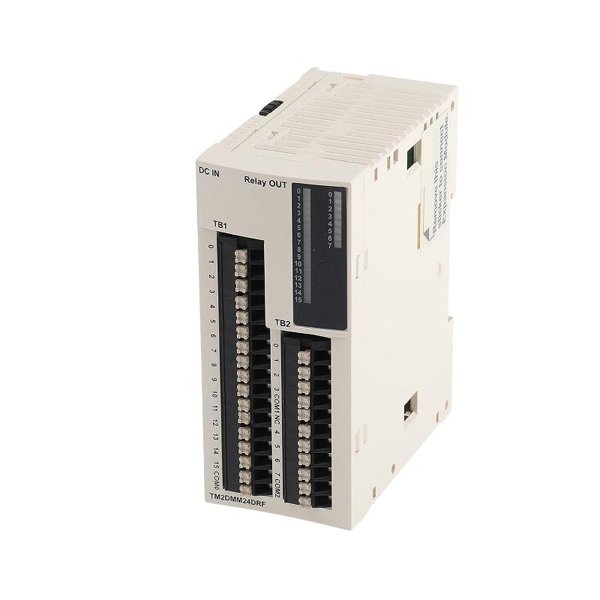

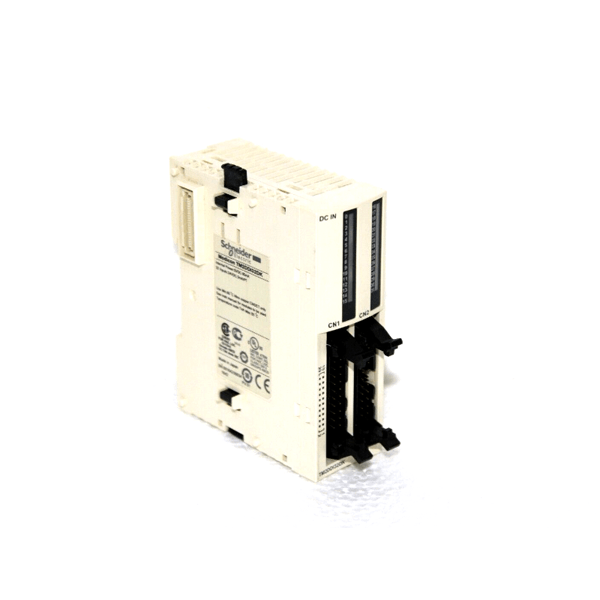

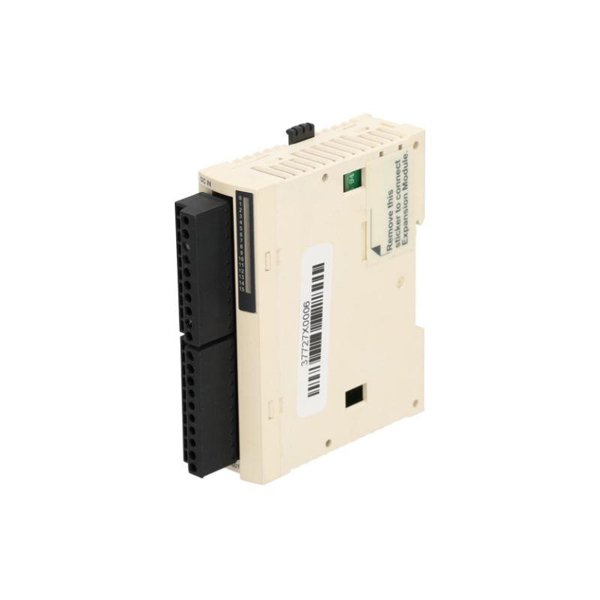

Schneider TM2DMM240RF Discrete I/O Modules
Manufacturer:Schneider
Product Number:TM2DMM240RF
Condition:Discrete I/O modules
Origin:France
Dimensions:90x 70x 42.9mm
Weight:0.14kg
Views:23
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider TM2DMM240RF is a high-performance digital mixed module designed for industrial automation applications. It is part of Schneider Electric’s TM2 modular I/O system, which offers flexibility and reliability for machine control and process automation. This module combines analog and digital functionalities, making it ideal for complex control systems where space and efficiency are critical.
The TM2DMM240RF is engineered to meet rigorous industrial standards, ensuring durability and consistent performance in harsh environments. Its compact design and easy integration with other TM2 modules make it a preferred choice for engineers and system integrators.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Type | Digital Mixed Module |
| Input Channels | 16 digital inputs (24V DC) |
| Output Channels | 8 digital outputs (24V DC, 0.5A) |
| Analog Channels | 4 analog inputs (0-10V, 4-20mA) |
| Communication | Modbus RTU, RS-485 |
| Power Supply | 24V DC (±10%) |
| Operating Temp. | -25°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 90x 70x 42.9mm |
| Weight | 0.14kg |
| Protection Rating | IP20 |
| Certifications | CE, UL, cUL |
Product Applications
The TM2DMM240RF is widely used in industrial automation scenarios, including:
-
Manufacturing Lines: For controlling sensors, actuators, and motors.
-
Process Automation: Monitoring and regulating analog signals in chemical or food processing.
-
HVAC Systems: Managing temperature and pressure inputs.
-
Material Handling: Integrating with conveyor systems and robotic arms.
-
Energy Management: Monitoring power consumption and load distribution.
Product Advantages
-
Versatility: Combines digital and analog I/O in a single module, reducing hardware complexity.
-
Compact Design: Saves panel space while offering high channel density.
-
Robust Construction: Built to withstand industrial environments with wide temperature tolerance.
-
Easy Integration: Compatible with Schneider’s Modicon M221/M241 PLCs and other TM2 modules.
-
Cost-Effective: Reduces wiring and installation costs due to modularity.
-
Reliable Communication: RS-485 support ensures stable data transmission in noisy environments.
FAQ (Frequently Asked Questions)
-
What is the maximum current per digital output?
Each output supports up to 0.5A.
-
Can this module be used with non-Schneider PLCs?
Yes, if the PLC supports Modbus RTU protocol.
-
Is the analog input configurable for voltage or current?
Yes, it accepts both 0-10V and 4-20mA signals.
-
What is the response time for digital inputs?
Typically <1ms.
-
Does it support daisy-chaining for multiple modules?
Yes, via RS-485 communication.
-
What is the power consumption of the module?
Approximately 5W under full load.
-
Is there software required for configuration?
Yes, Schneider’s EcoStruxure Machine Expert is recommended.
-
Can it operate in high-vibration environments?
Yes, it meets IEC 60068-2-6 vibration standards.
-
Are the analog inputs isolated?
No, they share a common ground.
-
What is the warranty period?
Standard 1-year warranty from Schneider Electric.
