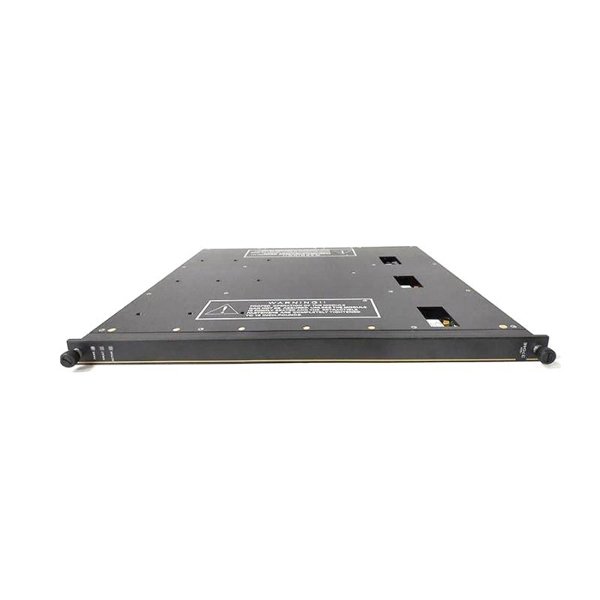

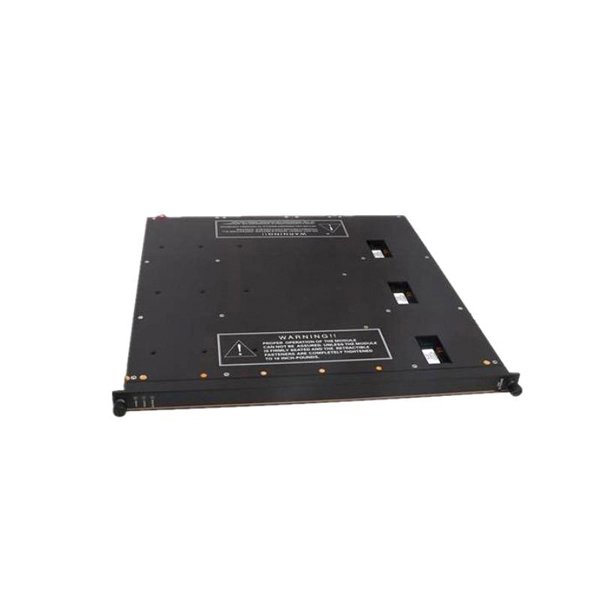

Triconex 3704E Analog Input Module

The Triconex 3704E Analog Input Module is an advanced industrial control module designed to provide high-precision analog signal acquisition in safety-critical applications. This module is a crucial component of the Triconex Tricon safety system, which is widely recognized for its reliability and fault-tolerant design. It is engineered to handle demanding environments, ensuring optimal performance in sectors such as oil and gas, power generation, and chemical processing.

The 3704E module features a triple-redundant architecture, which enhances system safety by providing continuous monitoring and fault detection. With its robust design, this module offers superior resistance to electrical noise,

temperature variations, and harsh operating conditions.

Product Specifications

The technical specifications of the Triconex 3704E Analog Input Module are outlined in the following table:

Product Applications

The Triconex 3704E Analog Input Module is widely used in industries that require highly reliable and safe data acquisition systems. Some key application areas include:

1. Oil & Gas Industry – Used in offshore and onshore platforms for monitoring pressure, temperature, and flow parameters.

2. Power Plants – Ensures safe operation by collecting and analyzing analog signals from generators, turbines, and transformers.

3. Chemical Processing – Provides accurate data acquisition for chemical reactions, pressure control, and process optimization.

4. Petrochemical Industry – Monitors and controls critical processes in refining and gas processing plants.

5. Water Treatment Plants – Ensures reliable monitoring of water quality, pH levels, and other parameters.

6. Manufacturing & Automation – Used for precision control and monitoring in large-scale production lines.

7. Pharmaceutical Industry – Guarantees accuracy in temperature and pressure control for drug manufacturing.

8. Nuclear Facilities – Provides fail-safe operation in radiation monitoring and safety systems.

Product Advantages

The Triconex 3704E Analog Input Module offers several key benefits:

1. Triple Modular Redundancy (TMR) – Ensures high availability and fault tolerance.

2. High Accuracy & Resolution – Provides precise data acquisition with a 12-bit resolution and ±0.1% full-scale accuracy.

3. Rugged & Reliable Design – Engineered to operate in extreme environments with high vibration, temperature variations, and electrical noise resistance.

4. Fast Response Time – 10ms update rate per channel ensures real-time data acquisition.

5. Easy Integration – Seamlessly integrates into Triconex safety systems for process automation.

6. Extended Operating Temperature Range – Performs well in harsh industrial settings.

7. Built-in Diagnostics – Detects and isolates faults in real-time to maintain system reliability.

8. Proven Safety Record – Widely used in mission-critical applications across multiple industries.

FAQ (Frequently Asked Questions)

1. What is the primary function of the Triconex 3704E Analog Input Module?

   • It is used for high-precision analog signal acquisition in safety-critical environments.

2. What input ranges does the 3704E module support?

   • It supports 0-5V, 1-5V, 0-10V, ±10V, and 4-20mA input signals.

3. What is the resolution of the 3704E module?

   • It has a 12-bit resolution for accurate data acquisition.

4. Can this module be used in hazardous environments?

   • Yes, it is designed for use in oil & gas, power plants, and chemical industries with high safety requirements.

5. What communication protocol does the module use?

   • It communicates via the Tricon System Bus.

6. Does the module support redundancy?

   • Yes, it features Triple Modular Redundancy (TMR) for maximum reliability.

7. What is the operating temperature range of the Triconex 3704E?

   • It operates between -20°C to 70°C (-4°F to 158°F).

8. What is the weight of the module?

   • The module weighs 1.29 kg.

9. Is the module compatible with legacy Triconex systems?

   • Yes, it integrates seamlessly with existing Triconex Tricon safety systems.

10. How often does the module update input data?

• It has an update rate of 10ms per channel.
