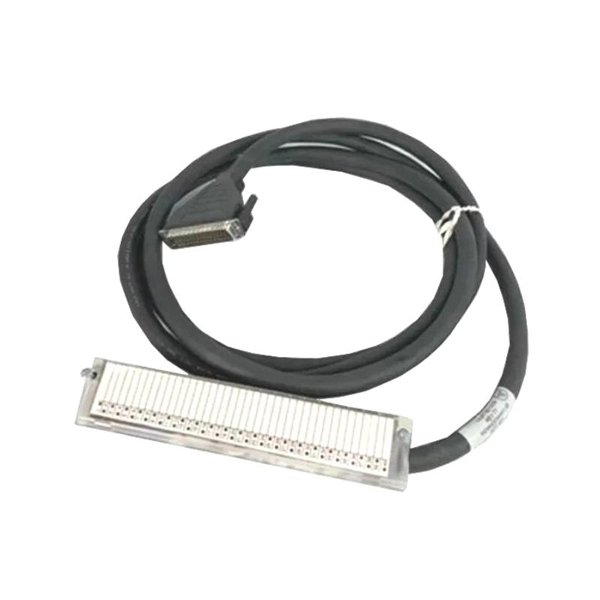

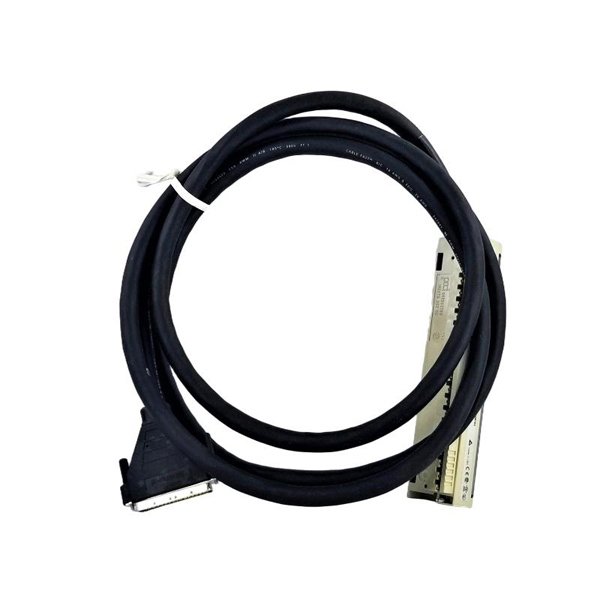

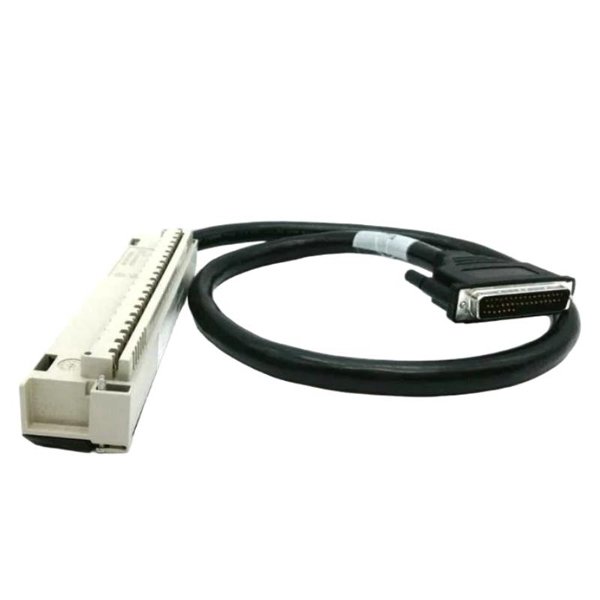

Schneider 140XTS01209 CableFast System Cable

The Schneider 140XTS01209 CableFast System Cable is a high-performance industrial-grade communication cable tailored specifically for Schneider Electric’s Modicon Quantum I/O system. With a 2.7-meter pre-terminated cable length, this product is part of the CableFast wiring system — a modular cabling solution designed to drastically reduce panel wiring time, improve connectivity reliability, and maintain clean, organized control system layouts.

The 140XTS01209 model integrates seamlessly with I/O base modules and remote interface connectors, offering robust signal transmission, electromagnetic shielding, and a plug-and-play design ideal for complex automation architectures. It is engineered for environments where high-speed and dependable communication between I/O modules is essential.

Technical Specifications

Applications

The 140XTS01209 CableFast cable is designed for mission-critical industrial applications requiring clean, fast, and reliable system wiring. Its applications include:

• Manufacturing Plants

  Enables quick installation and wiring integrity for modular PLC-based control systems.

• Oil & Gas Processing

  Withstands industrial environments with high electrical interference.

• Water and Wastewater Facilities

  Used for modular control cabinet installations and remote I/O communication.

• Power Generation

  Connects automation modules in turbine control, switchgear, and auxiliary equipment.

• Pharmaceutical & Food Industries

  Supports GMP-compliant control system installations with minimal wiring clutter.

• Automotive Assembly Lines

  Enhances efficiency in rapidly changing, scalable production environments.

Advantages

• Pre-terminated Convenience

  Reduces on-site wiring effort, improves consistency, and shortens commissioning time.

• High Signal Integrity

  EMI shielding ensures interference-free signal transmission in harsh industrial settings.

• Robust and Durable

  Engineered with durable materials to resist mechanical wear, vibration, and chemicals.

• Reduced Downtime

  Fast replacement and modular connection improve maintenance cycles and reduce shutdowns.

• Standardized Length

  The 2.7m length is ideal for most cabinet-to-I/O module routing, eliminating excess cabling.

• Certified Quality

  Complies with international electrical and safety standards for industrial environments.

Frequently Asked Questions (FAQ)

1. What is the 140XTS01209 cable used for?

It is used for connecting Modicon Quantum I/O modules via the CableFast system in a plug-and-play manner.

2. Can this cable transmit both analog and digital signals?

Yes, the cable supports both analog and digital signals depending on the module configuration.

3. How long is the cable?

This specific model is 2.7 meters (8.9 feet) in length.

4. Is the cable shielded against interference?

Yes, it features dual EMI shielding (foil and braid) for robust signal protection.

5. Is this cable reusable for different configurations?

It is pre-terminated and factory-tested, so reuse is not recommended unless using it with the same configuration.

6. Does it require any specific installation tools?

No, the cable is plug-and-play with factory-installed connectors.

7. Can it be used in high-vibration environments?

Yes, it is built with durable shielding and industrial-grade construction for harsh environments.

8. What kind of connectors are used at the ends?

The cable comes with pre-fitted CableFast system connectors designed for Quantum I/O modules.

9. Does the cable comply with global safety standards?

Yes, it meets CE, RoHS, and UL standards for electrical safety and environmental compliance.

10. What is the minimum bending radius of the cable?

It is recommended to maintain a bend radius of at least 5x the cable diameter (~60 mm).
