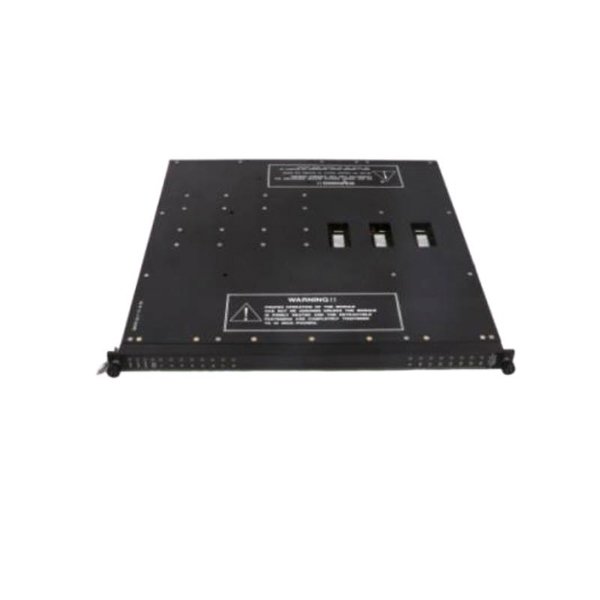

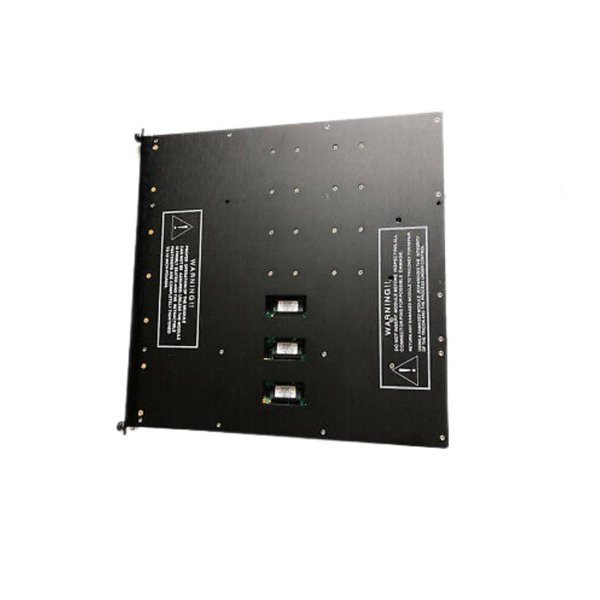

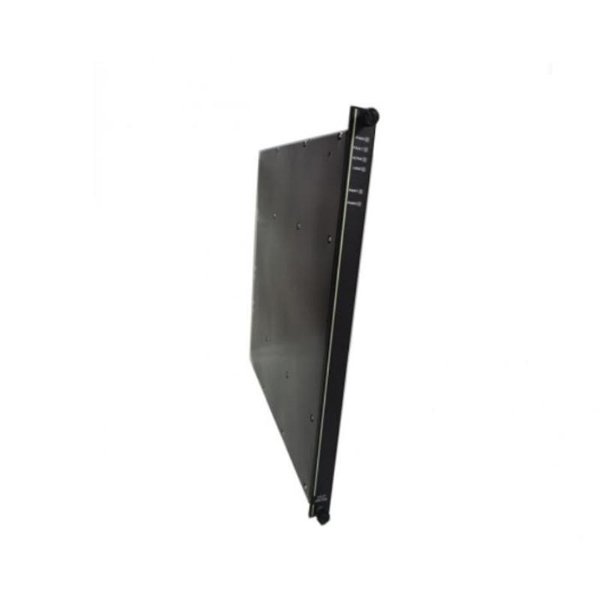

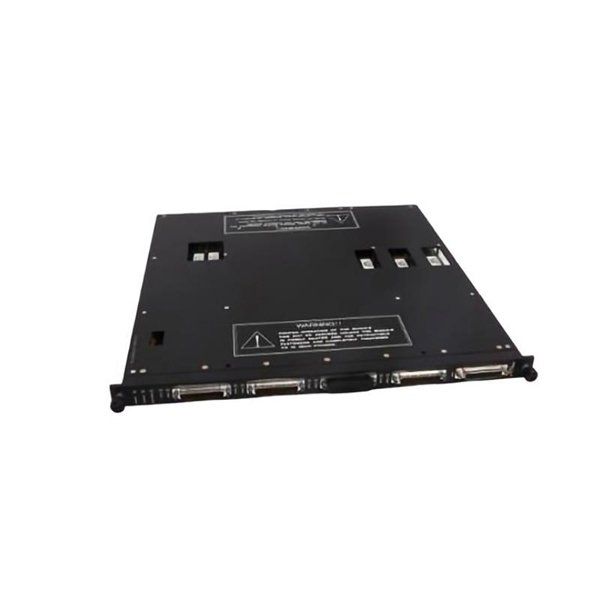

Triconex 3601E Digital Output Module

The Triconex 3601E Digital Output Module is a high-performance, safety-rated output module designed for use in Tricon systems. As part of the Triconex family, this module is engineered to deliver fault-tolerant, reliable, and safe control outputs for critical industrial processes. The 3601E module is used in environments where high safety integrity is paramount, such as oil & gas, chemical processing, power generation, and other mission-critical industrial operations.

The module operates within the Tricon platform, which is widely recognized for its ability to prevent accidents and ensure operational safety through advanced features and high-reliability standards. Its ability to convert control signals into actionable outputs, driving devices such as valves, actuators, and safety systems, is essential for both routine process operations and emergency shutdown (ESD) systems.

With its robust design and versatility, the Triconex 3601E ensures that safety-critical processes remain under control, even in the event of faults or errors, supporting industry safety standards such as IEC 61508 and IEC 61511.

Product Specifications

Below are the key specifications for the Triconex 3601E Digital Output Module:

Product Applications

The Triconex 3601E Digital Output Module is deployed in various applications that require precise and safe control of output devices. Its features make it suitable for use in industries where system uptime and safety are critical.

1. Safety Instrumented Systems (SIS): In safety instrumented systems, the 3601E module plays a vital role in activating shutdowns or alarms, ensuring safe operation even under fault conditions.

2. Emergency Shutdown Systems (ESD): The 3601E is widely used in process industries to control emergency shutdown operations. It reliably triggers actuators and emergency equipment to halt dangerous processes, preventing catastrophic failures.

3. Process Control: In process automation systems, the module handles outputs that control valves, motors, and other field devices in complex industrial processes.

4. Machine Safety: In critical machine control applications, the 3601E ensures that all safety devices and machines operate within safe parameters, preventing accidents and downtime.

5. Control of Actuators and Valves: The module is employed to control actuators and valves, triggering precise, on/off output signals for devices essential to industrial processes.

6. Control of Alarms and Indicators: The 3601E can drive alarm systems and visual or audible indicators to signal abnormal process conditions, maintaining a safe working environment.

Product Advantages

The Triconex 3601E Digital Output Module provides numerous advantages for high-reliability, safety-critical applications:

1. High Reliability: The module is designed to ensure fault tolerance and high availability, making it suitable for systems that demand continuous and safe operation.

2. Safety Compliance: The 3601E meets international safety standards, such as IEC 61508 and IEC 61511, ensuring that the module is fully compliant for use in safety-critical applications.

3. Fast Response Time: With a response time of ≤ 10 ms, the 3601E offers rapid output control, ensuring that the system responds quickly to changing process conditions.

4. Flexible Output Configuration: The 3601E offers 16 individually configurable output channels, allowing users to customize their system based on specific application requirements.

5. Wide Operating Temperature Range: The module operates in extreme conditions, from -40°C to +70°C, making it suitable for a wide variety of environments, from freezing cold to hot industrial settings.

6. Compact and Efficient Design: With a compact size (140 x 140 x 32 mm) and low power consumption (1.5 W), the module is energy-efficient and easy to integrate into control systems.

7. Shock and Vibration Resistance: The 3601E is built to withstand harsh industrial environments with its shock resistance (15g) and vibration resistance (2g), ensuring robust performance.

8. DIN Rail Mountable: The module’s DIN rail mounting design simplifies installation, making it easy to integrate into existing control panels and systems.

9. Certifications and Approvals: The module is UL, CE, CSA, FM, and ATEX certified, confirming that it meets global safety and environmental standards for industrial use.

10. Cost-Effective: The 3601E offers a cost-effective solution for digital output control in safety-critical systems, providing high reliability at a competitive price point.

FAQ

1. What is the primary function of the Triconex 3601E module?

   • The Triconex 3601E is used to convert control signals into digital output signals that drive actuators, valves, alarms, and other devices in safety-critical applications.

2. How many output channels does the Triconex 3601E module have?

   • The 3601E has 16 individually configurable output channels.

3. What is the voltage rating for the 3601E output?

   • The module operates with a 24V DC output voltage (nominal).

4. What is the maximum current per output channel?

   • The maximum current per output channel is 0.5 A.

5. What is the response time of the 3601E module?

   • The module offers a fast response time of ≤ 10 ms.

6. What temperature range can the Triconex 3601E module operate in?

   • The module has an operating temperature range of -40°C to +70°C.

7. Is the Triconex 3601E certified for safety standards?

   • Yes, the module is certified to meet IEC 61508, IEC 61511, and other international safety standards.

8. What is the power consumption of the 3601E module?

   • The 3601E has a power consumption of 1.5 W.

9. What is the size of the Triconex 3601E module?

   • The module has dimensions of 140 x 140 x 32 mm.

10. What certifications does the Triconex 3601E module have?

• The module is certified by UL, CE, CSA, FM, and ATEX for safety and operational standards.
