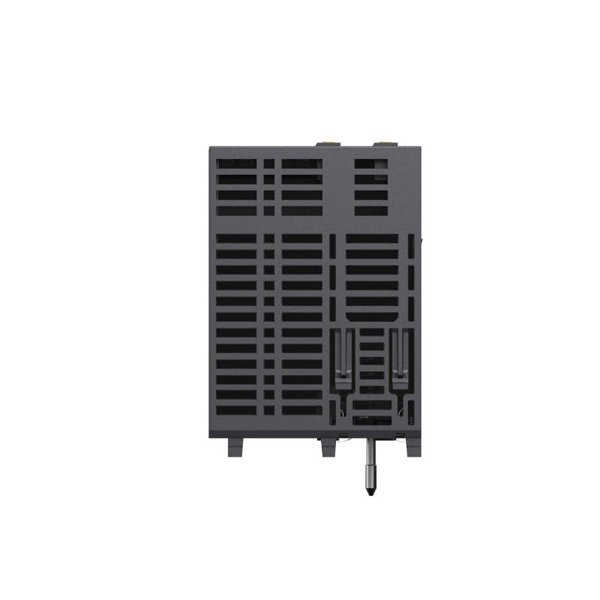

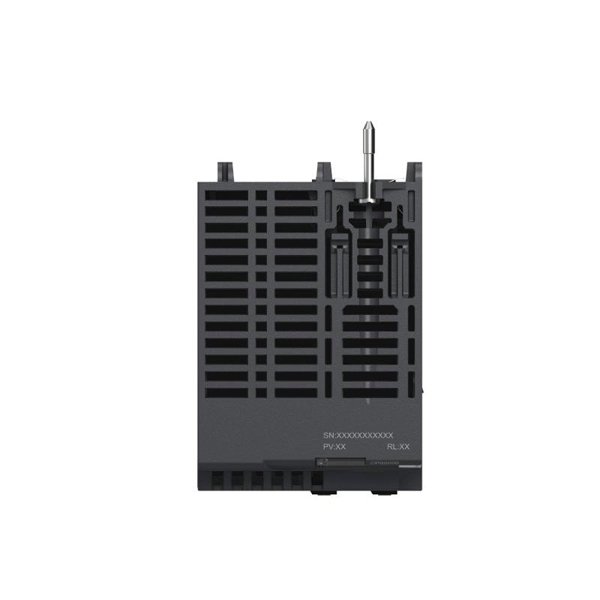

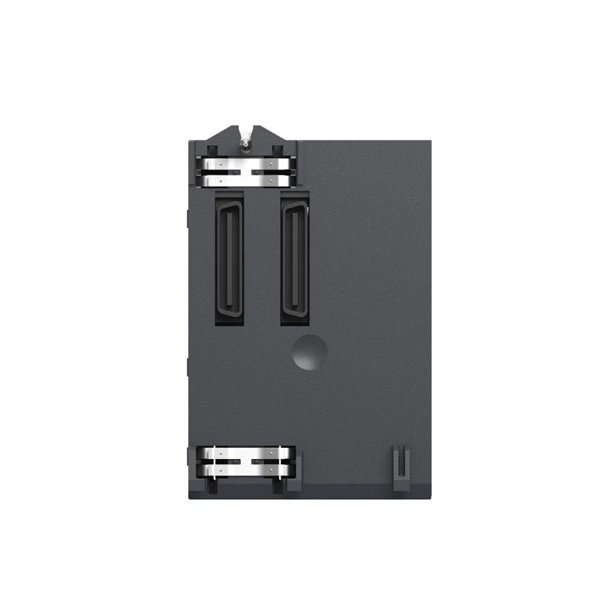

Schneider BMXCPS2000 Power Supply Module

The BMXCPS2000 is engineered for industrial environments, offering robustness, compact design, and easy integration within the Modicon BMX range. It supports a wide input voltage range, which enhances its adaptability in various power conditions. The module is built to deliver steady 24 V DC power, crucial for the proper functioning of the control system.

Technical Specifications

Applications

The BMXCPS2000 Power Supply Module is primarily used in industrial automation systems where Modicon M241 and M251 PLCs are deployed. Typical application fields include:

• Factory automation lines and production machinery

• Building automation systems for HVAC control

• Water treatment plants and distribution networks

• Energy management and monitoring systems

• Packaging and material handling systems

• Automotive assembly lines and robotic cells

Its stable power supply ensures smooth operation of the entire automation system, preventing downtime and improving reliability.

Advantages

• Compact and space-saving design: The small footprint allows for easy installation in tight control cabinets.

• Wide input voltage range: Operates efficiently under varying power conditions, reducing sensitivity to supply fluctuations.

• High reliability: Built with industrial-grade components ensuring long life and minimal failure rates.

• Easy integration: Designed to seamlessly fit into Modicon BMX PLC racks, simplifying wiring and installation.

• Robust protection: Includes overload and short-circuit protections to safeguard the connected equipment.

• Energy efficient: High efficiency reduces heat generation and lowers overall power consumption.

• Stable output: Maintains consistent 24 V DC output critical for sensitive control modules.

• Wide operating temperature: Suitable for harsh environments, expanding usability in different industrial settings.

FAQ

1. What is the maximum current output of the BMXCPS2000?

   The module can deliver a continuous current of up to 2 A at 24 V DC.

2. Can this power supply module operate on 110 V as well as 230 V input?

   Yes, it supports a wide input voltage range from 100 V to 240 V AC, suitable for both.

3. Is the BMXCPS2000 compatible with all Modicon PLCs?

   It is specifically designed for use with Modicon M241 and M251 PLC series.

4. What protections does the BMXCPS2000 include?

   It features overload and short-circuit protection to prevent damage.

5. How is the BMXCPS2000 mounted in control panels?

   It is designed for standard DIN rail mounting, allowing easy installation.

6. What are the operating temperature limits?

   The device operates safely between 0°C and 60°C.

7. Can the BMXCPS2000 be used in humid environments?

   Yes, it can operate in 5% to 95% relative humidity, non-condensing conditions.

8. What are the module’s dimensions?

   The physical size is 99 x 68 x 104 mm.

9. Is this power supply energy efficient?

   Yes, it has 85% efficiency, which helps reduce energy loss.

10. Can I use this power supply for non-Modicon equipment?

    While it outputs a standard 24 V DC, it is recommended for Modicon systems due to compatibility and safety features.
