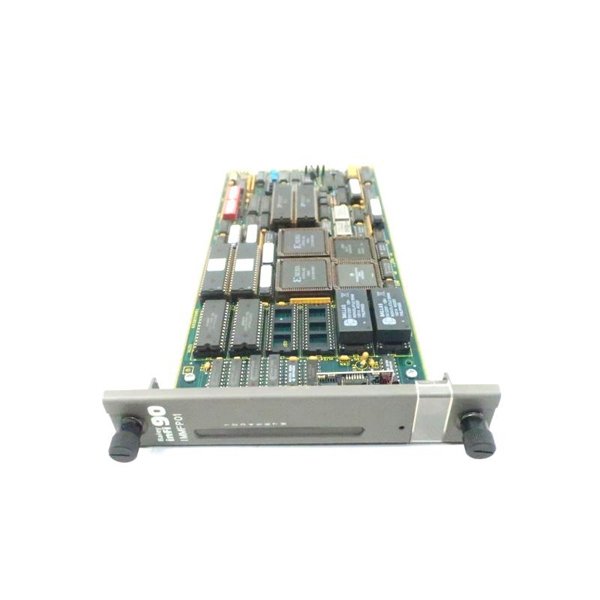

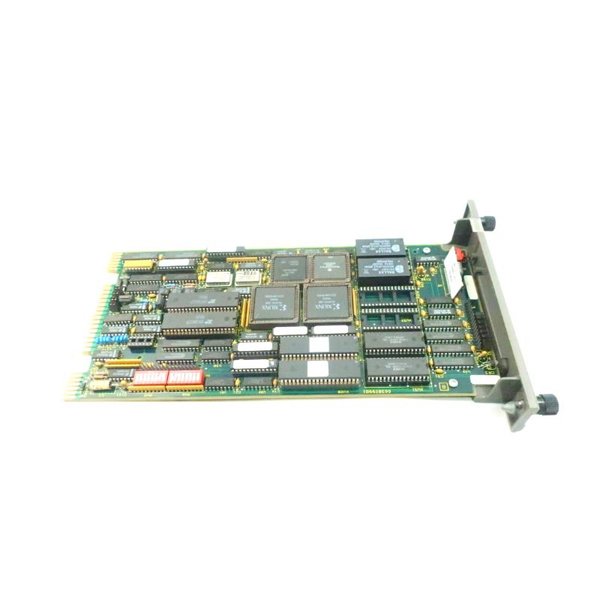

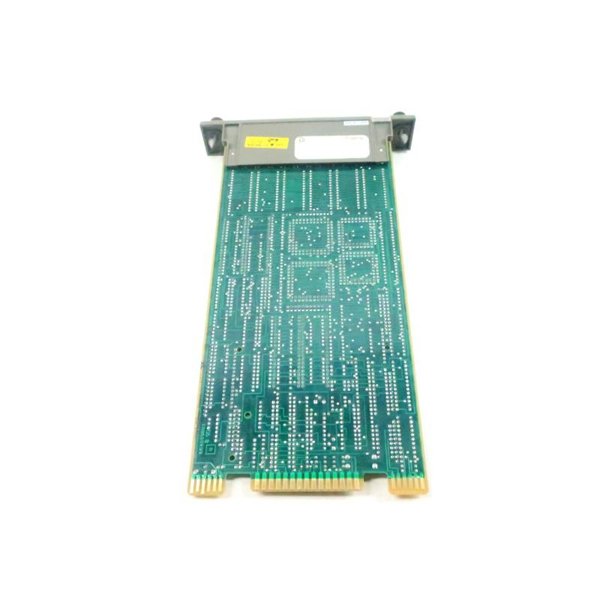

ABB Bailey IMMFP01 Multi Function Processor Module

The ABB Bailey IMMFP01 is a highly versatile Multi-Function Processor (MFP) module designed to meet the diverse needs of process control applications. It is a central element of ABB’s INFI 90 OPEN system, providing robust control, data acquisition, and processing capabilities in one compact unit. This module is built for high reliability and flexibility, supporting a wide range of input/output (I/O) modules for various industrial applications. The IMMFP01 can integrate seamlessly with ABB’s system components, enabling optimized control strategies for complex processes.

The IMMFP01 is ideal for applications requiring continuous monitoring and control of process variables, data analysis, and sophisticated alarm handling. This processor is often used in industries like chemical, oil & gas, power generation, and manufacturing where performance and reliability are critical.

Specifications

Applications

The IMMFP01 Multi-Function Processor Module is designed to support a wide range of applications, offering high reliability and flexibility for diverse industries. Some of the primary applications include:

• Process Control Systems: The IMMFP01 is the backbone of distributed control systems (DCS), providing accurate data processing and control for complex processes.

• Data Acquisition Systems: It can collect data from various sensors and field devices, such as temperature, pressure, flow, and level, to enable effective monitoring and control of processes.

• Automation in Manufacturing: It integrates seamlessly into automated production lines, enhancing performance and ensuring product quality by continuously monitoring and controlling machine operations.

• Oil & Gas: The module plays a critical role in drilling and refining processes, ensuring that parameters such as flow rates, pressure, and temperature are optimally controlled.

• Power Generation: In power plants, the IMMFP01 manages operations related to turbines, boilers, and electrical systems, providing real-time data for efficient power production.

• Water Treatment Plants: The IMMFP01 processes and controls data from water quality monitoring devices, pH sensors, and turbidity meters, ensuring regulatory compliance and efficient water treatment processes.

Advantages

• High Performance: The IMMFP01 offers real-time computing capability, making it ideal for applications requiring fast and accurate data processing.

• Scalability: This module supports a wide range of input and output modules, enabling system expansion and flexibility in various industrial environments.

• Reliability: Built to operate in harsh industrial environments, the IMMFP01 is highly reliable and can withstand temperature variations and power fluctuations, ensuring consistent performance.

• Seamless Integration: The IMMFP01 integrates smoothly with other ABB products, providing a unified control and monitoring system.

• Flexible Communication: Equipped with Ethernet, Modbus RTU, and TCP/IP, it supports various communication protocols, allowing for easy integration into existing systems.

• Compact Design: Despite its powerful capabilities, the IMMFP01 is compact and designed for modular DIN rail mounting, saving valuable space within control cabinets.

• Real-Time Data Processing: It supports fast data processing for applications that require real-time control and monitoring of critical process parameters.

• Advanced Control Strategies: The IMMFP01 is capable of implementing advanced control algorithms, such as PID control, fuzzy logic, and model-based control, to optimize process performance.

• Cost-Effective: By integrating multiple functionalities into one module, it reduces the need for multiple discrete components, thus lowering system complexity and costs.

• Compliant with Industry Standards: The IMMFP01 meets industry certifications such as CE and UL, ensuring safety and compliance for global operations.

Frequently Asked Questions (FAQ)

1. What type of inputs and outputs does the IMMFP01 support?

   The IMMFP01 supports both analog and digital inputs and outputs, as well as fieldbus I/O modules for a wide range of industrial applications.

2. What is the power supply requirement for the IMMFP01?

   The IMMFP01 requires a 24 VDC power supply with a typical consumption of 150 mA.

3. What are the communication interfaces available on the IMMFP01?

   It supports Ethernet, Modbus RTU, and TCP/IP communication interfaces, enabling easy integration into various systems.

4. What is the operating temperature range for the IMMFP01?

   The module operates within a temperature range of -20°C to +70°C (–4°F to +158°F).

5. How many I/O channels can the IMMFP01 support?

   The IMMFP01 can support a wide range of I/O channels depending on the connected modules. The exact number depends on the configuration of the control system.

6. Is the IMMFP01 suitable for hazardous environments?

   While it is designed for industrial environments, it is important to check specific certifications for hazardous locations. The IMMFP01 is compliant with CE and UL standards for industrial use.

7. What is the weight and size of the IMMFP01?

   The IMMFP01 weighs 0.431 kg and has dimensions of 35.56 x 177.80 x 298.45 mm.

8. How does the IMMFP01 ensure high reliability in harsh environments?

   The IMMFP01 is designed with robust protection and operates reliably within its specified temperature and environmental ranges.

9. Can the IMMFP01 be integrated with ABB’s Symphony Plus system?

   Yes, the IMMFP01 is compatible with ABB’s Symphony Plus and INFI 90 systems, enabling seamless integration with other ABB modules.

10. Is the IMMFP01 modular for system expansion?

    Yes, the IMMFP01 supports modular expansion by connecting additional I/O modules, allowing for scalable systems to meet specific operational needs.
