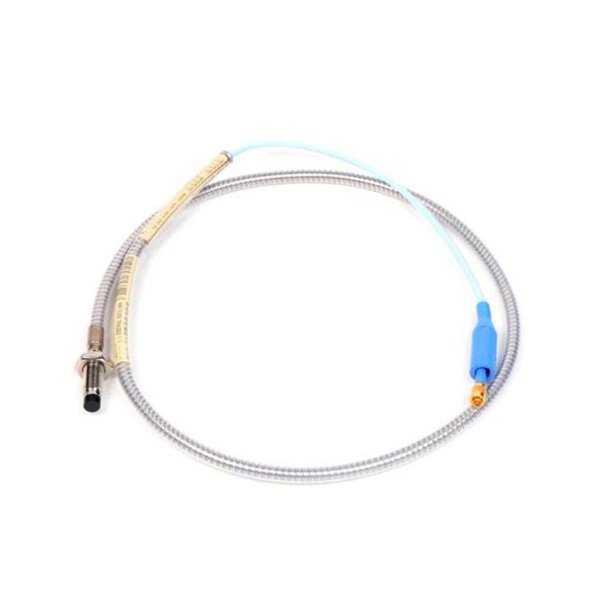

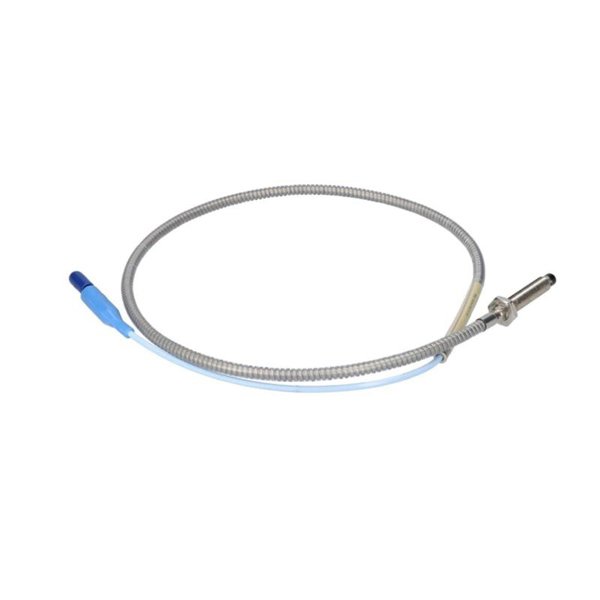

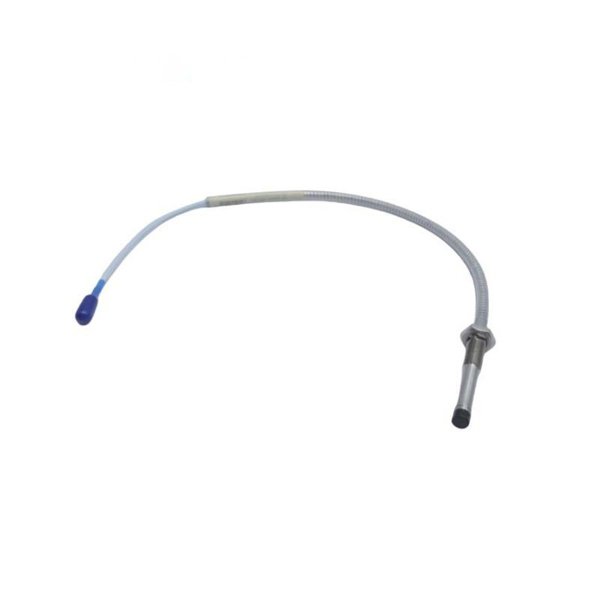

Bently Nevada 330104-00-08-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-00-08-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:40
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-00-08-10-02-05 is a robust 8 mm proximity probe designed for precise static and dynamic measurements of shaft position and vibration. It forms part of the 3300 XL 8 mm Transducer System, including the probe, extension cable, and Proximitor sensor. The model is built with M10 x 1 metric threading and includes armor protection, ClickLoc connectors, and a 1.0-meter total length.
Applications
-
Shaft vibration and position monitoring on fluid-film bearing machines
-
Keyphasor reference and speed measurements
-
Turbomachinery overspeed and phase detection
Product Advantages
-
API 670 compliance for linearity and temperature stability
-
Interchangeable components without field calibration
-
Armor design for protection in harsh environments
-
ClickLoc connectors ensure secure, tool-free installation
-
Extended temperature range options available
-
Improved EMI/RFI immunity
-
Optional FluidLoc cable prevents lubricant ingress
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330104-00-08-10-02-05 |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | M10 x 1 (metric) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Material | AISI 304 stainless steel with PPS tip |
| Temperature Range | –52°C to +177°C (standard), up to 218°C (ETR option) |
| Linear Range | 2 mm (0.25 to 2.3 mm gap) |
| Frequency Response | 0 to 10 kHz |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Shaft Diameter | ≥ 50.8 mm (2 in), ≥ 76.2 mm (3 in) preferred |
| Connector Type | Miniature coaxial ClickLoc |
| Armor | Included (Flexible AISI 302/304 SST with FEP jacket) |
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330104-00-08-10-02-05 probe?
A1: It measures shaft vibration and position by detecting distance changes to a rotating shaft.
Q2: Is this probe suitable for API 670 compliance?
A2: Yes, it fully complies with API 670 standards for vibration monitoring systems.
Q3: Can this probe be used with older Bently Nevada systems?
A3: Yes, it is backward compatible with non-XL 3300 series components.
Q4: What is the recommended gap voltage for installation?
A4: Approximately –9 Vdc, equating to a 1.27 mm (50 mil) gap.
Q5: What environments can this probe withstand?
A5: It is rated from –52°C to +177°C and is resistant to oil ingress when FluidLoc cable is used.
Q6: Does it require calibration before use?
A6: No, components are factory calibrated and fully interchangeable.
Q7: What’s the benefit of ClickLoc connectors?
A7: They provide secure, tool-free connections with a locking click.
Q8: Can I use this probe for high-speed turbines?
A8: Yes, it supports speed and Keyphasor measurements.
Q9: What is the probe cable’s pull strength?
A9: 330 N (75 lbf) due to the patented CableLoc design.
Q10: How does the armor help?
A10: It shields the cable from mechanical and environmental damage.
