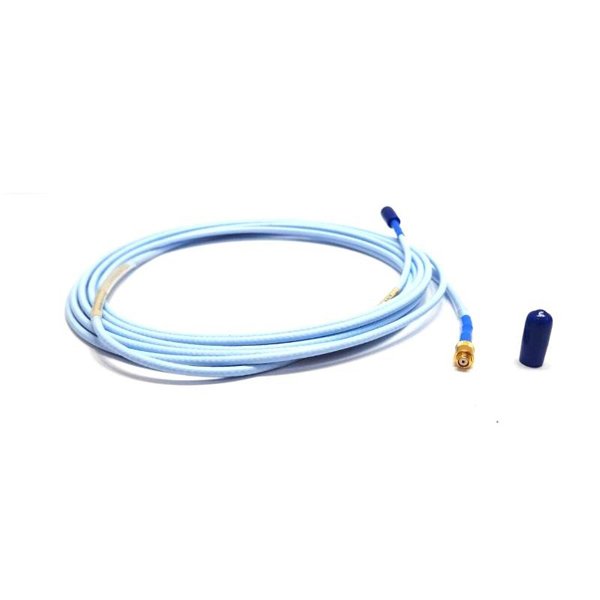

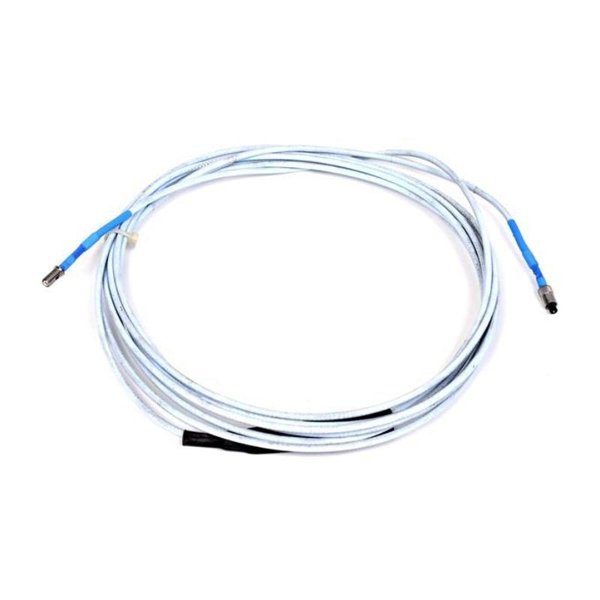

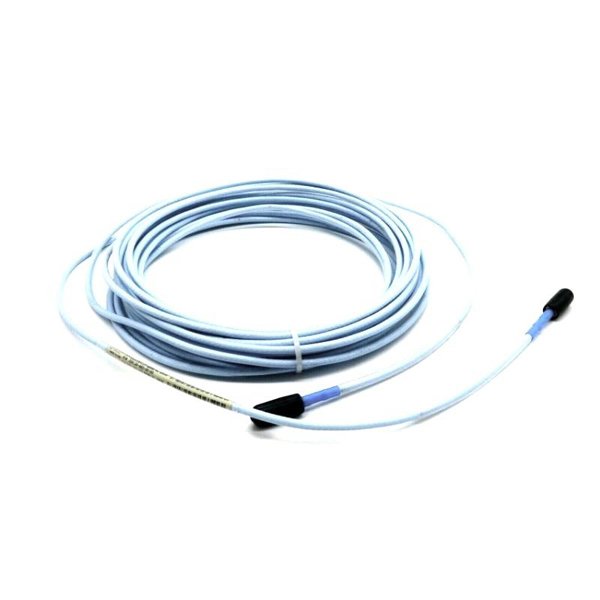

Bently Nevada 330130-075-10-05 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-075-10-05
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:7.5 meters
Weight:0.78 kg
Views:50
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-075-10-05 is a 7.5-meter standard extension cable designed for use in the 3300 XL 8 mm Proximity Transducer System. It forms a critical part of the system by linking the proximity probe to the Proximitor Sensor, facilitating accurate transmission of position and vibration data in rotating machinery.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330130-075-10-05 |
| Product Type | Standard Extension Cable |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 7.5 meters |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature ClickLoc, gold-plated |
| Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Capacitance | 69.9 pF/m (typical) |
| Bend Radius (Minimum) | 25.4 mm |
| Temperature Range | -52°C to +177°C (Standard) |
| Weight | 0.78 kg |
Applications
-
Radial vibration monitoring on fluid-film bearing machines
-
Shaft position measurement
-
Keyphasor and speed reference systems
-
Power generation and industrial turbines
-
Compressors and rotating equipment condition monitoring
Product Advantages
-
High Reliability: Ensures accurate signal transmission under harsh industrial conditions
-
ClickLoc Connectors: Secure, tool-free installation with “click” confirmation
-
Interchangeable: Fully compatible with 3300 XL system components
-
Robust Construction: 330 N tensile strength; secure CableLoc design
-
Oil Protection (Optional): FluidLoc version available to block fluid ingress
-
Easy Routing: Compact and flexible design with small bend radius
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-075-10-05 cable?
A1: It connects the proximity probe to the Proximitor Sensor, ensuring signal integrity.
Q2: Is this cable compatible with non-XL systems?
A2: It is physically and electrically compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: Can it withstand high temperatures?
A3: Yes, the standard version supports up to +177°C; the ETR version supports up to +260°C.
Q4: What are ClickLoc connectors?
A4: They are gold-plated, tool-free connectors with a locking mechanism that “clicks” when properly secured.
Q5: Does it support long-distance signal transmission?
A5: Yes, it maintains signal integrity up to 305 meters with proper field wiring.
Q6: Is oil leakage prevention available?
A6: Yes, optional FluidLoc cables are available for sealing against oil ingress.
Q7: Can I use this cable in hazardous areas?
A7: Yes, it has CSA, ATEX, and IECEx approvals for safe use in hazardous environments.
Q8: How is the cable protected against environmental damage?
A8: Optional connector protectors and armor versions provide enhanced durability.
Q9: Can I install this cable in tight spaces?
A9: Yes, its small bend radius allows flexible routing in constrained environments.
Q10: Is field calibration required after cable replacement?
A10: No, the system is designed for full interchangeability without recalibration.
