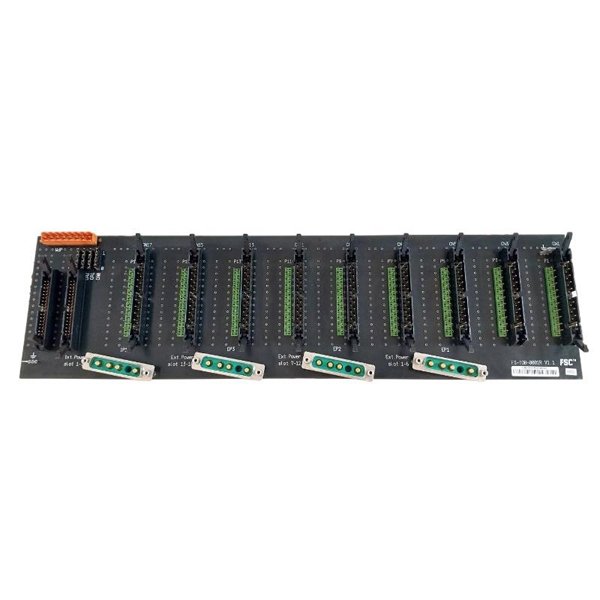

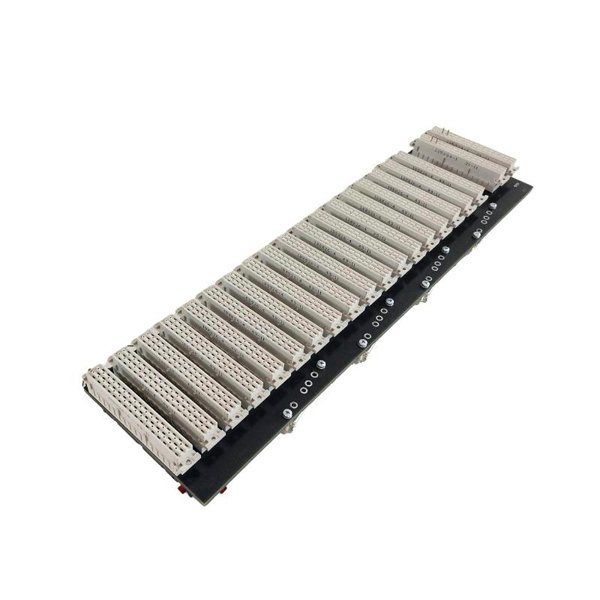

Honeywell FS-IOB-0001R Base I/O Module

The Honeywell FS-IOB-0001R Base I/O Module is a critical component in Honeywell’s Experion PKS (Process Knowledge System), designed to facilitate reliable data acquisition and communication between field devices and the control system. This module provides a robust, scalable solution for industrial automation and control, offering flexibility in a wide range of applications, including process control, monitoring, and machinery control.

The FS-IOB-0001R module is designed to handle both analog and digital inputs/outputs, making it suitable for connecting various types of sensors and actuators. It is engineered to work seamlessly within Honeywell’s comprehensive automation systems, helping industries achieve optimal performance, reduce downtime, and ensure efficient control of critical operations.

With its compact design and reliable functionality, this module ensures that data from the field is transmitted to the control system in real time, enabling operators to monitor and manage processes effectively. The FS-IOB-0001R offers a high level of flexibility for system expansion, allowing it to be integrated into both new and existing installations.

Product Specifications

Product Applications

The Honeywell FS-IOB-0001R Base I/O Module is versatile and can be applied in a range of industrial and automation applications. Its primary uses include:

• Process Control: In manufacturing and processing industries, the module interfaces with various field devices (e.g., temperature sensors, pressure transducers) to monitor and control process variables.

• Energy Management: The module is used to interface with energy meters, power analyzers, and other devices to monitor and control power usage, ensuring efficient energy consumption.

• Building Automation: The module is used in HVAC, lighting, and environmental control systems, enabling the collection and processing of data from temperature, humidity, and airflow sensors.

• Oil & Gas: In the oil and gas industry, this module can monitor critical equipment such as pumps, compressors, and turbines, helping to optimize performance and prevent failures.

• Water and Wastewater Treatment: Used in water treatment plants to monitor water quality parameters such as pH, turbidity, and chemical levels, ensuring the water treatment process remains safe and efficient.

• Pharmaceuticals: Used in pharmaceutical production for monitoring equipment and environmental conditions, ensuring compliance with stringent industry regulations.

• Automated Manufacturing Systems: The module connects to various sensors and actuators in automated production lines, ensuring real-time monitoring and control of manufacturing processes.

• Food and Beverage: Used for temperature and process monitoring in food production and packaging facilities, ensuring consistent quality and safety standards.

Product Advantages

• Flexibility and Scalability: The FS-IOB-0001R module offers multiple I/O channels and supports both analog and digital signals, allowing for flexible system design and expansion.

• Compact Design: With its DIN rail mountable design and dimensions of 150 x 90 x 40 mm, the module fits easily into control panels, saving valuable space.

• High Performance: With a 100 ms sampling rate and 10 ms response time for digital inputs/outputs, the module ensures fast and accurate data processing, critical for real-time control.

• Reliable Communication: Designed to integrate seamlessly with Honeywell Experion PKS and other Honeywell systems, the module ensures reliable communication between field devices and the control system.

• Durability: The module is built with high-quality materials to withstand challenging industrial environments, with an IP20 protection rating against dust ingress.

• Wide Temperature Range: The -20°C to +60°C operating temperature range ensures that the module can function effectively in both hot and cold industrial environments.

• Safety Features: Includes overvoltage protection and other safety mechanisms to ensure the module operates safely and reliably.

• Easy Installation: The DIN rail or panel mountable design simplifies installation, reducing setup time and effort for engineers.

• Cost Efficiency: By providing high-density I/O channels in a compact form factor, the module reduces the need for additional hardware, offering a cost-effective solution for industrial automation systems.

• Energy Efficient: Operating on a 24 V DC power supply, the module consumes low power, making it suitable for energy-conscious applications.

Frequently Asked Questions (FAQ)

1. Q: How many I/O channels does the Honeywell FS-IOB-0001R module support?

   A: The module supports 8 digital inputs, 8 digital outputs, 4 analog inputs, and 4 analog outputs.

2. Q: What is the input range for analog signals?

   A: The input range for analog signals is 4-20 mA, 0-10 V, and 0-24 V.

3. Q: What is the weight of the FS-IOB-0001R module?

   A: The module weighs 0.11 kg.

4. Q: What is the operating temperature range of the module?

   A: The operating temperature range is -20°C to +60°C.

5. Q: Is the Honeywell FS-IOB-0001R module compatible with other Honeywell systems?

   A: Yes, it is fully compatible with Honeywell Experion PKS and other Honeywell DCS systems.

6. Q: What are the mounting options for the FS-IOB-0001R module?

   A: The module is DIN rail mountable or can be mounted on a panel.

7. Q: What is the sampling rate of the module?

   A: The module has a 100 ms sampling rate for analog inputs and 10 ms for digital inputs/outputs.

8. Q: What communication protocols does the module support?

   A: The module supports Modbus and Honeywell proprietary protocols.

9. Q: What is the protection rating for the FS-IOB-0001R module?

   A: The module has an IP20 protection rating, making it dustproof but not suitable for wet environments.

10. Q: Can the FS-IOB-0001R module be used in hazardous environments?

    A: The module is not specifically certified for hazardous locations but can be used in standard industrial environments.
