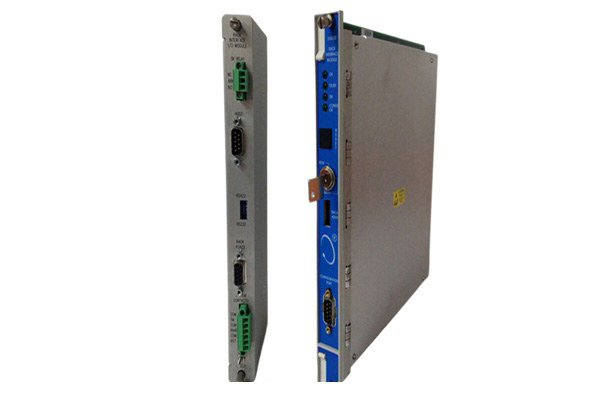

Bently Nevada 125768-01 Rack Interface Module

The BENTLY 125768-01 module, particularly as part of the Bentley Bently Nevada 3500 series, is a rack interface module (RIM I/O module). The following is a detailed analysis of the module:

Basic information

Model: BENTLY 125768-01

Type: Rack Interface Module (RIM I/O Module)

Series: Bentley Bently Nevada 3500 Series

Interface: With RS232/RS422 interface

Functional characteristics

Main interface functions:

As the primary interface of the 3500 rack (RIM), it supports private protocols for setting up racks and obtaining machine data.

The first rack slot must contain an RIM (located next to the power supply).

Compatible with TDXnet, TDIX, and DDIX Bently Nevada external communication processors.

Operation mode:

Equipped with a keylock for switching 3500 racks between “RUN” and “Program” modes.

RUN mode: prevents configuration modifications while allowing the rack to operate normally.

Program mode: supports local and remote rack configuration as well as standard rack operation.

Redundant function:

For applications using Triple Modular Redundancy (TMR), the 3500 system requires the TMR version of the RIM, which performs “monitoring channel comparison” in addition to performing all other normal RIM operations.

Technical specifications

Shape and size: square, specification 263337, net depth/length of product 135mm, net weight 2.3kg.

Support system: PLC/DCS system

Voltage: 220V

Power: 2700W

Application and Configuration

Application field:

Commonly used in industrial automation, machine control, equipment monitoring, laboratory testing, and other fields.

Bentley Bently Nevada sensors are typically installed inside or on the surface of machines to measure vibration, displacement, speed, pressure, torque, and energy, while the 125768-01 module is responsible for data transmission between these sensors and the control system.

Configuration and programming:

Users can write control programs or configure the behavior of modules based on specific application requirements. These control programs can be created through visual programming tools or programming languages.

Market and Price

Market price: Prices may vary depending on different sales channels and promotional activities. For example, on certain platforms, the price of this module may start at 15999 yuan.

Supplier: Multiple industrial automation and control system suppliers provide this module, including direct purchases from Bentley Bently Nevada or its authorized distributors.

In summary, the BENTLY 125768-01 module is a powerful rack interface module suitable for various industrial automation and control systems, with high reliability and flexibility.
