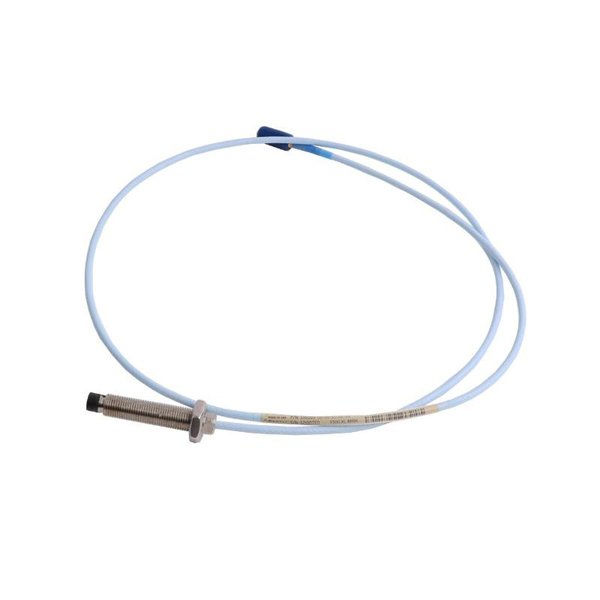

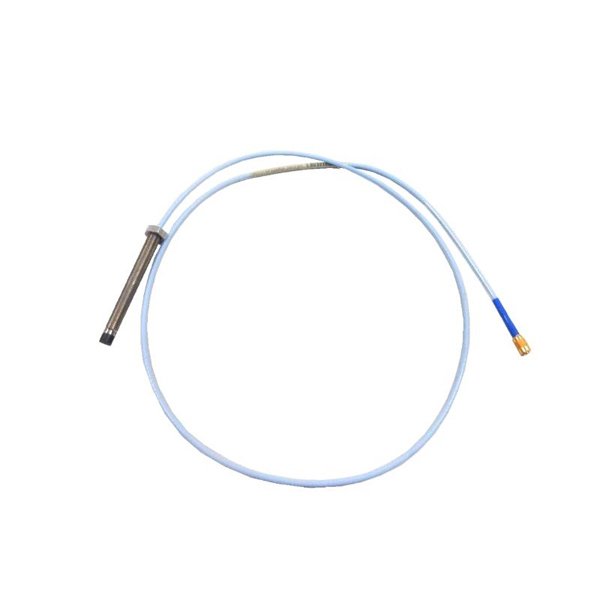

Bently Nevada 330103-05-09-10-02-00 3300 XL 8mm Proximity Probe

The Bently Nevada 330103-05-09-10-02-00 is a highly reliable 3300 XL series 8mm proximity probe designed for precision vibration and displacement monitoring in industrial machinery. Part of the Bently Nevada 3300 XL product family, this proximity probe is engineered to provide accurate, real-time data for predictive maintenance and machinery condition monitoring.

Measuring 1.0 meter in length, it is designed to deliver high-performance vibration and position monitoring in critical machinery such as turbines, pumps, motors, compressors, and generators. It enables seamless integration into a variety of industrial systems, providing consistent, long-term operation and improving machinery uptime.

The 3300 XL series is recognized for its durability and precision, ensuring the protection of valuable equipment by detecting mechanical issues at an early stage, thereby preventing costly downtime and unexpected repairs.

Product Specifications

Below are the detailed specifications for the Bently Nevada 330103-05-09-10-02-00 3300 XL 8mm Proximity Probe:

Product Applications

The Bently Nevada 330103-05-09-10-02-00 proximity probe is ideal for a wide range of industrial applications, especially those requiring high-precision measurement for rotating machinery and mechanical systems. Some of the key applications include:

1. Turbine Monitoring: It is widely used in monitoring the vibration and displacement of turbines in power plants, ensuring that mechanical components are operating within their safe parameters.

2. Motor and Pump Monitoring: The probe helps monitor the health of motors and pumps by measuring shaft displacement and vibrations, alerting operators to potential issues before they lead to failures.

3. Compressor Vibration Monitoring: The probe is essential in tracking the condition of compressors, detecting misalignment, imbalance, and wear that could lead to operational disruptions.

4. Generators and Electrical Equipment: Used for monitoring large rotating machinery such as generators, it helps maintain optimal performance and reduces the likelihood of unexpected downtime.

5. Process Control Systems: In industries like oil & gas, chemicals, and manufacturing, the 3300 XL probe plays a crucial role in maintaining process control systems by monitoring key components like valves and actuators.

6. Heavy Machinery & Aerospace: This probe is widely used in monitoring heavy machinery in construction and aerospace applications, ensuring smooth operation and early fault detection.

Product Advantages

1. Exceptional Precision: The 3300 XL proximity probe offers exceptional measurement accuracy, providing real-time data on shaft displacement, vibration, and position with high precision.

2. Durability: Constructed from high-quality stainless steel, the probe is designed to last in tough industrial environments, offering long-term reliability.

3. Wide Temperature Range: With a temperature range of -40°C to +120°C, the probe can function in both extreme cold and heat, making it suitable for a wide variety of industrial environments.

4. Shock Resistance: The probe can withstand high shock levels (up to 100 g), which is critical for high-impact and high-vibration industrial applications.

5. Compact and Lightweight: With a total length of 1.0 meter and a weight of just 0.323 kg, the probe is compact and easy to install, even in space-constrained environments.

6. Highly Sensitive: The probe’s high sensitivity makes it ideal for detecting small mechanical issues, ensuring early detection of faults that could potentially lead to equipment failure.

7. Easy Integration: It integrates seamlessly with Bently Nevada’s monitoring systems, such as the 3300 and 3500 series, providing a comprehensive solution for condition monitoring.

8. Predictive Maintenance: The ability to continuously monitor vibration and displacement allows for predictive maintenance, which can significantly reduce unexpected downtime and maintenance costs.

9. Real-Time Monitoring: Provides operators with real-time feedback on the condition of machinery, enabling immediate response to prevent failure.

10. Cost-Effective: Investing in this high-quality proximity probe reduces long-term operational costs by helping to identify issues early and avoid expensive repairs and system failures.

Frequently Asked Questions (FAQ)

1. What is the nominal gap for the Bently Nevada 330103-05-09-10-02-00 proximity probe?

   • The nominal gap is 8 mm.

2. What is the total length of the probe?

   • The total length of the probe is 1.0 meter.

3. How much does the probe weigh?

   • The probe weighs 0.323 kg.

4. What is the temperature range of this proximity probe?

   • The operating temperature range is -40°C to +120°C.

5. What is the output type of the Bently Nevada 330103-05-09-10-02-00?

   • The output is typically analog, in the range of 4-20 mA.

6. What materials is the probe made of?

   • The probe is made of high-quality stainless steel, providing durability and resistance to corrosion.

7. Can this probe be used in environments with high vibrations?

   • Yes, the probe is designed to withstand high vibration and shock levels, making it suitable for use in challenging industrial environments.

8. What type of monitoring system is compatible with this probe?

   • This probe is compatible with Bently Nevada’s 3300 and 3500 series vibration monitoring systems.

9. How is the probe mounted?

   • The probe is designed for direct mounting onto the machine surface for accurate measurement.

10. What applications are best suited for this probe?

    • It is ideal for monitoring turbines, pumps, motors, compressors, and other rotating machinery in industries such as power generation, manufacturing, and aerospace.
