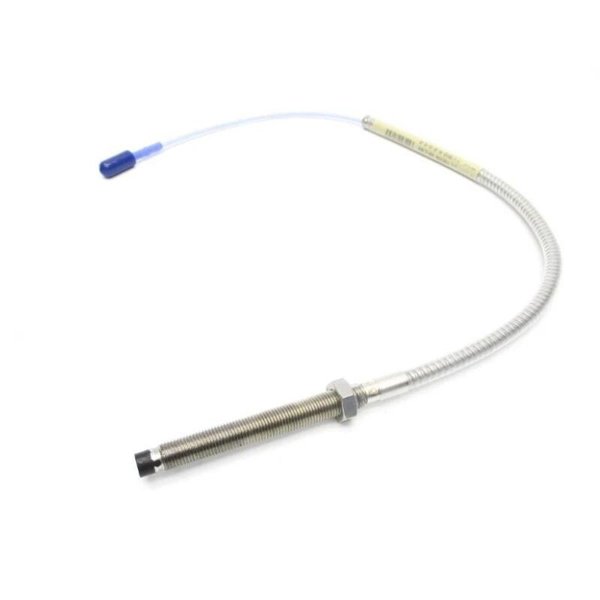

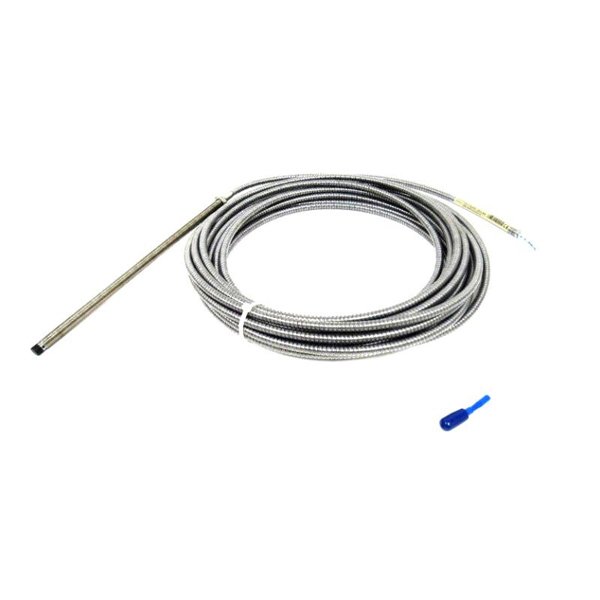

Bently Nevada 330102-00-18-90-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-00-18-90-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:9.0 meters
Weight:2.907 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-00-18-90-02-00 is a robust 3300 XL 8 mm proximity probe with armored cable. It measures static and dynamic displacement of rotating machinery, providing accurate vibration, position, Keyphasor, and speed measurements. The probe’s armored construction enhances durability in harsh environments. Fully compliant with API 670, it ensures excellent linearity, accuracy, and temperature stability without the need for component matching or calibration.
Applications
-
Fluid-film bearing machine vibration and position monitoring
-
Keyphasor phase and speed detection
-
High-density DIN-rail or panel-mount installations
Advantages
-
Meets API 670 standards
-
Fully interchangeable components
-
High immunity to RFI/EMI
-
Rugged armored design for demanding conditions
-
Extended temperature range options
-
Easy installation with ClickLoc connectors and SpringLoc terminals
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 9.0 meters |
| Weight | 2.907 kg |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temperature | -52°C to +177°C (standard), up to +218°C (ETR) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) flat |
| Shaft Diameter (min.) | 50.8 mm (recommended ≥76.2 mm) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) |
| Compliance | CE, RoHS, SIL 2/3, FCC Part 15 |
FAQ
Q1: What is the typical application of this probe?
A1: Monitoring vibration, shaft position, and speed in fluid-film bearing machines.
Q2: Does it meet API 670 standards?
A2: Yes, it fully complies with API 670 mechanical, linearity, and temperature stability requirements.
Q3: Is calibration needed for components?
A3: No, components are fully interchangeable without calibration.
Q4: Can it operate in high-temperature environments?
A4: Yes, up to +218°C (probe tip) with ETR versions.
Q5: Is it suitable for high-RFI environments?
A5: Yes, it has excellent RFI/EMI immunity.
Q6: Are connector protectors included?
A6: They are optional but recommended for environmental protection.
Q7: What is the minimum shaft diameter for accurate readings?
A7: Minimum is 50.8 mm, recommended ≥76.2 mm.
Q8: How is the probe mounted?
A8: With 3/8-24 UNF threads and optional mounting brackets.
Q9: Does it require special tools to install connectors?
A9: No, ClickLoc connectors are finger-tightened.
Q10: Is it backward compatible with non-XL systems?
A10: Yes, fully backward compatible with 3300 series 8 mm systems.
