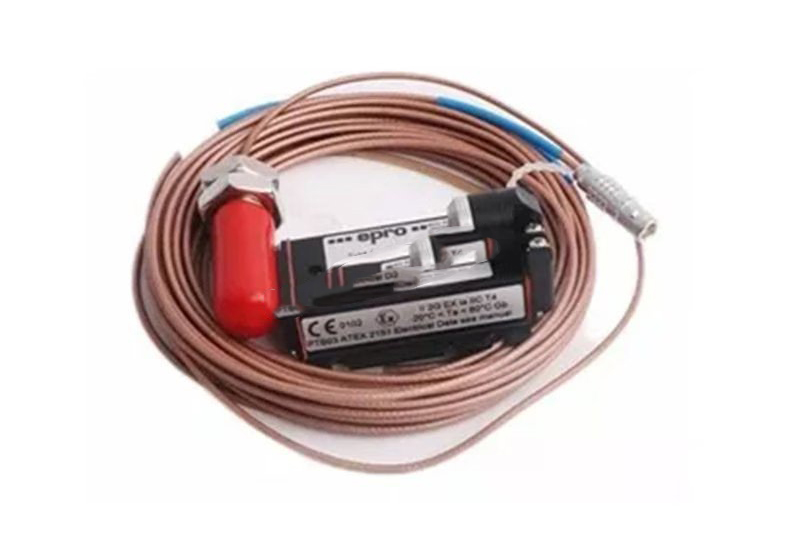

Epro CON021+PR6424/003-010 Eddy Current Sensor

The EPRO CON021 Signal Converter and PR6424/003-010 Displacement Sensor form a robust system for critical turbomachinery applications. They measure radial and axial shaft displacement, position, eccentricity, and speed in turbines, compressors, and pumps.

CON021 Signal Converter Technical Specifications

• Frequency Range: 0 to 20,000 Hz

• Rise Time: <15 μs

• Operating Temperature: -30°C to +100°C (-22°F to +212°F)

• Power Supply: -23V to -32V DC

• Output Voltage Range: -4V to -20V or -2V to -18V

• Protection Class: IP20

• Certifications: ATEX, IECEx, CSA for hazardous areas

• Mounting: Panel mount with 4 screws (M5x20)

PR6424/003-010 Displacement Sensor Technical Specifications

• Measurement Range: ±2.0 mm (static)

• Sensitivity: 4 V/mm (101.6 mV/mil)

• Air Gap: Approx. 2.7 mm (0.11″) nominal

• Frequency Response: Up to 20,000 Hz

• Operating Temperature: -35°C to +150°C (-31°F to +302°F)

• Material: Stainless steel housing with PTFE cable

• Protection Class: IP66

• Certifications: ATEX, IECEx, CSA for hazardous areas
