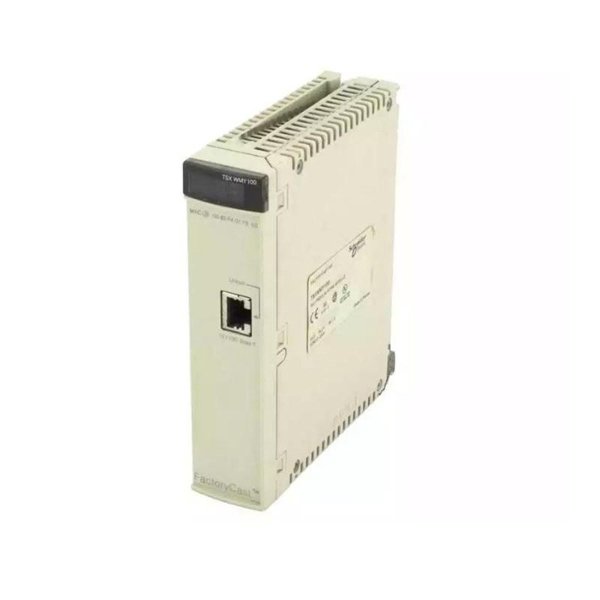

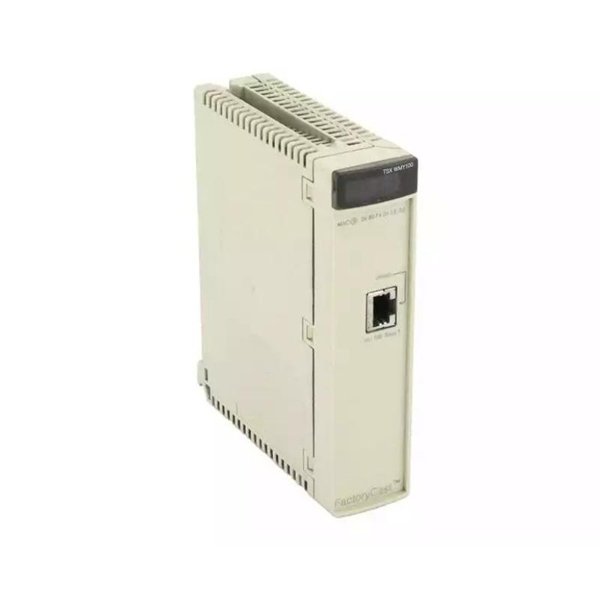

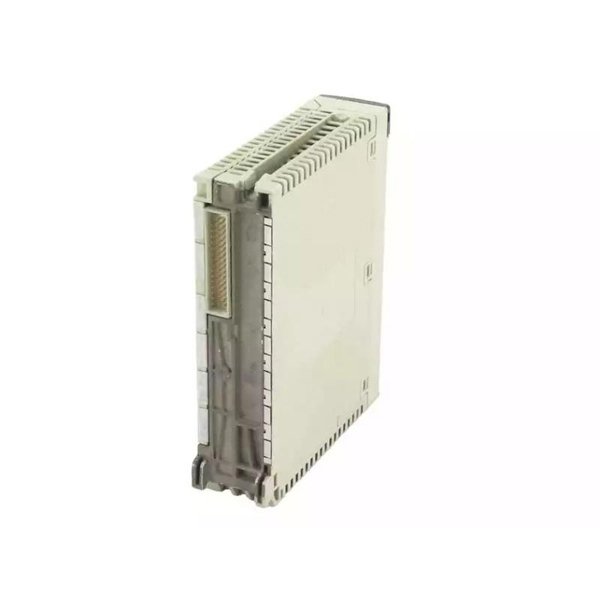

Schneider TSXWMY100 Ethernet TCP/IP Module
Manufacturer:Schneider
Product Number:TSXWMY100
Product Type:Ethernet TCP/IP Module
Origin:France
Dimensions:260 × 180 × 60 mm
Weight:0.44 kg
Views:100
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider TSXWMY100 is a communication module designed for Modicon TSX Micro and Premium PLC systems, enabling seamless Ethernet TCP/IP connectivity. It offers reliable data exchange between PLCs and supervisory systems over industrial networks.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Ethernet TCP/IP Communication Module |
| Communication Protocol | Ethernet TCP/IP |
| Transmission Rate | 10/100 Mbps (auto-sensing) |
| Connector Type | RJ45 |
| Supported PLCs | Modicon TSX Micro, TSX Premium |
| Diagnostic LED | Yes |
| Power Supply | 5 VDC from PLC backplane |
| Configuration Tool | Unity Pro / PL7 |
| Dimensions (W×H×D) | 260 × 180 × 60 mm |
| Weight | 0.44 kg |
Applications
-
Real-time control and data acquisition in industrial automation
-
Communication between Modicon PLCs and SCADA/HMI systems
-
Integration into Ethernet-based factory networks
-
Remote monitoring and diagnostics
Advantages
-
Simple integration into existing Modicon TSX systems
-
Fast and reliable Ethernet communication
-
Supports standard Ethernet network diagnostics
-
Compact design for easy installation
-
Reduces wiring by enabling centralized data collection
Frequently Asked Questions (FAQ)
Q1: What PLCs are compatible with the TSXWMY100 module?
A1: It is compatible with Schneider Modicon TSX Micro and TSX Premium PLCs.
Q2: Can the module be used in a redundant network?
A2: No, TSXWMY100 does not support network redundancy features.
Q3: What is the default IP address of the TSXWMY100?
A3: The default IP can be configured using Unity Pro or PL7 software.
Q4: Does it support Modbus TCP?
A4: Yes, it supports Modbus TCP communication over Ethernet.
Q5: Is the TSXWMY100 hot-swappable?
A5: No, the module must be powered down before replacement.
Q6: Can I monitor diagnostics via web browser?
A6: No, it does not have a built-in web server. Diagnostics must be accessed via software tools.
Q7: What cable should be used for Ethernet connection?
A7: Use standard Cat5e or Cat6 Ethernet cables with RJ45 connectors.
Q8: Is it suitable for outdoor use?
A8: No, it should be installed in a control cabinet within a protected indoor environment.
Q9: What is the max cable length supported?
A9: It supports Ethernet cable lengths up to 100 meters.
Q10: Does it require a separate power supply?
A10: No, it draws power directly from the PLC backplane.
