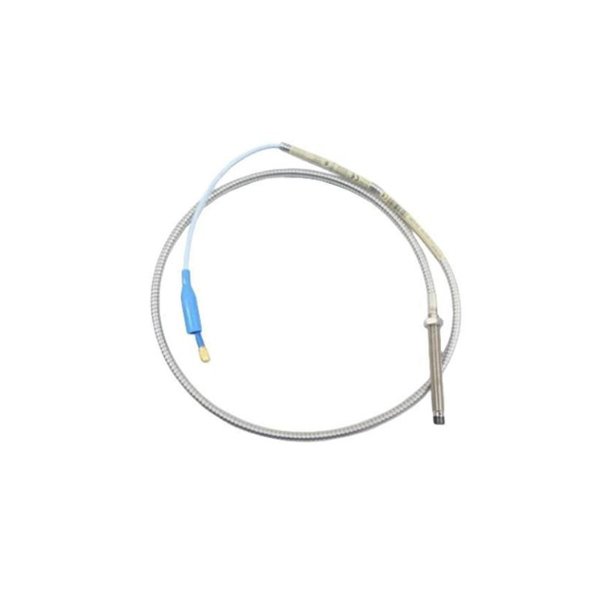

Bently Nevada 330171-15-30-10-02-05 3300 5mm Proximity Probe

The Bently Nevada 330171-15-30-10-02-05 is a high-precision 5mm proximity probe from the Bently Nevada 3300 series, designed for non-contact measurement of vibration and displacement in rotating machinery. This probe is widely used in industrial equipment condition monitoring and predictive maintenance. Its compact size and high-performance features make it ideal for installation in space-constrained environments. The probe works seamlessly with Bently Nevada 3300 XL Proximitor sensors and extension cables, providing a stable, linear output signal for easy integration into existing monitoring systems.

Technical Specifications

Applications

This 5mm proximity probe is suitable for:

• Vibration Monitoring – Detects vibration in rotating machinery to identify potential issues.

• Condition Monitoring – Provides real-time data on equipment operation.

• Predictive Maintenance – Analyzes vibration data to predict possible failures and schedule maintenance.

• Axial Displacement Measurement – Measures axial movement of shafts to ensure stable operation.

• Keyphasor Signal Measurement – Captures synchronous signals for precise machinery monitoring.

• Compact Space Installations – Small size allows installation in tight or confined spaces.

Advantages

• High-Precision Measurement – Provides accurate vibration and displacement data for precise monitoring.

• Compact Design – Ideal for installations with limited space.

• Wide Temperature Range – Operates reliably from -40°C to +120°C.

• Easy Integration – Compatible with 3300 XL series sensors and cables for seamless system integration.

• Durable Construction – High-quality materials ensure long-term reliability.

• No Separate Calibration Needed – Fully interchangeable with other 3300 series components.

• Enhanced Protection – Optional connector protection available.

• Electromagnetic Interference Resistant – Designed to reduce external interference impact.

• Versatile – Suitable for a wide range of industrial environments including high-temperature and high-vibration conditions.

• Reliable Long-Term Performance – Tested for consistent, dependable operation over time.

FAQ

Q1: What type of output signal does the probe provide?

A1: The probe provides a 4-20 mA analog output proportional to vibration or displacement.

Q2: What is the operating temperature range?

A2: The probe operates between -40°C and +120°C.

Q3: Does this probe require separate calibration?

A3: No. It is fully interchangeable with other 3300 series components without separate calibration.

Q4: What types of equipment is this probe suitable for?

A4: It is suitable for various rotating machinery, including pumps, fans, compressors, and generators.

Q5: What is the linear range of the probe?

A5: The linear range is 2 mm (80 mils).

Q6: What are the power requirements?

A6: The probe requires -17.5 VDC to -26 VDC with a maximum current of 12 mA.

Q7: Can this probe operate in high-temperature environments?

A7: Yes, it can operate reliably up to +120°C.

Q8: Does the probe offer protective features?

A8: Yes, optional connector protection is available for enhanced durability.

Q9: What mounting options are available?

A9: Standard and custom mounting options are supported.

Q10: Is this probe suitable for compact installations?

A10: Yes, its compact design allows use in space-limited environments.
