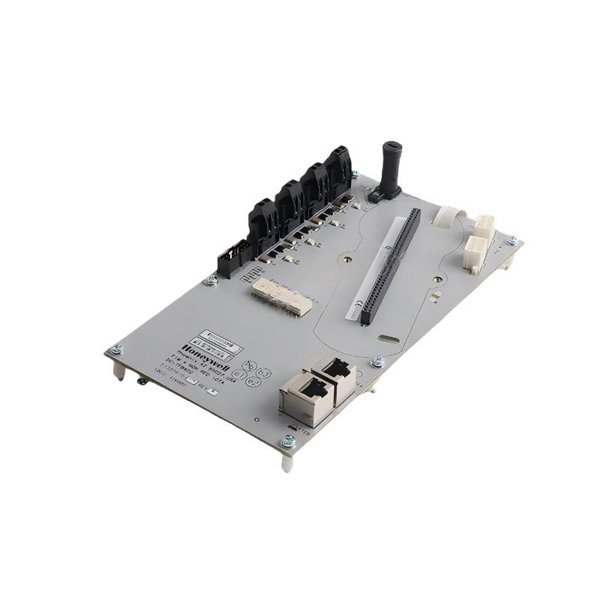

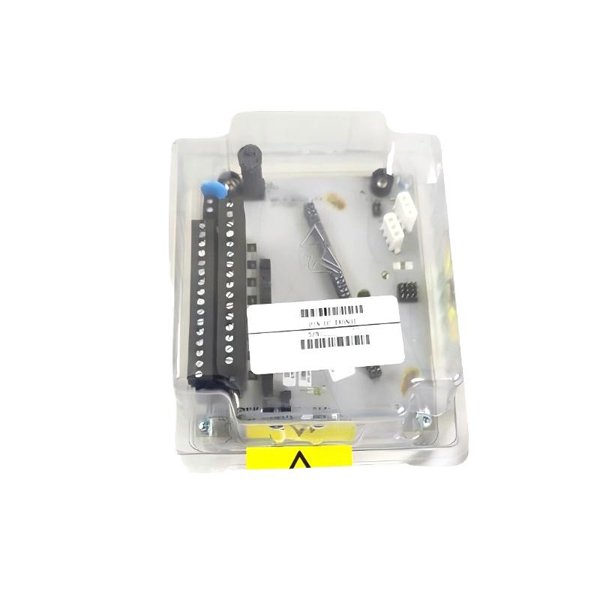

Honeywell 8U-TAOX51 Analog Output Module

The Honeywell 8U-TAOX51 Analog Output Module is designed for precise and reliable output of analog signals in industrial control systems. With a robust and compact design, this module provides high performance in controlling and monitoring analog devices. It is part of the Honeywell range of I/O modules that enable smooth communication between control systems and various field devices, such as actuators, valves, and sensors.

Engineered for environments where accuracy and responsiveness are critical, the 8U-TAOX51 offers unparalleled reliability, ensuring the safe and efficient operation of industrial processes. Whether you are in the manufacturing, energy, or automation sectors, this module is ideal for applications requiring high-quality analog control and output.

The 8U-TAOX51 is equipped with advanced features that offer seamless integration with Honeywell’s control systems, making it a preferred choice for system designers looking for reliable, high-performance solutions.

Technical Specifications

Applications

• Industrial Automation

  The 8U-TAOX51 is ideal for industrial automation applications where analog outputs are required. It can control devices such as pumps, motors, and valves in complex automation systems, ensuring precision in operations.

• Building Management Systems (BMS)

  This module is perfect for use in BMS where precise control over heating, ventilation, air conditioning (HVAC), and lighting systems is crucial. The 8U-TAOX51 helps maintain consistent environmental conditions and optimize energy consumption.

• Manufacturing Control

  In manufacturing processes, the 8U-TAOX51 controls machinery requiring analog inputs, like temperature sensors, pressure transmitters, and flow meters, ensuring accurate and efficient process control.

• Energy Management

  In energy management applications, this module is used to control and monitor parameters such as power generation, distribution, and consumption. It helps ensure reliable and efficient operations in power plants, substations, and other energy systems.

• Test and Measurement Systems

  The Honeywell 8U-TAOX51 provides accurate analog outputs for test equipment, data acquisition systems, and other measurement devices. It ensures that all measurements are correctly relayed to the system for accurate analysis and decision-making.

• Oil & Gas

  In oil and gas operations, this module is used for controlling pumps, compressors, and flow meters. The 8U-TAOX51 ensures safe and reliable operations in challenging environments such as refineries and offshore platforms.

Advantages

• High Precision and Accuracy

  The Honeywell 8U-TAOX51 offers high precision and accuracy in delivering analog outputs, ensuring that control systems and equipment operate at optimal levels.

• Wide Signal Range

  This module supports both voltage (0-10V) and current (4-20mA) outputs, making it versatile and compatible with various types of field equipment and systems.

• Compact and Durable Design

  The 8U-TAOX51 is designed to fit into compact spaces, saving valuable panel real estate. Despite its small size, it is robust and built for reliability in industrial environments.

• Easy Integration with Honeywell Systems

  The 8U-TAOX51 easily integrates with Honeywell’s other control systems and field devices, allowing for seamless communication and data transfer across the system.

• Cost-Effective Solution

  This module provides a cost-effective solution for analog control needs, offering high performance at a competitive price point.

• Energy Efficient

  The 8U-TAOX51 consumes minimal power, with a maximum power consumption of just 2W, contributing to energy efficiency in control systems.

FAQs

Q1: What is the output range for the Honeywell 8U-TAOX51?

A1: The 8U-TAOX51 offers both voltage output (0-10V) and current output (4-20mA), making it suitable for a wide range of applications.

Q2: What is the resolution of the 8U-TAOX51?

A2: The module provides a 16-bit resolution, ensuring high accuracy in analog output control.

Q3: How is the 8U-TAOX51 powered?

A3: The 8U-TAOX51 operates on 24V DC ± 20%, ensuring compatibility with most industrial control systems.

Q4: Can the 8U-TAOX51 be used in harsh environments?

A4: The 8U-TAOX51 is designed for industrial use and has an IP20 protection rating, making it suitable for indoor use in controlled environments.

Q5: What is the mounting method for the 8U-TAOX51?

A5: The 8U-TAOX51 is DIN rail mountable, making installation easy and secure in control panels.

Q6: What is the power consumption of the 8U-TAOX51?

A6: The 8U-TAOX51 has a maximum power consumption of 2W, ensuring energy efficiency.

Q7: Is the 8U-TAOX51 suitable for use in building management systems?

A7: Yes, the 8U-TAOX51 is ideal for use in building management systems, providing precise control over HVAC and lighting systems.

Q8: What protocols does the 8U-TAOX51 support?

A8: The 8U-TAOX51 supports Modbus, OPC, and Honeywell proprietary protocols for easy integration with other systems.

Q9: What is the operating temperature range for the 8U-TAOX51?

A9: The 8U-TAOX51 can operate in temperatures ranging from -20°C to 60°C, making it suitable for a wide range of industrial environments.

Q10: What is the size and weight of the Honeywell 8U-TAOX51?

A10: The 8U-TAOX51 has dimensions of 150 x 100 x 30 mm and weighs 0.5 kg.
