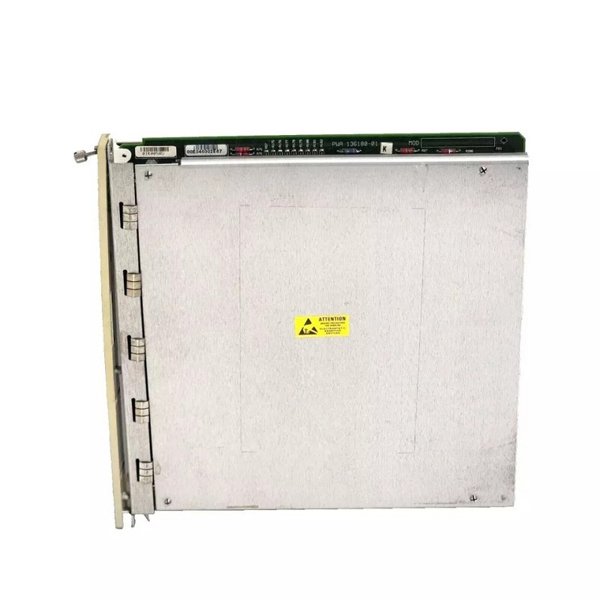

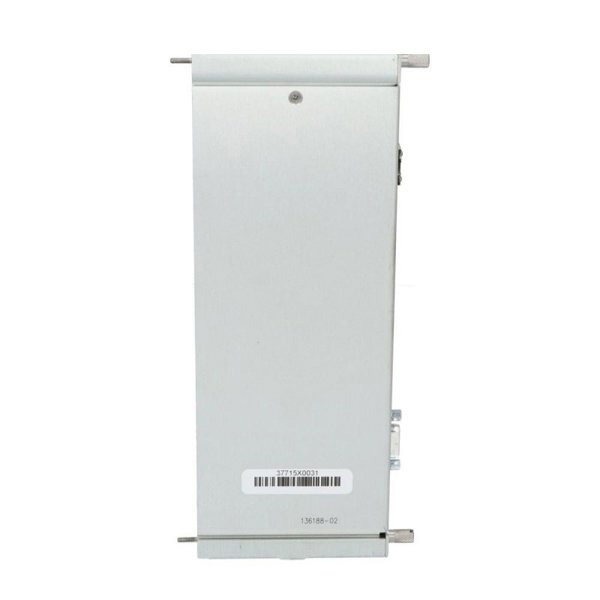

Bently Nevada 3500/92-04-01-00 136188-02+136180-01 Communication Gateway Module

The Bently Nevada 3500/92-04-01-00 Communication Gateway Module is designed to provide high-performance communication capabilities for the 3500 Series machinery monitoring system. It enables full integration of rack-monitored values and status information into process control and automation systems through Ethernet TCP/IP and serial (RS232/RS422/RS485) connections.

It supports Modbus, Modbus/TCP, and proprietary Bently Nevada protocols, offering flexible connectivity for diverse industrial applications.

The module also allows Ethernet communication with 3500 Rack Configuration Software and Data Acquisition Software, ensuring seamless data exchange and monitoring control.

Technical Specifications

Applications

• Integration of 3500 Series machinery monitoring data with distributed control systems (DCS) and SCADA platforms

• Real-time condition monitoring for turbines, compressors, and rotating equipment

• Remote configuration and diagnostics of 3500 rack modules

• Industrial automation systems requiring Modbus or Modbus/TCP connectivity

• Offshore and maritime machinery monitoring under DNV GL and ABS compliance

Advantages

• Multi-protocol support for broad compatibility with industrial systems

• Fast data acquisition with ≤ 1-second rack-wide update rate

• Rugged design suitable for harsh industrial environments

• Certified compliance with EMC, hazardous area, and maritime standards

• Flexible installation supporting multiple I/O types and network configurations

• Enhanced Modbus configuration with configurable register mapping

FAQ

Q1: What is the main function of the 3500/92-04-01-00 module?

A1: It serves as a communication interface between the 3500 Series monitoring system and external control or monitoring systems.

Q2: Which communication protocols are supported?

A2: Modbus (Serial), Modbus/TCP (Ethernet), and proprietary Bently Nevada protocols.

Q3: Can it operate in hazardous environments?

A3: Yes, it has ATEX, IECEx, and CSA hazardous area approvals for Class I, Zone 2 environments.

Q4: How fast can it update data from the rack?

A4: The maximum update rate is one second for all modules in the rack.

Q5: What Ethernet speed does it support?

A5: It supports 10 Mbps Ethernet (10BASE-T).

Q6: What is the operating temperature range?

A6: It operates from -30°C to +65°C.

Q7: Can it connect to both Ethernet and serial systems simultaneously?

A7: Yes, it supports simultaneous communication via Ethernet and serial interfaces.

Q8: Does it require special software?

A8: It works with Bently Nevada 3500 Rack Configuration and Data Acquisition Software.

Q9: What power supply is required?

A9: Power is supplied through the rack backplane, with consumption between 5.0 W and 5.6 W.

Q10: Is it backward compatible with the 3500/90 module?

A10: Yes, it maintains compatibility except for primary value Modbus registers, which are now handled by a configurable Modbus register utility.
