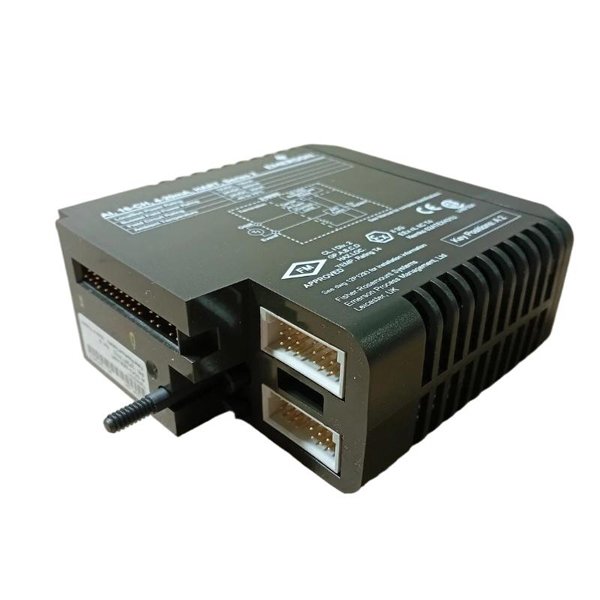

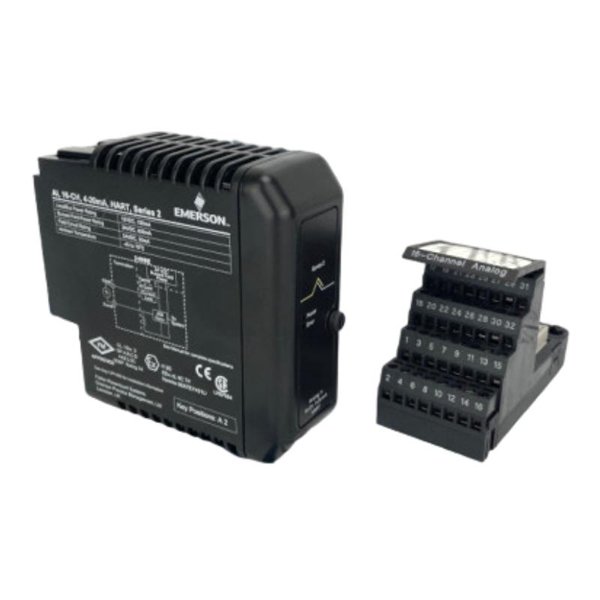

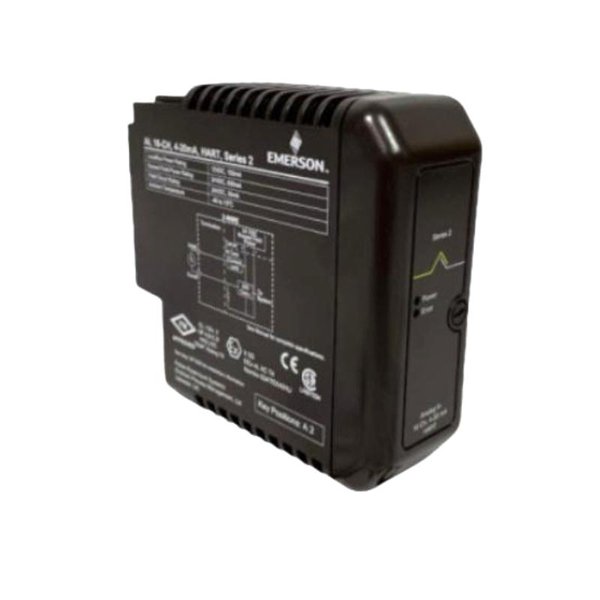

Emerson VE4003S2B6 Analog Input Card

The Emerson VE4003S2B6 Analog Input Card is a high-performance module designed for the DeltaV™ Distributed Control System (DCS). It provides precise and reliable analog input measurement for industrial automation processes, supporting various signal types including voltage, current, and thermocouples. This module enables accurate process monitoring, ensuring optimal system performance in complex industrial environments.

The VE4003S2B6 is engineered to offer seamless integration with the DeltaV system, providing advanced diagnostic capabilities and flexible configuration options to meet the demands of modern process control applications.

Product Specifications

Product Applications

• Process control in chemical and petrochemical plants

• Power generation monitoring and control

• Oil and gas production automation

• Pharmaceutical and food & beverage manufacturing

• Water and wastewater treatment facilities

• Integration with DeltaV systems for advanced process monitoring

Product Advantages

• High-precision analog signal acquisition

• Supports multiple signal types including voltage, current, and thermocouple

• Fast response time for real-time process monitoring

• Robust channel-to-channel and system isolation for safety and reliability

• Compact design allowing efficient use of cabinet space

• Fully compatible with Emerson DeltaV DCS modules

• Advanced diagnostics for predictive maintenance and quick troubleshooting

FAQ

Q1: What signal types can VE4003S2B6 support?

A1: It supports voltage, current, and thermocouple inputs.

Q2: How many input channels does the module provide?

A2: The module provides 8 analog input channels.

Q3: What is the measurement accuracy of this module?

A3: The accuracy is ±0.05% of full scale.

Q4: Is there channel-to-channel isolation?

A4: Yes, it provides both channel-to-channel and channel-to-system isolation.

Q5: What communication protocol does it use?

A5: It communicates using the DeltaV DCS protocol.

Q6: What is the response time of the input card?

A6: The typical response time is 50 milliseconds.

Q7: Can it measure thermocouples directly?

A7: Yes, it supports direct connection of thermocouples with appropriate configuration.

Q8: What is the operating temperature range?

A8: The operating range is 0°C to 60°C.

Q9: How is this module powered?

A9: It consumes 3 W and receives power through the DeltaV backplane.

Q10: Is the module compatible with other DeltaV I/O cards?

A10: Yes, it is fully compatible and can be installed alongside other DeltaV analog and digital I/O cards.
