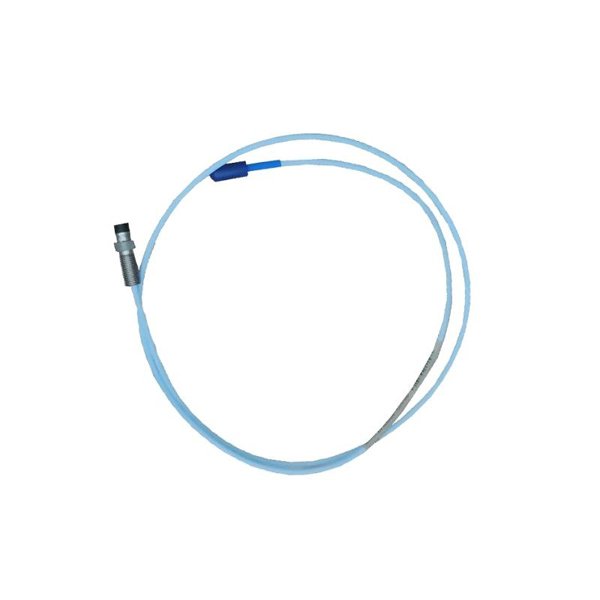

Bently Nevada 330730-080-01-00 3300 XL 11mm Extension Cable

The 3300 XL 11mm Extension Cable is an integral part of the 3300 XL Proximity Transducer System. It features a robust design with an armored cable option, providing enhanced protection against environmental factors and mechanical stresses. The cable is engineered to maintain signal integrity over extended distances, supporting precise measurements in challenging industrial environments.​

Product Specifications

Product Applications

The 3300 XL 11mm Extension Cable is used in conjunction with the 3300 XL Proximity Transducer System for:​

• Axial (thrust) position measurements

• Ramp differential expansion measurements on steam turbines

• Rod position or rod drop measurements on reciprocating compressors

• Tachometer and zero speed measurements

• Phase reference (Keyphasor) signals​

Product Advantages

• Enhanced Durability: The armored cable option provides superior protection against mechanical damage and environmental factors.

• Extended Reach: With a length of 8.0 meters, it allows for flexible installation in various setups.

• Signal Integrity: Low capacitance ensures minimal signal loss over extended distances.

• High Temperature Resistance: Operates effectively in a wide temperature range, from -51°C to +177°C.

• Compatibility: Designed to integrate seamlessly with the 3300 XL Proximity Transducer System.​​

Frequently Asked Questions (FAQ)

1. What is the purpose of the 3300 XL 11mm Extension Cable?

   • The 3300 XL 11mm Extension Cable is designed to extend the reach of the 3300 XL Proximity Transducer System, allowing precise vibration and position measurements in industrial applications.

2. Can the cable be used in high-vibration environments?

   • Yes, the extension cable is built to withstand high-vibration environments, which makes it ideal for use in heavy machinery and industrial monitoring systems.

3. What is the maximum length available for the extension cable?

   • The 3300 XL 11mm Extension Cable is available in various lengths, with the most common being 8.0 meters (26.2 feet).

4. Does the cable come with an armored option?

   • Yes, the cable can be purchased with an optional armored design, which provides additional protection against environmental factors such as physical damage or corrosion.

5. Is the extension cable compatible with all models of the 3300 XL Proximity Transducer System?

   • Yes, the 3300 XL 11mm Extension Cable is designed specifically for use with the 3300 XL Proximity Transducer System, ensuring seamless integration.

6. What is the maximum operating temperature for the extension cable?

   • The cable can operate within a temperature range of -51°C to +177°C (-60°F to +351°F), making it suitable for use in both extremely cold and hot environments.

7. What type of protection does the cable offer against environmental factors?

   • The cable features an optional armored jacket that protects against moisture, dust, and mechanical damage, ensuring reliable performance even in harsh conditions.

8. Can the extension cable be used outdoors?

   • Yes, the extension cable is suitable for outdoor use, particularly when the armored version is chosen for added protection against the elements.

9. What type of connector does the extension cable use?

   • The 3300 XL 11mm Extension Cable is designed to be compatible with the 3300 XL Proximity Transducer System, using the same connector type for a seamless connection.

10. Is there any warranty on the extension cable?

    • Yes, the cable comes with a 12-month warranty, which covers defects in material or workmanship.
