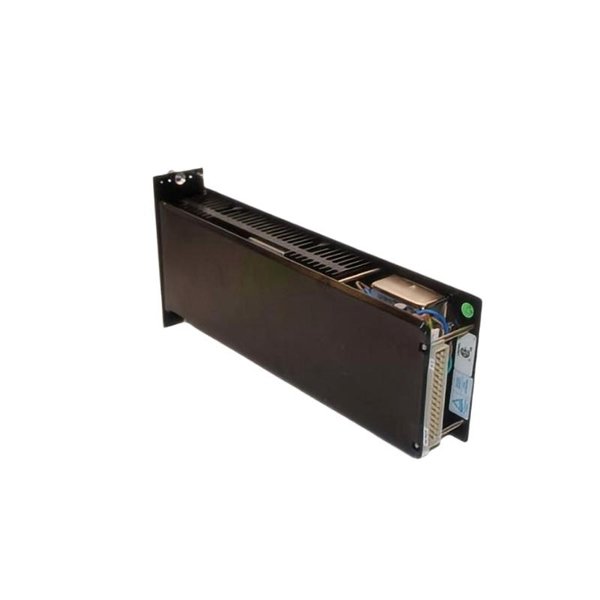

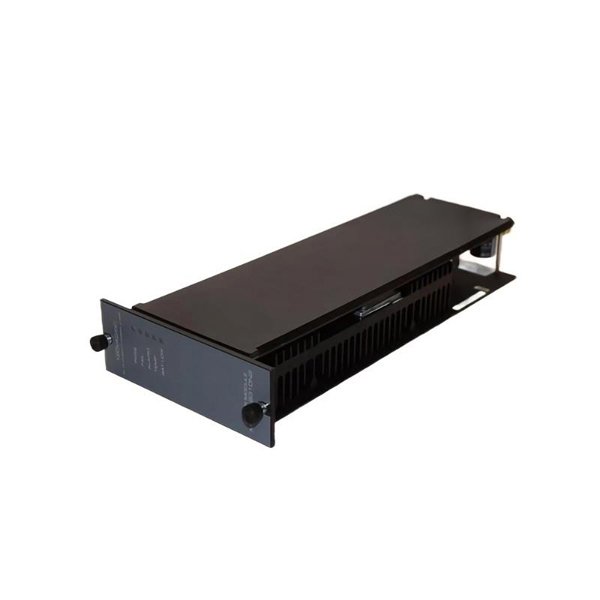

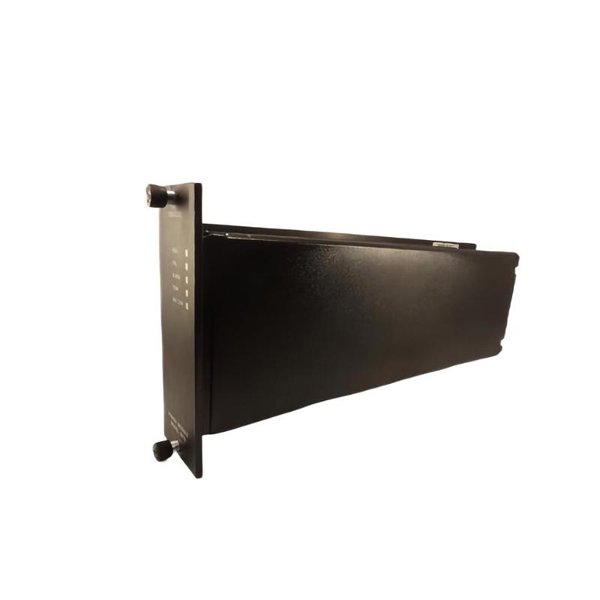

Triconex 8310 Power Supply Module

The Triconex 8310 Power Supply Module is a high-performance, fault-tolerant power supply unit specifically designed for the Triconex Tricon™ fault-tolerant control systems, used primarily in mission-critical industrial environments. This module provides regulated power to the controller chassis and is integral to maintaining uninterrupted control operations even in harsh and high-risk applications.

The 8310 module supports redundant configurations to ensure continuous power delivery. It is hot-swappable and integrates seamlessly with the Tricon main chassis. Built for environments where safety, reliability, and uptime are non-negotiable, the 8310 meets stringent industry standards, including those for safety instrumented systems (SIS).

Its robust architecture ensures compliance with IEC 61508 and ISA/IEC 61511 standards for Safety Integrity Level (SIL) 3 applications. This makes it suitable for deployment in oil and gas, chemical, power generation, and other industries where process safety is paramount.

Product Specifications

Applications

The Triconex 8310 is widely used in various industrial automation and safety-critical applications, including:

• Oil & Gas (Upstream/Downstream)

  For wellhead control, pipeline monitoring, and refining processes.

• Chemical and Petrochemical Plants

  Ensures safe operation in high-risk chemical production environments.

• Power Generation Facilities

  Used for turbine control, boiler management, and emergency shutdown systems.

• Pharmaceutical Manufacturing

  Supports process control in cleanroom and regulated production facilities.

• Water and Wastewater Treatment

  Helps maintain process stability and environmental compliance.

• Mining and Metals

  Ensures safety in hazardous extraction and smelting processes.

Product Advantages

• Redundant Operation: Offers N+1 redundancy to ensure uninterrupted power delivery to critical control systems.

• SIL 3 Certified: Fully compliant with international safety standards for high-integrity applications.

• Hot Swappable: Can be replaced without shutting down the system, minimizing operational downtime.

• Compact Design: Space-saving footprint ideal for modular control cabinets.

• Durable and Reliable: High MTBF rating ensures long operational life in extreme industrial environments.

• Real-Time Monitoring: Integrated diagnostics and status indicators simplify maintenance and improve visibility.

• Wide Input Range: Accepts a broad AC input voltage range, enhancing global compatibility.

• Low Heat Generation: Efficient design minimizes heat output, reducing cooling requirements.

Frequently Asked Questions (FAQ)

1. Q: What type of power input does the Triconex 8310 support?

   A: The module supports AC power input ranging from 90 to 264 VAC at 47–63 Hz.

2. Q: Is the 8310 power supply module hot-swappable?

   A: Yes, it can be swapped without interrupting system operation.

3. Q: What certifications does the Triconex 8310 have?

   A: It is certified for SIL 3, CE, UL, CSA, FM, and ATEX compliance.

4. Q: Can the 8310 module work in a redundant configuration?

   A: Absolutely. It supports N+1 redundancy for maximum reliability.

5. Q: What is the output voltage of the 8310 module?

   A: It provides both +5 VDC and +24 VDC regulated outputs.

6. Q: What type of systems is this power supply designed for?

   A: It is designed specifically for Triconex Tricon fault-tolerant control systems.

7. Q: What are the physical dimensions of the 8310?

   A: The unit measures 369 x 156 x 88 mm.

8. Q: What is the weight of the Triconex 8310?

   A: 3.67 kg.

9. Q: What is the cooling method used?

   A: It is convection-cooled and does not require fans.

10. Q: How long is the expected lifetime (MTBF) of the 8310?

    A: It has an MTBF greater than 250,000 hours under normal operating conditions.
