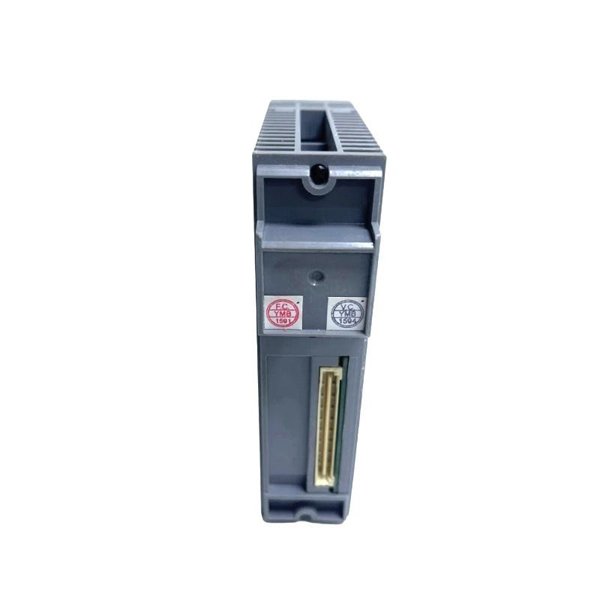

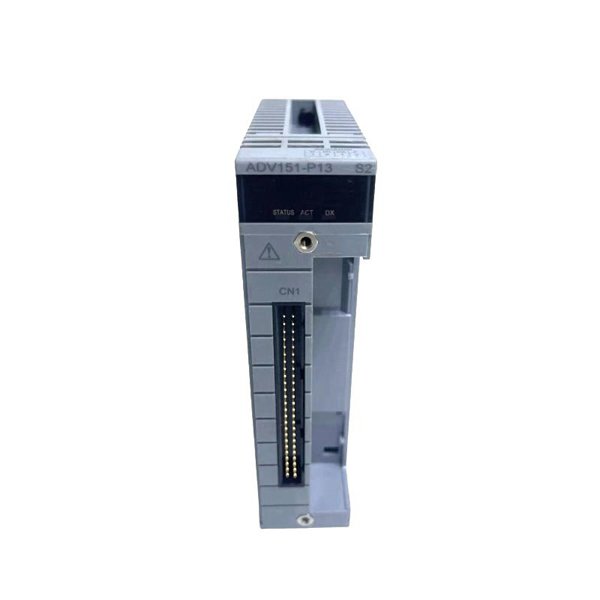

Yokogawa ADV151-P13/D5A00 Digital Input Module

The Yokogawa ADV151-P13/D5A00 Digital Input Module is a robust, high-accuracy module designed for precise acquisition of digital field signals in process control systems. It belongs to the CENTUM series of Yokogawa’s Distributed Control System (DCS) platform and is widely recognized for its high reliability, fast response, and strong noise immunity.

This module is specifically engineered to receive signals from switches, relays, proximity sensors, and other discrete devices, providing a stable interface between field equipment and the control processor. The ADV151-P13/D5A00 features optical isolation to protect the control system from electrical noise, voltage surges, and transient faults.

The unit supports quick installation and hot-swapping, making it ideal for critical industrial applications where downtime is unacceptable. Its rugged build and compliance with international safety standards make it suitable for use in demanding environments such as oil and gas facilities, chemical plants, and power generation sites.

Product Parameters

Product Applications

The Yokogawa ADV151-P13/D5A00 is designed to be versatile and adaptable to different control system needs, making it suitable for a wide range of applications, including:

• Process Control Systems – Reading discrete signals from field devices for process automation.

• Emergency Shutdown Systems – Monitoring safety-critical inputs for immediate protective action.

• Power Generation Control – Supervising generator protection systems, turbine status, and breaker positions.

• Oil & Gas Facilities – Tracking the operation of pumps, valves, and compressors.

• Chemical & Petrochemical Plants – Detecting equipment states and alarms in hazardous environments.

• Infrastructure Automation – Managing signal acquisition in transportation, water treatment, and utility systems.

Product Advantages

• High Signal Accuracy – Provides stable and precise digital input reading.

• Fast Processing – Low latency ensures real-time response to input changes.

• Rugged Design – Built to operate reliably under harsh industrial conditions.

• Electrical Isolation – Prevents damage from surges and electrical noise.

• Compact Size – Optimizes panel space usage.

• Hot-Swappable Capability – Replacement without system shutdown.

• Low Power Consumption – Energy-efficient design with minimal heat generation.

• Proven Compatibility – Seamless integration with Yokogawa CENTUM systems.

FAQ

1. How many channels does the ADV151-P13/D5A00 support?

It supports 16 isolated digital input channels.

2. What is the nominal input voltage for this module?

The nominal input voltage is 24 VDC, with an acceptable range of 19–32 VDC.

3. Is the module capable of reading dry contact inputs?

Yes, it can read both dry contact and voltage input signals.

4. How fast can this module detect a signal change?

It has a response time of ≤ 5 milliseconds.

5. Does it provide optical isolation for all inputs?

Yes, optical isolation is implemented between field wiring and logic circuits.

6. Can it be used in Yokogawa CENTUM VP and CS 3000 systems?

Yes, it is fully compatible with both systems.

7. Can the module be replaced while the system is running?

Yes, it supports hot-swapping.

8. What diagnostic features does it include?

It provides channel status monitoring and error detection functions.

9. Does it require an external power supply for field inputs?

Yes, an external 24 VDC supply is required for voltage-type inputs.

10. Is it resistant to high humidity environments?

Yes, it operates in environments up to 95% RH (non-condensing).
