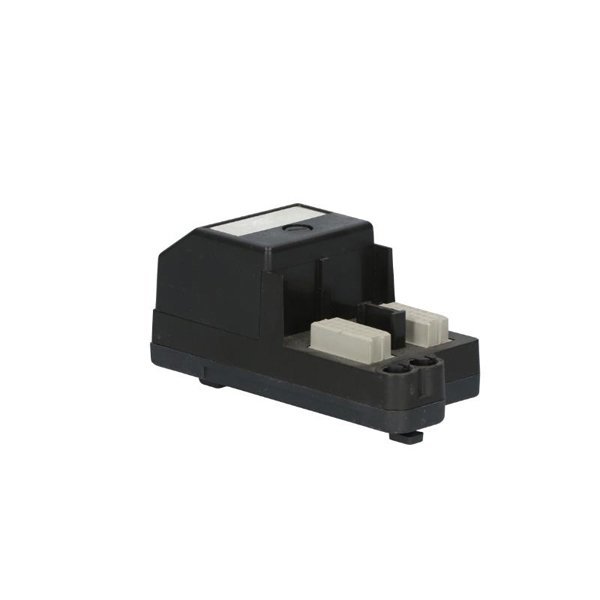

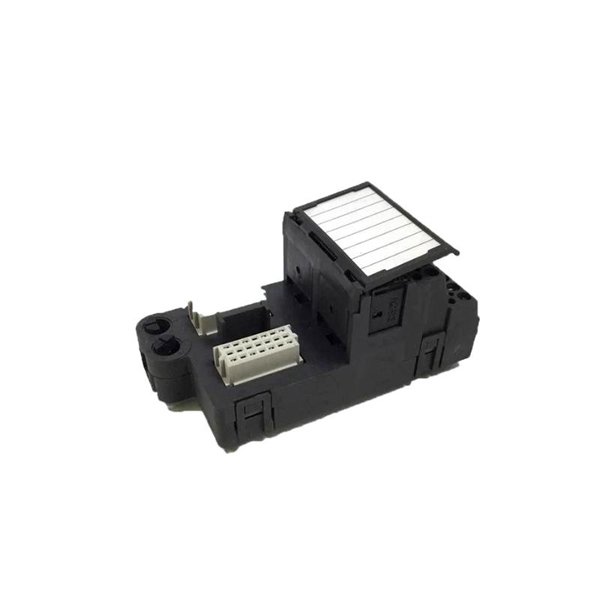

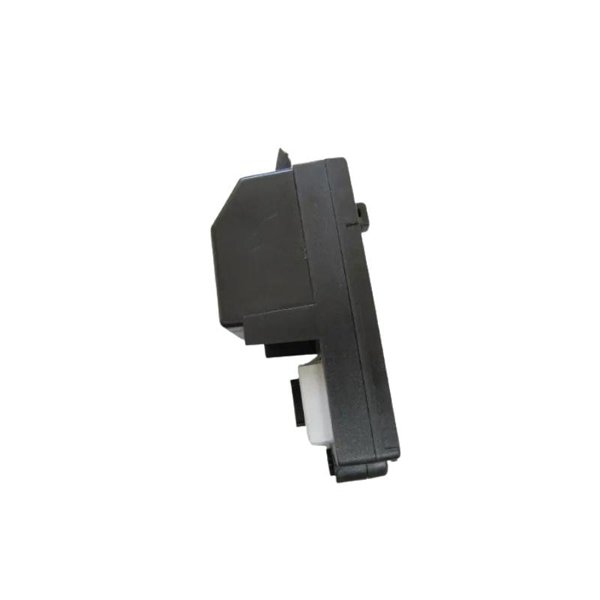

Emerson KJ4001X1-CE1 Mass Terminal Block 16 Pin

The Emerson KJ4001X1-CE1 Mass Terminal Block (16 Pin) is an industrial-grade terminal block used extensively in automation systems powered by the DeltaV™ distributed control system (DCS). This terminal block acts as a critical interface component between field wiring and the I/O cards of the Emerson DCS. Its robust design and reliable connectivity ensure stable operations in high-demand process environments such as oil and gas, petrochemical, energy, and pharmaceuticals.

The KJ4001X1-CE1 offers efficient plug-and-play capabilities, reducing installation and maintenance time. Its modular nature and high-density pin configuration enable compact and clean wiring architecture in control panels. This terminal block supports hot-swappable operations when integrated with DeltaV I/O cards, which enhances system uptime during maintenance activities.

Technical Specifications

Product Applications

The Emerson KJ4001X1-CE1 is ideal for use in control system infrastructures requiring modular and safe terminal blocks for signal routing. Application industries include:

• Oil & Gas: For signal transmission in pipeline and drilling automation systems.

• Petrochemicals: For safe wiring in hazardous zone control environments.

• Power Generation: Employed in turbine and generator control systems.

• Pharmaceutical Manufacturing: Used in batch processing controls.

• Water Treatment Plants: Facilitates signal communication in filtration and distribution control.

• Food & Beverage Automation: Provides robust wiring for hygiene-sensitive automation.

Product Advantages

1. High Signal Integrity

   Ensures minimal signal loss and electrical noise interference.

2. Modular Design

   Simplifies maintenance and replacement without shutting down the entire system.

3. Time-Saving Installation

   Fast wiring due to pre-marked terminals and standardized spacing.

4. Durability

   Built with industrial-grade flame-retardant and corrosion-resistant materials.

5. Compatibility

   Fully compatible with DeltaV I/O cards and control cabinets.

6. Hot Swappable Interface

   Maintenance or component replacement can be done while the system is live.

7. Space Optimization

   16-pin density in a compact design reduces panel clutter.

8. Safety Certified

   Meets CE, UL, and RoHS standards, making it compliant in global installations.

FAQ

1. Q: What system is the KJ4001X1-CE1 compatible with?

   A: It is designed specifically for Emerson’s DeltaV™ distributed control system.

2. Q: Is the terminal block suitable for hazardous areas?

   A: Yes, it supports use in Class 1 Division 2 and ATEX Zone 2 environments when installed correctly.

3. Q: Can this be installed on any DIN rail?

   A: Yes, it is DIN-rail compatible for quick and secure mounting.

4. Q: Are the terminal pins screw or spring-loaded?

   A: It uses screw-type terminals for secure, vibration-resistant connections.

5. Q: What is the terminal block made of?

   A: It is made from flame-retardant thermoplastic housing with copper alloy contacts.

6. Q: How do I replace the terminal block during live operation?

   A: Thanks to hot-swapping support, you can unplug the block and replace it without powering down the system.

7. Q: Does Emerson provide wiring documentation?

   A: Yes, complete wiring diagrams and installation guides are provided in the user manual.

8. Q: Can I use this with analog and digital signals?

   A: Yes, it supports both analog and discrete signals routed through the I/O cards.

9. Q: What is the expected lifespan?

   A: With proper installation, it has a service life exceeding 10 years under normal conditions.

10. Q: Is there any special maintenance required?

    A: Only periodic visual inspection and tightening of screws to ensure secure connections.
