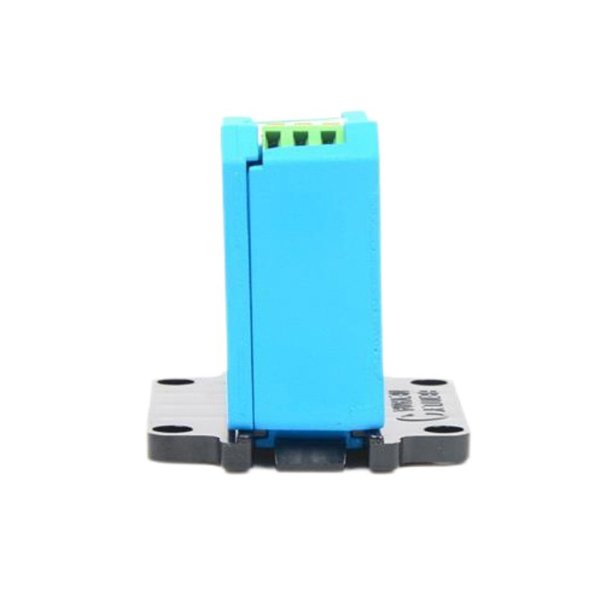

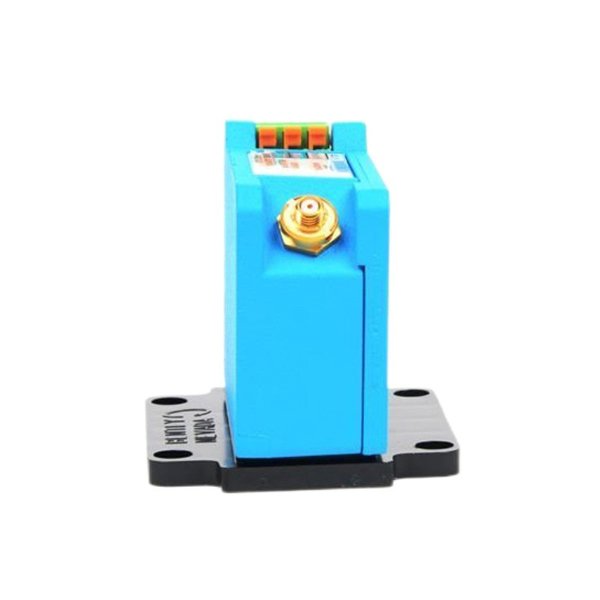

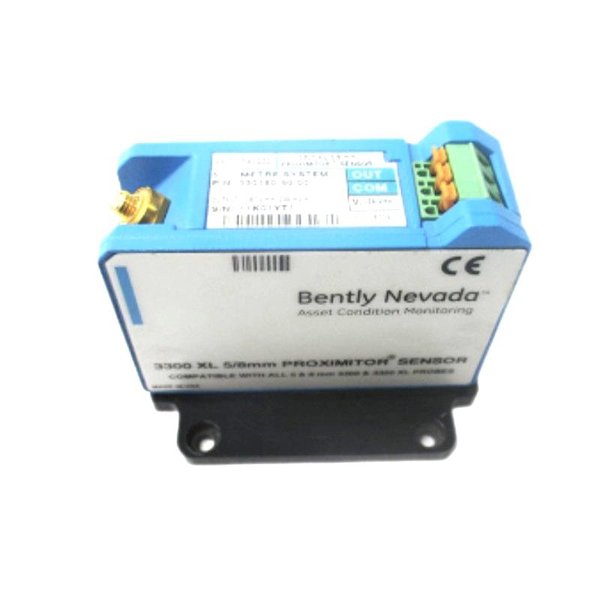

Bently Nevada 330180-50-00 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-50-00
Product Type:3300 XL Proximitor Sensor
Origin:USA
Total Length:5.0 meters
Weight:0.246 kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The 330180-50-00 is part of the 3300 XL 8 mm Proximity Transducer System from Bently Nevada. This system measures both static (position) and dynamic (vibration) displacements of rotating machinery components. It includes a proximity probe, extension cable, and a Proximitor sensor, offering high accuracy, wide temperature stability, and full compliance with API 670 standards.
Applications
-
Steam, gas, and hydro turbine vibration monitoring
-
Position measurement in fluid-film bearing machines
-
Keyphasor reference and rotational speed detection
-
Overspeed protection systems
-
General-purpose machinery protection in hazardous zones
Advantages
-
Full API 670 compliance: Ensures suitability for demanding industrial standards
-
RFI/EMI immunity: Ideal for installations without shielded conduit
-
ClickLoc connectors: Tool-free, secure, and corrosion-resistant
-
SpringLoc terminal strips: Fast wiring with no screw-loosening risk
-
Wide temperature tolerance: Extended temperature versions available
-
Backward compatibility: Fully interchangeable with 3300 non-XL systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330180-50-00 |
| System Type | 3300 XL 8 mm Proximitor Sensor |
| Total System Length | 5.0 meters |
| Output Scale | 200 mV/mil (7.87 V/mm) |
| Linear Range | 2 mm (80 mils) |
| Power Supply | -17.5 to -26 Vdc |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Operating Temperature (Probe) | -52°C to +177°C (standard), +218°C (ETR tip) |
| Frequency Response | 0–10 kHz, ±3 dB |
| Minimum Shaft Diameter | 50.8 mm |
| Mounting | Panel mount |
| Material | Sensor: Aluminum; Connectors: Gold-plated brass |
| Weight | 0.246 kg (Sensor only) |
| Certifications | SIL 2/3, ATEX, CSA, CE, RoHS, FCC compliant |
| Ingress Protection | IP54 when properly installed |
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330180-50-00 Proximitor Sensor?
A1: It converts the signal from a proximity probe into a voltage proportional to shaft position or vibration.
Q2: Is the 330180-50-00 compliant with API 670 standards?
A2: Yes, it fully complies with API 670 in mechanical design and performance.
Q3: Can the sensor be used in hazardous areas?
A3: Yes, it is certified for use in Zone 0, Zone 2, and Class I/II/III Div 2 areas.
Q4: What is the typical output of the system?
A4: 200 mV/mil over a linear range of 2 mm.
Q5: What makes the ClickLoc connector advantageous?
A5: It clicks when securely connected, requires no tools, and prevents loosening.
Q6: Can this sensor be installed on DIN rails?
A6: No, this specific -50 version is for panel mounting only.
Q7: What is the recommended target material?
A7: AISI 4140 steel; other calibrations are available upon request.
Q8: What is the total length and weight of this sensor unit?
A8: 5.0 meters and approximately 0.246 kg.
Q9: Can the probe and cable be replaced separately?
A9: Yes, the system allows full interchangeability of all three components.
Q10: Is it compatible with older 3300 non-XL components?
A10: Yes, but performance will be limited to non-XL specifications.
