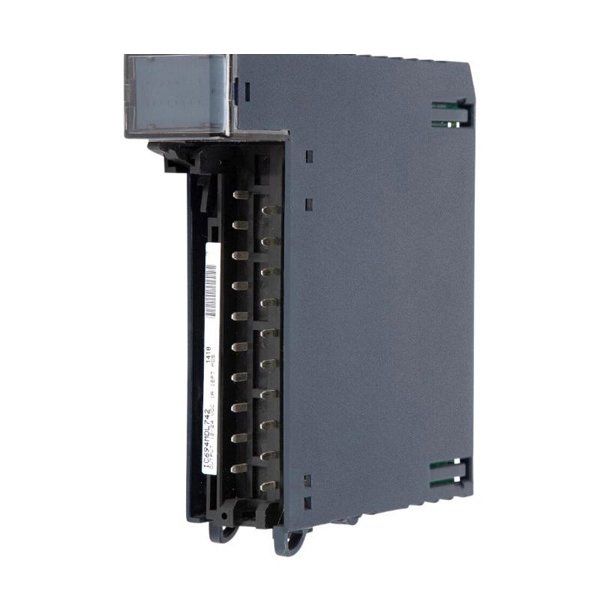

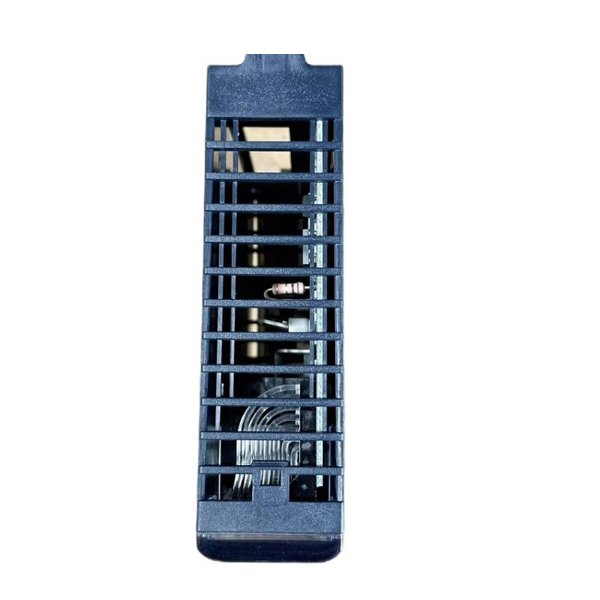

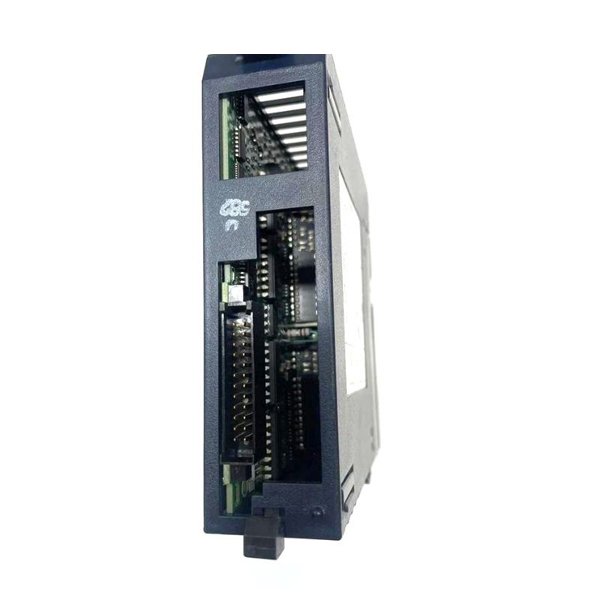

General Electric IC694MDL742B Voltage output Module

The GE IC694MDL742B is a versatile and reliable discrete output module designed for use in various industrial automation systems. It is part of the GE Fanuc series of programmable logic controllers (PLCs), and it integrates seamlessly into GE’s VersaMax PLC systems. The IC694MDL742B module provides 16 output channels, offering both flexibility and precision in controlling external devices, making it ideal for applications in process control, manufacturing, and automated systems.

Product Specifications

Below is a detailed table of the GE IC694MDL742B specifications:

Product Applications

The GE IC694MDL742B module is designed for use in industrial automation and control systems. It is commonly applied in:

• Manufacturing Automation: For controlling motors, solenoids, and other devices.

• Process Control: To manage outputs for valves, actuators, and pumps.

• Building Automation: Used in controlling HVAC systems, lighting, and security systems.

• Machine Control: Ideal for industrial machinery requiring output control.

This module is compatible with a wide range of PLCs and industrial equipment, enabling smooth integration into various automation processes.

Product Advantages

1. High Reliability: The IC694MDL742B module is built with industrial-grade components, ensuring long-lasting operation and minimal downtime in critical systems.

2. Flexibility: With 16 discrete outputs, the module offers significant control over a variety of external devices, enhancing the system’s versatility.

3. Ease of Integration: The module is designed for easy installation into GE’s VersaMax PLC systems, reducing setup time and simplifying troubleshooting.

4. Compact Design: Its compact size makes it ideal for installations where space is a constraint, while still offering high functionality.

5. High-Performance: With a 24V DC voltage rating and a current rating of 0.5A per output, the IC694MDL742B delivers reliable performance under various load conditions.

Frequently Asked Questions (FAQ)

Q1: What is the voltage requirement for the GE IC694MDL742B?

A1: The IC694MDL742B module operates on a 24V DC voltage rating, which is standard for most industrial applications.

Q2: How many outputs does the IC694MDL742B have?

A2: The module provides a total of 16 discrete outputs, making it suitable for controlling a variety of devices in industrial systems.

Q3: What is the maximum current rating for each output channel?

A3: Each output channel of the IC694MDL742B can handle up to 0.5A of current.

Q4: Can the IC694MDL742B be used in high-temperature environments?

A4: Yes, the module can operate in temperatures ranging from 0°C to 60°C and can be stored at temperatures from -40°C to 85°C.

Q5: What certifications does the GE IC694MDL742B have?

A5: The IC694MDL742B is UL, CE, and RoHS compliant, ensuring it meets industry standards for safety and environmental impact.

Q6: What is the weight and size of the GE IC694MDL742B?

A6: The module weighs 0.349 kg and has dimensions of 34 x 145 x 140 mm, making it compact and easy to integrate into systems with limited space.

Q7: How is the IC694MDL742B mounted?

A7: The module can be mounted on a DIN rail or directly onto a panel, providing flexibility in installation.

Q8: Can this module be used with other brands of PLCs?

A8: While the IC694MDL742B is designed for GE VersaMax PLC systems, it may also work with other PLCs that support standard discrete I/O modules. However, compatibility should be confirmed before installation.

Q9: Is there any protection for overcurrent or short-circuit conditions?

A9: The IC694MDL742B is designed to be robust, but it’s recommended to use external fuses or protective devices to prevent damage from overcurrent or short-circuit conditions.

Q10: What are the typical industries that use the IC694MDL742B?

A10: The module is used in various industries, including manufacturing automation, process control, machine control, and building automation.
