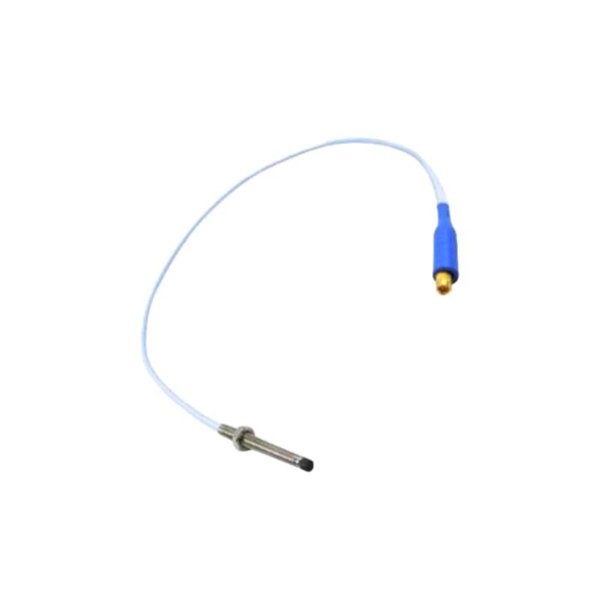

Bently Nevada 330104-08-15-10-02-05 3300 XL 8 mm Proximity Probes

The Bently Nevada 330104-08-15-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, a highly reliable, rugged, and industry-standard solution for non-contact vibration and position measurements. This system has been designed for critical rotating machinery, delivering precise displacement measurements by sensing the position of a target relative to the probe tip.

This particular model, with its 8 mm tip, is suitable for a wide range of industrial applications, especially in environments where equipment uptime, predictive maintenance, and accurate diagnostics are essential. Engineered for harsh industrial settings, the 330104 series ensures robust performance under extreme temperatures, high vibration, and contamination.

The 3300 XL series is backward compatible with previous Bently Nevada systems and is used extensively in turbomachinery monitoring, making it one of the most trusted sensors globally in the fields of oil and gas, power generation, and heavy industry.

Product Specifications

Applications

The 330104-08-15-10-02-05 probe is engineered for high-performance applications, particularly in environments where accurate vibration, position, or shaft displacement monitoring is vital. Common use cases include:

• Steam turbines

• Gas turbines

• Compressors

• Centrifugal pumps

• Gearboxes

• Motors and generators

• Rotating machinery in petrochemical plants

• Pulp and paper industry equipment

Product Advantages

High Reliability: Designed to withstand extreme industrial environments and offer long-term operational reliability.

Backward Compatibility: Compatible with older systems from Bently Nevada, allowing seamless upgrades.

Enhanced Environmental Protection: Sealed against contaminants such as oil and dust, ideal for industrial environments.

Precision Accuracy: Offers exceptional linearity and sensitivity, ensuring precise measurements.

Industry Standard: Widely accepted in vibration monitoring systems and predictive maintenance setups globally.

Flexible Configuration: Multiple lengths and cable configurations available to suit specific machine setups.

CE & RoHS Certified: Complies with modern regulatory standards for safety and environmental impact.

Wide Temperature Range: Operates reliably in environments ranging from freezing to high-heat industrial zones.

FAQ

1. What is the sensing range of the 330104-08-15-10-02-05 probe?

   This model is calibrated for a standard 8 mm tip and provides a linear sensing range of approximately 2 mm (80 mils).

2. Can I use this probe with a non-Bently system?

   While technically possible, optimal performance and compatibility are achieved when used with Bently Nevada monitoring systems.

3. Is it suitable for high-temperature applications?

   Yes, it operates reliably in temperatures up to +177°C (350°F).

4. What is the difference between 330104 and 330101 series?

   The 330104 offers different cable lengths and mounting thread options but follows the same 8 mm sensing principle.

5. Can it detect axial as well as radial displacement?

   Yes, it can monitor both axial and radial shaft movement depending on mounting orientation.

6. Is field calibration required?

   Field calibration is recommended during installation for optimal accuracy, especially if used with custom targets.

7. How long is the product lifecycle?

   With proper installation, the probe can last several years, even under harsh conditions.

8. Can I extend the cable beyond 10 feet?

   Extension cables are available, but the total system length should not exceed the calibrated distance.

9. Is the probe interchangeable with other XL probes?

   Yes, the probe is part of the 3300 XL series and is fully interchangeable within this family.

10. Does the product have explosion-proof certification?

    Some versions of the 3300 XL series are available with hazardous area approvals (check specific model certifications).
