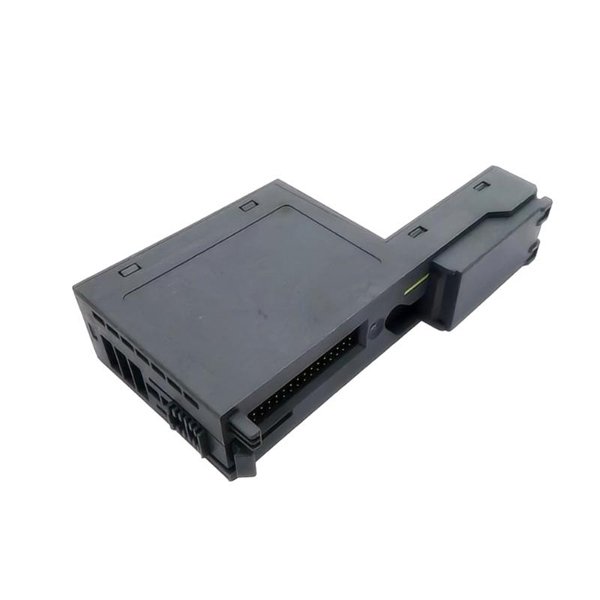

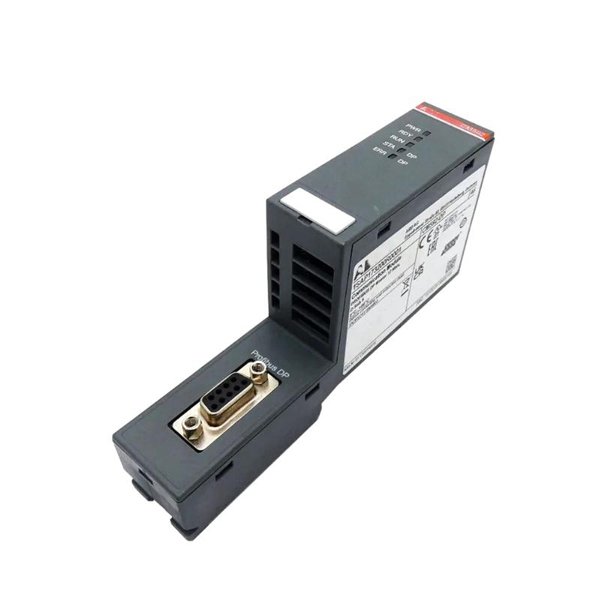

ABB CM582-DP-XC 1SAP372200R0001 PROFIBUS Communication Module

The ABB CM582-DP-XC 1SAP372200R0001 is a high-performance PROFIBUS communication module designed for seamless integration with ABB’s AC500 series PLCs. This communication interface enables reliable and efficient data exchange between the AC500 controllers and PROFIBUS DP networks, widely used in industrial automation systems.

Built with robust hardware and optimized firmware, the CM582-DP-XC module supports a wide range of PROFIBUS DP communication functions, including cyclic and acyclic data transfer. It is engineered to meet industrial standards for durability and electromagnetic compatibility, ensuring stable operation in harsh factory environments.

This module facilitates the expansion of control systems by allowing the integration of diverse PROFIBUS-enabled field devices such as remote I/O, drives, and sensors, enabling centralized and scalable automation solutions.

Product Specifications

Product Applications

• Industrial automation and process control systems requiring PROFIBUS DP communication.

• Integration of remote I/O devices in factory automation.

• Connection of variable frequency drives (VFDs), motor controllers, and sensors to ABB AC500 PLCs.

• Automation solutions in manufacturing plants, oil and gas, power generation, and water treatment.

• Distributed control systems (DCS) and supervisory control and data acquisition (SCADA) networks using PROFIBUS.

• Retrofitting existing control systems to PROFIBUS communication networks.

Product Advantages

• Reliable and Robust Communication: Designed for uninterrupted and error-free data transmission in demanding industrial environments.

• High-Speed Data Transfer: Supports data rates up to 12 Mbps, ensuring fast response times for critical control applications.

• Seamless Integration: Fully compatible with ABB AC500 PLCs and PROFIBUS DP devices, simplifying system design and maintenance.

• Wide Operating Conditions: Operates reliably under broad temperature and humidity ranges, ideal for harsh factory floors.

• Compact and Space-Saving: Slim design with DIN rail mounting saves valuable panel space.

• Easy Installation and Configuration: Comes with ABB’s intuitive software tools for fast setup and diagnostics.

• Certified Quality: Compliance with international standards guarantees safety and electromagnetic compatibility.

• Scalable Networking: Supports a wide range of PROFIBUS devices allowing flexible system expansions.

• Enhanced Diagnostic Capabilities: Built-in diagnostics simplify troubleshooting and reduce downtime.

• Energy Efficient: Low power consumption contributes to overall energy savings in automation systems.

Frequently Asked Questions (FAQ)

1. Q: What PROFIBUS standard does the CM582-DP-XC support?

   A: It supports PROFIBUS DP (Decentralized Peripherals), compliant with IEC standards.

2. Q: Can the module be used with PLCs other than ABB AC500?

   A: This module is specifically designed for ABB AC500 series and may not be compatible with other PLC brands.

3. Q: What is the maximum cable length supported by the communication module?

   A: The maximum PROFIBUS cable length is typically up to 1200 meters, depending on cable type and network topology.

4. Q: How is the module powered?

   A: It requires a 24 V DC power supply with a tolerance of ±20%.

5. Q: Does the module support hot swapping?

   A: No, the module does not support hot swapping; it should be installed with the system powered off.

6. Q: What diagnostic features are available?

   A: The module offers LED indicators and software diagnostics for communication status and errors.

7. Q: Is there any software needed for configuration?

   A: Yes, ABB’s dedicated AC500 programming tools support module configuration and network setup.

8. Q: What kind of mounting does the module require?

   A: It is designed for DIN rail mounting in control panels.

9. Q: What certifications does the CM582-DP-XC have?

   A: The module complies with CE and UL certifications, ensuring safety and EMC standards.

10. Q: Can the module operate in extreme industrial environments?

    A: Yes, it is rated for operation from -25°C to +60°C and humidity up to 95% non-condensing.
