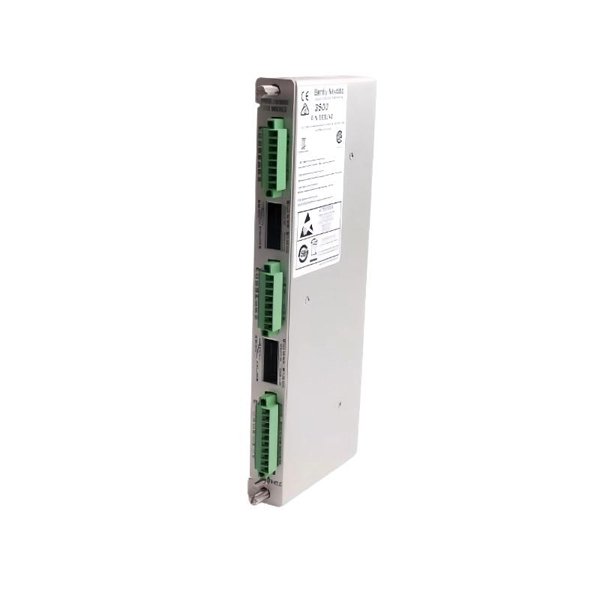

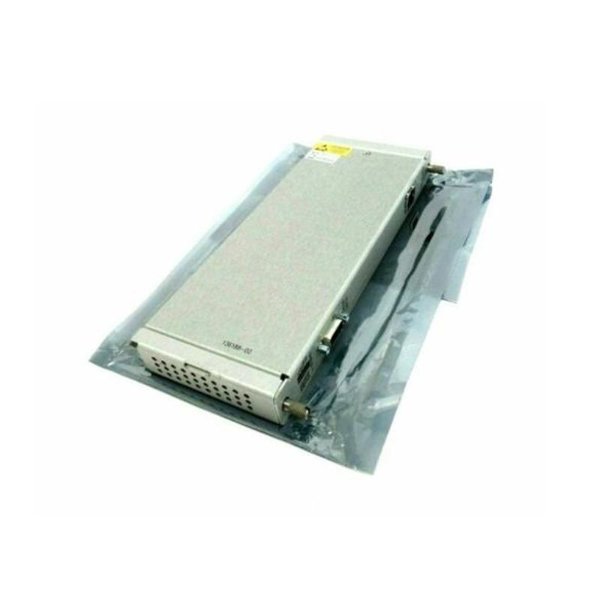

Bently Nevada 3500/32M 184631-02 4-Channel Relay Output Module

The Bently Nevada 3500/32M 184631-02 is a high-performance 4-channel relay output module designed to meet the needs of critical machinery protection and process control applications. This module is part of the Bently Nevada 3500 series, which is known for its robust and reliable monitoring solutions in harsh industrial environments. The 3500/32M 184631-02 enables fast relay switching and offers four independent channels for controlling external devices such as alarms, shutdown systems, and other essential equipment.

Built for use in industries like oil and gas, power generation, and manufacturing, the 3500/32M provides real-time data-driven control, ensuring that external systems are activated or deactivated based on monitored conditions. Whether used in machinery protection or process control, this module enhances safety, reliability, and operational efficiency.

With a compact and durable design, the 3500/32M 184631-02 is engineered for long-term performance, minimizing downtime and maintenance costs. The integration of this relay module into an existing control system ensures seamless operation and reliable response in the most demanding environments.

Product Specifications

Product Applications

The Bently Nevada 3500/32M 184631-02 is suitable for various applications across industries requiring real-time control and protection of machinery. Some of the primary applications include:

1. Machinery Protection

   The 3500/32M is designed to work seamlessly with machinery protection systems. By instantly triggering alarms, shutdown systems, or cooling systems based on sensor data, it prevents costly damage to critical machinery, thereby reducing downtime.

2. Process Control Systems

   In process control systems, the module is used to control external devices such as valves, pumps, and fans. By activating these devices in real-time, the 3500/32M ensures smooth, safe, and efficient operation across various processes.

3. Turbine and Compressor Protection

   The 3500/32M is ideal for turbine and compressor protection, where it can trigger shutdowns or alarms in case of excessive vibrations, temperature fluctuations, or abnormal pressures. This ensures that turbines and compressors are protected from severe damage.

4. Alarm and Warning Systems

   The module’s relay channels can be used to trigger alarms, warning systems, or even activate external safety equipment when critical conditions are detected, alerting operators to take immediate corrective action.

5. Data Acquisition and Monitoring

   The 3500/32M can be integrated into data acquisition systems, where it controls the activation of logging equipment. This ensures that vital process data is captured for future analysis and decision-making.

6. Remote Control and Monitoring

   For applications requiring remote control, the module can be used to monitor and control devices in hazardous or remote locations, providing operators with the ability to maintain control from a centralized location.

Product Advantages

1. Fast Relay Switching

   The 3500/32M 184631-02 provides a relay switching time of less than 10 ms, ensuring immediate response to changes in monitored parameters. This rapid switching is essential for real-time protection and control.

2. Four Independent Channels

   With four independent channels, the 3500/32M offers flexibility in controlling multiple devices simultaneously. Each channel can be configured for different parameters, providing customization for various applications.

3. Wide Temperature Range

   The 3500/32M operates in temperatures ranging from -40°C to +70°C, making it suitable for installation in both extremely cold and high-temperature environments.

4. Compact and Robust Design

   Despite its compact dimensions (241 x 24.4 x 99.1 mm), the 3500/32M is built for durability. It is designed to withstand the rigors of industrial environments, providing long-term reliability and reduced maintenance needs.

5. Electrical Isolation Between Channels

   The module provides 250V AC isolation between its relay channels, which ensures that any electrical faults or interference on one channel will not affect others, increasing system stability and safety.

6. LED Status Indicators

   Each relay channel is equipped with an LED status indicator, providing clear visual feedback about the operation of the module. This allows for easy monitoring and troubleshooting during operations.

7. Easy Installation and Integration

   The 3500/32M can be easily mounted on a DIN rail or directly onto a panel, making installation and integration into existing systems quick and straightforward.
