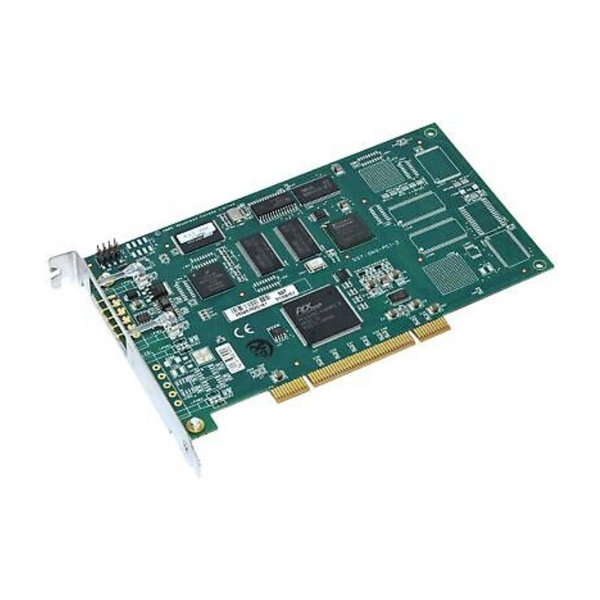

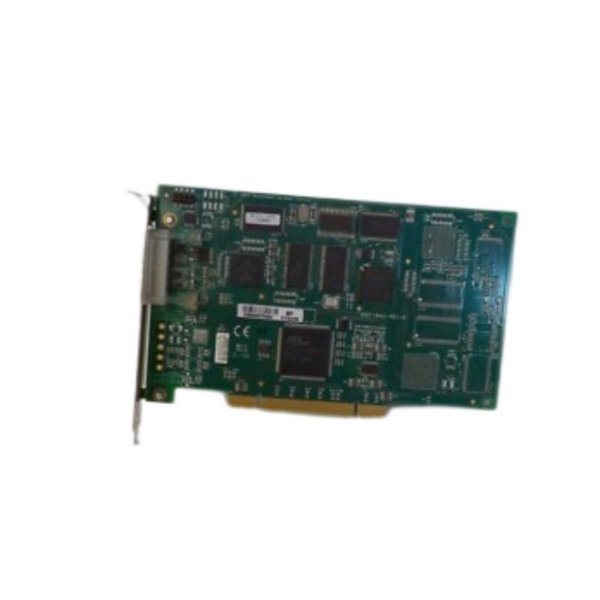

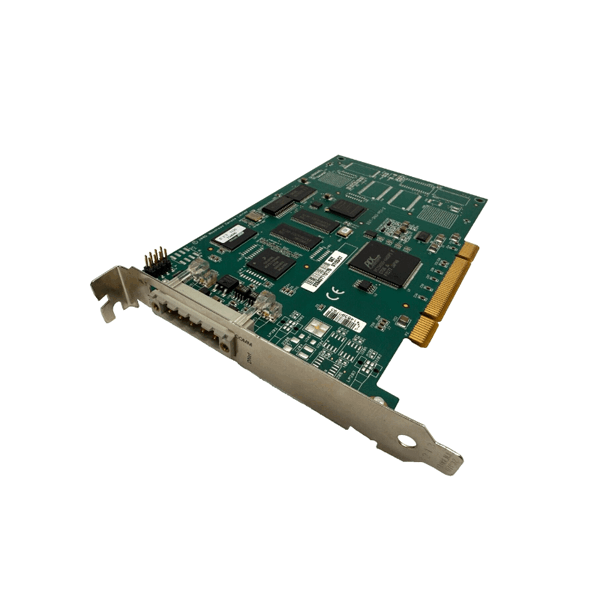

ABB DSQC 658 3HAC025779-001 Robot control board

This robust unit ensures synchronized control over robot axes and integrates seamlessly into complex automation environments such as automotive assembly, electronics manufacturing, metal fabrication, and packaging. The DSQC 658 enhances robot performance, allowing for real-time motion analysis and high-speed data acquisition from encoders.

Technical Specifications

Product Advantages

1. High-Precision Encoder Feedback: The DSQC 658 allows for detailed signal decoding, contributing to improved positional accuracy for robotic arms.

2. Reliable Integration: Seamlessly integrates with ABB IRC5 controllers and supports various types of encoders (incremental, absolute).

3. Compact and Durable Design: Engineered with a small form factor for easy installation within tight cabinet spaces while offering high durability under industrial conditions.

4. Enhanced Motion Control: Ensures consistent real-time feedback which improves robot axis synchronization and reduces movement errors.

5. Industrial Compatibility: Suitable for demanding environments, with a wide temperature tolerance and resistance to electrical noise.

6. Minimal Maintenance Requirements: Built for long-term reliability with low failure rates and easy diagnostics through ABB’s software tools.

Applications

• Robotics Motion Control: Crucial in managing feedback systems for industrial robots during assembly, painting, welding, and material handling.

• Automotive Manufacturing: Used in precision-driven robotic arms on production lines for tasks like body-in-white (BIW) assembly.

• Electronics Assembly: Ensures precise movement control for robotic tools handling delicate components.

• Logistics and Packaging: Supports high-speed robotic sorting, palletizing, and packaging operations.

• Metal Fabrication: Integrated in CNC-type robotic systems for cutting, grinding, or welding metals.

• Food and Beverage Automation: Used in sterile robotic operations requiring precise repeatability and high hygiene standards.

FAQ

Q1: What exactly does the DSQC 658 module do?

A1: It functions as an encoder interface card, processing signals from robot axes and transmitting feedback data to the robot controller for accurate positioning.

Q2: Is the DSQC 658 compatible with any ABB controller?

A2: No, it is specifically designed to operate with the ABB IRC5 controller series and may not be supported in legacy or newer controller platforms without proper interface adaptation.

Q3: How can I verify if the module is working correctly?

A3: You can perform diagnostics through the IRC5 FlexPendant or ABB RobotStudio software to view encoder readings and check signal integrity.

Q4: What types of encoders are supported?

A4: It supports both incremental and absolute encoders with standard industrial interface signals such as RS-422 or TTL.

Q5: Is field installation complex?

A5: No, it is designed for straightforward integration. Once physically mounted, most configuration is handled through ABB’s system software.

Q6: What is the average lifespan of the DSQC 658?

A6: When used in standard conditions, the module can reliably operate for 8–10 years without failure.

Q7: Can this module be repaired if damaged?

A7: In most cases, ABB recommends replacing the module rather than repairing, as internal diagnostics and calibration may be lost after disassembly.

Q8: Does it require firmware updates?

A8: No, it functions as a hardware interface and does not contain updateable firmware. System-level updates are handled via the IRC5 controller.

Q9: What certifications does it meet?

A9: The DSQC 658 complies with industrial EMC and safety standards used in robotic automation, including CE marking.

Q10: Can I use this module outside ABB robot systems?

A10: It is highly specialized for ABB systems. Use in third-party systems is not supported without detailed engineering modification.
