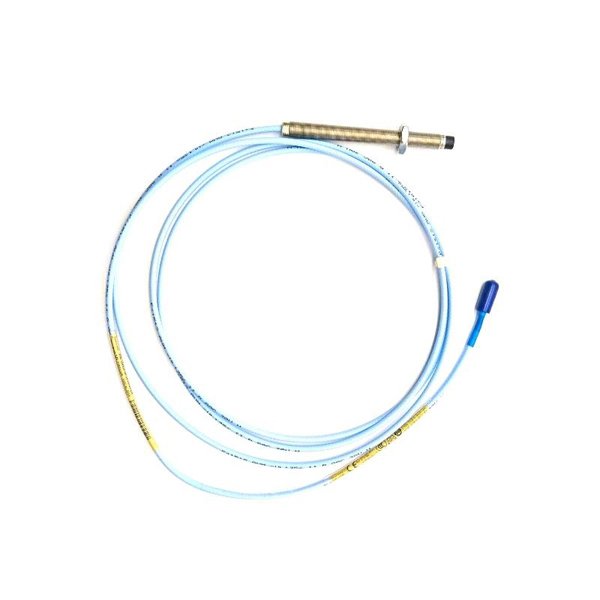

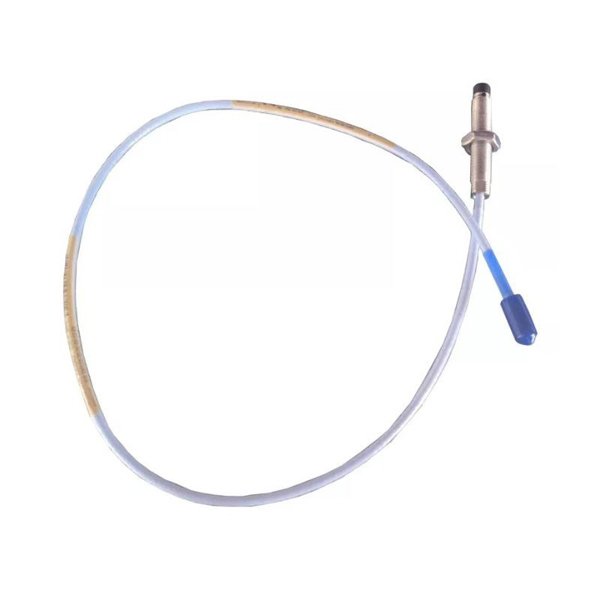

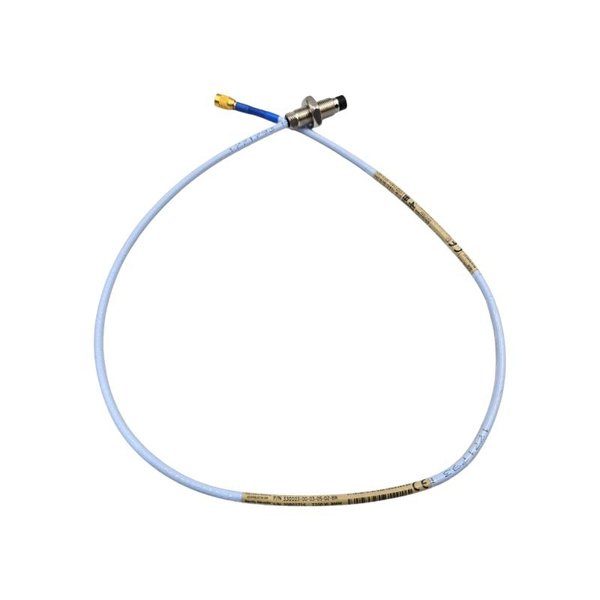

Bently Nevada 330103-00-14-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-14-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-14-10-02-05 is a high-performance 8 mm proximity probe from the 3300 XL series. It is engineered to measure both static position and dynamic vibration of rotating machinery. This probe features advanced robustness with improved RFI/EMI immunity, ensuring stable operation in harsh industrial environments. The modular design guarantees full interchangeability with other 3300 series components, simplifying maintenance.
Applications
-
Vibration monitoring on fluid-film bearing machinery
-
Shaft position measurements
-
Keyphasor reference and speed detection
-
Turbine and compressor monitoring
-
Applications requiring extended temperature ranges
Advantages
-
Fully compliant with API 670 standards
-
Backward compatible and interchangeable with 3300 series
-
Robust construction with TipLoc and CableLoc for durability
-
High immunity to electromagnetic interference
-
Easy installation with ClickLoc connectors
-
Suitable for both panel and DIN-rail mounting configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel AISI 303 or 304 |
| Total Length | 1.0 meter (3.3 feet) |
| Weight | 0.323 kg (0.71 lb) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Shaft Diameter (Min/Recommended) | 50.8 mm (2 in) / 76.2 mm (3 in) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature Option | Up to +218°C (+425°F) |
| Probe Cable | 75 Ω triaxial, FEP insulated |
| Maximum Tensile Strength | 330 N (75 lbf) probe to cable |
| Connectors | Gold-plated, ClickLoc |
FAQ
Q1: What is the primary function of this probe?
A1: It measures static position and dynamic vibration of machine shafts.
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is fully backward compatible with 3300 5 mm and 8 mm systems.
Q3: Does it comply with API standards?
A3: Yes, it meets API 670 requirements for linearity, accuracy, and stability.
Q4: What is the recommended shaft diameter?
A4: The recommended minimum shaft diameter is 76.2 mm (3 inches).
Q5: Can this probe be used at high temperatures?
A5: Yes, with the ETR option, it supports up to 218°C (425°F).
Q6: Are special tools required to install the connectors?
A6: No, the ClickLoc connectors require only finger-tight installation.
Q7: What mounting options are available?
A7: It can be panel-mounted or DIN-rail mounted using compatible sensors.
Q8: What kind of cables are used?
A8: Standard FEP-insulated triaxial cables, with optional FluidLoc for liquid sealing.
Q9: What is the linear measurement range?
A9: The linear range is 2 mm (80 mils) with high accuracy.
Q10: Does it resist electromagnetic interference?
A10: Yes, it has improved RFI/EMI immunity and complies with CE standards.
