Meggitt IP172 500-172-000-011 Interconnection Protection Mounting Kit
Item Number: IP172 500-172-000-011
Brand:Meggitt
Lead Time: In stock
Description: Interconnection Protection Mounting Kit
Payment: T/T
Product Description
IP172 500-172-000-011 is an Interconnection Protection Mounting Kit for use with TQxxx series (e.g., TQ4xx, TQ9xx) proximity sensor systems. It protects the micro-coaxial connector between the sensor cable and the EAxxx series extension cable.
This kit contains all the components necessary to install and assemble the IP172 interconnection protector. It can be ordered as an optional accessory for TQxxx and EAxxx assemblies, or retrofitted into existing TQxxx-based proximity measurement systems.
Specifications
|
Parameter |
Details |
| Part Number | IP172 500-172-000-011 |
|

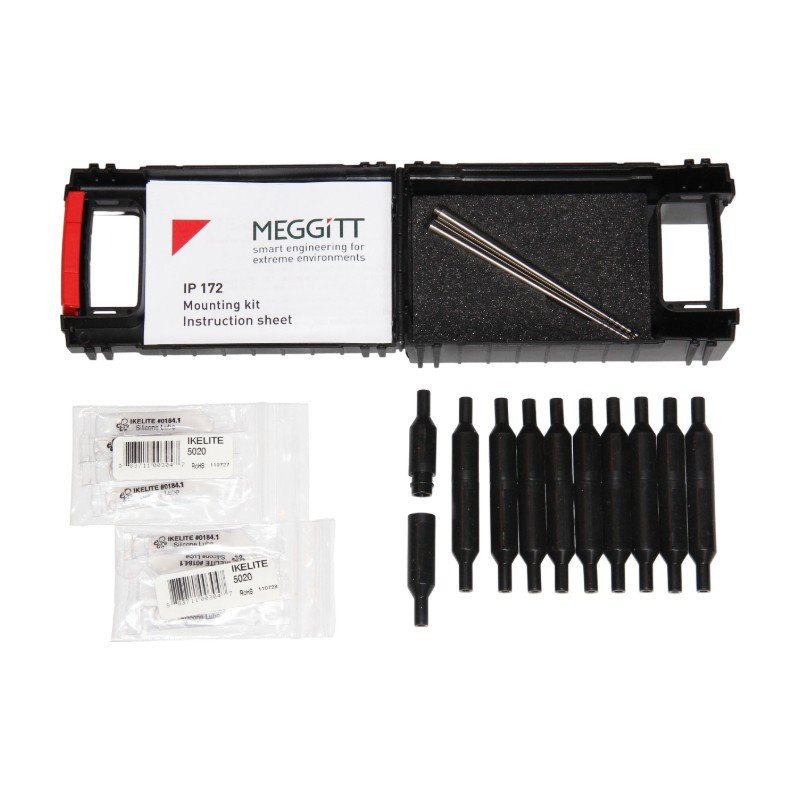

Kit contents |
1. Special installation tool for IP172 (one set, including male and female parts) 2. Fluorosilicone rubber interconnection protective sleeves for IP172 (several, including male and female parts) 3. Silicone grease lubricant (one tube) 4. Installation instructions (one copy) |
|
Material |
Fluorosilicone 60 Sh A. |
|
Colour |
Black |
|
Chemical resistance |
Extremely resistant to chemicals, fuels and solvents. Also resistant to fungus and UV/ozone. |
|
Cable outer diameter |
Ø 2.6 mm to Ø 3.6 mm |
Note: The male IP172 interconnection protector should be mounted on a TQxxx proximity sensor's integral cable.
Note: The female IP172 interconnection protector should be mounted on a EAxxx extension cable.
Function & Features

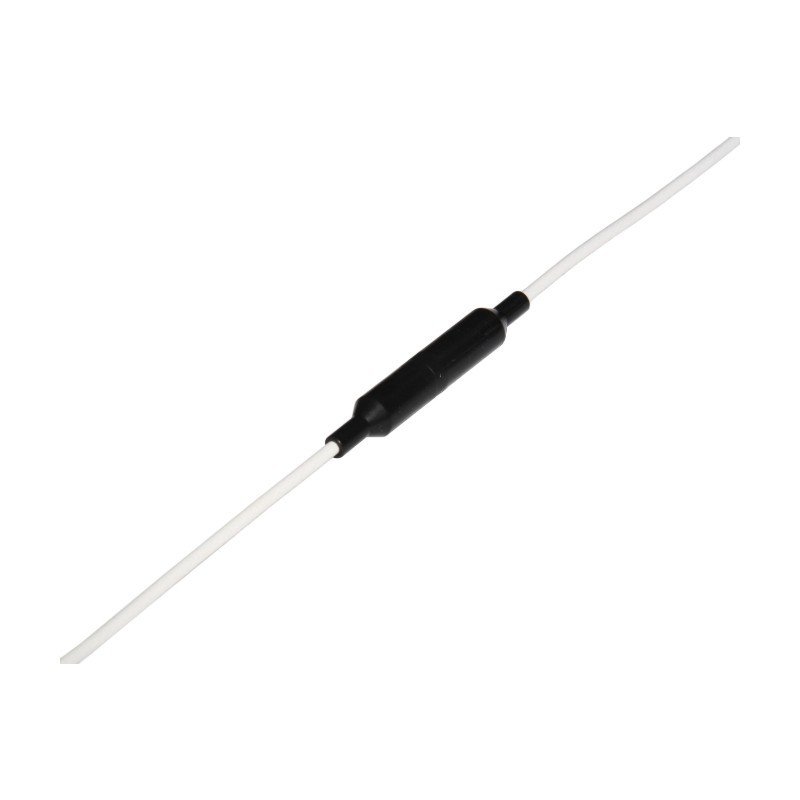

- The IP172 500-172-000-011 interconnect protector included in the kit is a protective sleeve made of fluorosilicone rubber. It consists of two male and female connectors. To install, secure each part to the rear of the micro coaxial connector on the cable to be connected. Once the cable is electrically connected through the connector, press the two parts of the protector together.
- The IP172 500-172-000-011 can be used with micro coaxial connectors and coaxial cables with diameters ranging from Ø 2.6 - Ø 3.6 mm.
- The IP172 500-172-000-011 utilizes a two-piece push-fit assembly method. Once the electrical connection is complete, the two parts are simply pushed together to fully enclose and protect the delicate connector area.
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
