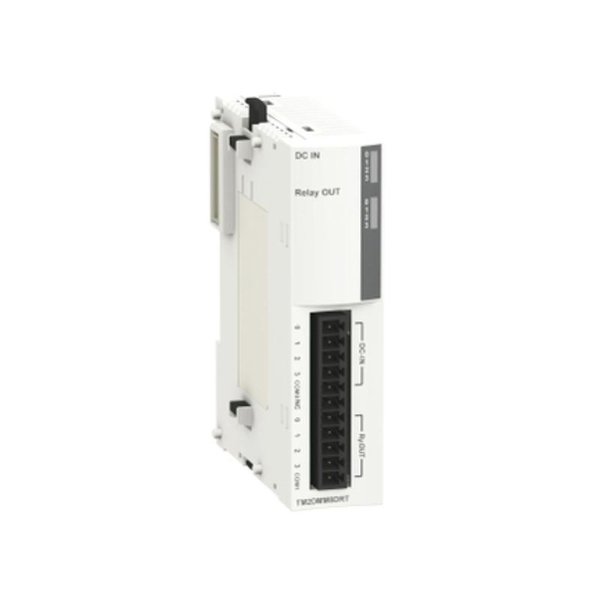

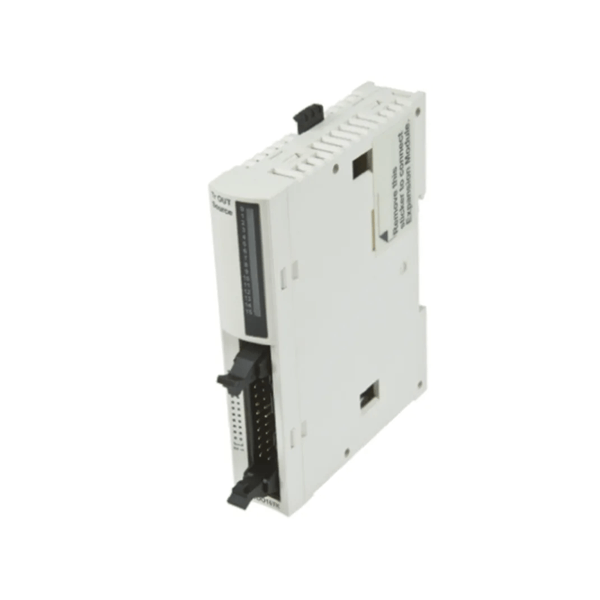

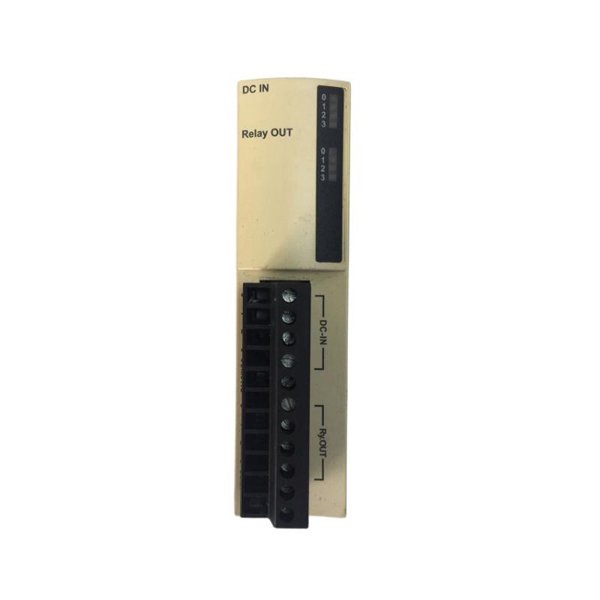

Schneider TM2DMM8DRT Discrete Input/Output Modules

The Schneider TM2DMM8DRT is a high-performance digital I/O module from the Telemecanique TM2 series, designed for industrial automation applications. This module offers reliable and precise control, making it ideal for a wide range of industrial environments. It is compatible with Modbus communication protocols and integrates seamlessly with Schneider Electric’s programmable logic controllers (PLCs).

Product Specifications

Product Applications

The TM2DMM8DRT is widely used in industrial automation systems, including:

• Manufacturing lines: For controlling conveyor belts, robotic arms, and assembly machines.

• Building automation: Managing lighting, HVAC systems, and access control.

• Energy management: Monitoring and controlling power distribution units.

• Water treatment plants: Automating pump controls and valve operations.

• Material handling: Enabling efficient warehouse automation.

Product Advantages

1. High Reliability: Built with industrial-grade components for long-term durability.

2. Easy Integration: Compatible with Schneider PLCs and Modbus networks.

3. Compact Design: Saves space in control cabinets.

4. Flexible Configuration: Supports both NO (Normally Open) and NC (Normally Closed) relay outputs.

5. Wide Temperature Range: Operates efficiently in harsh environments.

6. Quick Installation: DIN rail mounting simplifies setup.

Frequently Asked Questions (FAQ)

1. What is the input voltage range for the TM2DMM8DRT?

   The module operates at 24V DC.

2. Can this module be used with non-Schneider PLCs?

   Yes, it supports Modbus RTU, making it compatible with third-party controllers.

3. What is the maximum load current for relay outputs?

   Each relay supports up to 5A at 250V AC or 30V DC.

4. Is the TM2DMM8DRT suitable for outdoor use?

   No, its IP20 rating means it should be installed in protected enclosures.

5. How many modules can be connected in a single system?

   Up to 32 modules can be daisy-chained via Modbus.

6. Does it support hot-swapping?

   No, power must be disconnected before installation or removal.

7. What is the response time for inputs and outputs?

   Inputs respond within 10ms, and relays switch within 15ms.

8. Can the relay outputs handle inductive loads?

   Yes, but external suppression may be required for high inductive loads.

9. Is software required for configuration?

   Yes, Schneider’s EcoStruxure or similar Modbus configuration tools are needed.

10. What is the warranty period?

    Schneider typically offers a 1-year warranty for industrial modules.
