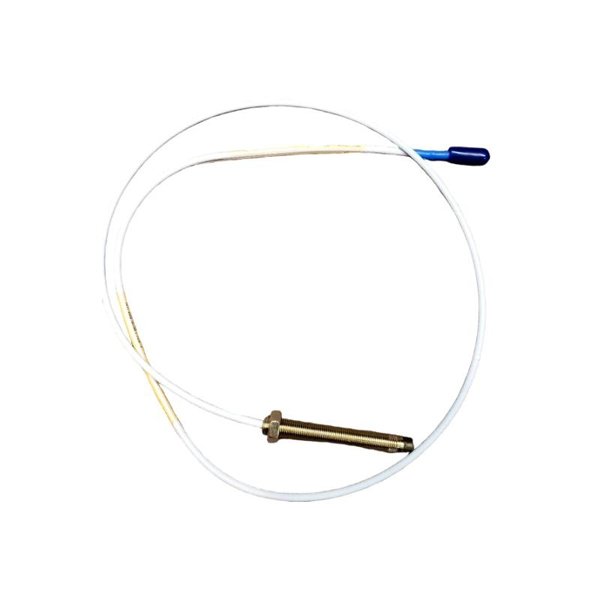

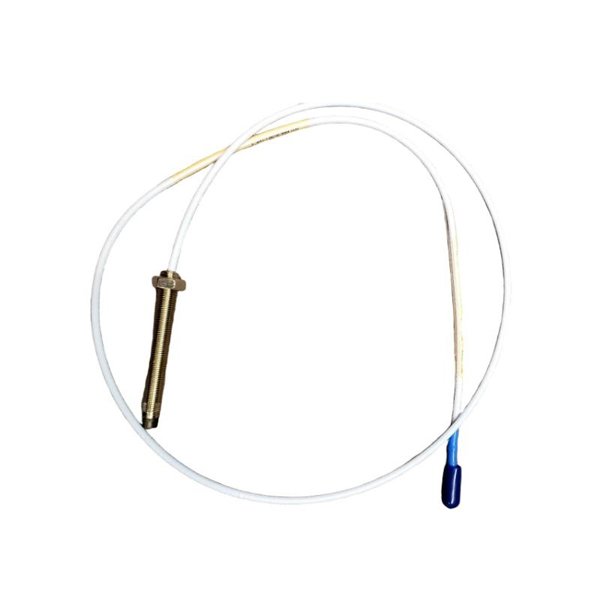

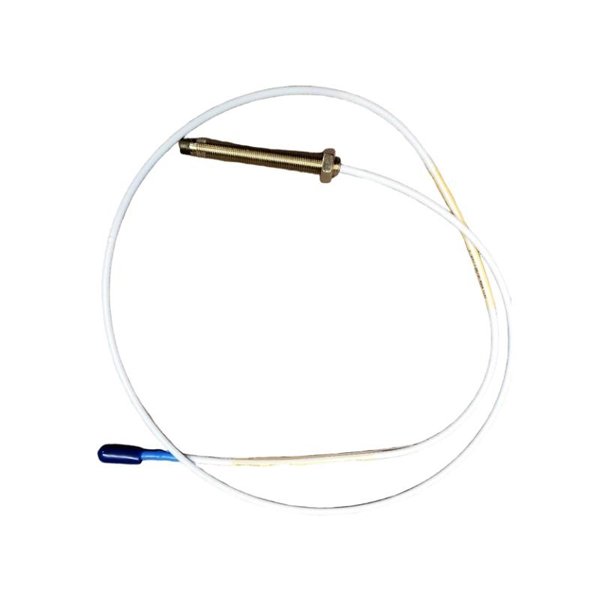

Bently Nevada 102044-00-28-10-02 Proximity Sensor

The Bently Nevada 102044-00-28-10-02 Proximity Sensor is a precision-engineered device designed for machinery condition monitoring, specifically for measuring shaft vibration and position in rotating equipment. Developed by Bently Nevada, a globally recognized brand under Baker Hughes, this proximity sensor is part of their trusted 3300 XL series.

The sensor utilizes eddy current technology to detect the distance between the sensor tip and the conductive target (usually a rotating shaft). It is primarily used in critical machinery protection systems and condition monitoring applications where accurate and real-time displacement measurements are vital.

Product Specifications

Applications

The 102044-00-28-10-02 Proximity Sensor is widely used in industrial and energy sectors. Typical applications include:

• Steam Turbines

• Gas Turbines

• Centrifugal Compressors

• Motors and Generators

• Pumps and Fans

• Gearboxes and Critical Bearings

Product Advantages

• High Precision & Sensitivity: Accurately measures shaft displacement and vibration, essential for avoiding costly unplanned downtimes.

• Industry Standard Compliance: Designed to meet API 670 standards for machinery protection.

• Rugged Design: Built to withstand harsh environments, with sealed stainless steel construction.

• System Compatibility: Fully compatible with Bently Nevada’s 3300 XL monitoring systems, offering plug-and-play integration.

• Long Probe Length: Suitable for installations requiring deep sensor insertion or custom routing.

• Reliable Output: Maintains consistent output even under temperature fluctuations and electrical noise.

Frequently Asked Questions (FAQ)

1. What is the primary use of the Bently Nevada 102044-00-28-10-02 sensor?

   It is used for proximity and vibration monitoring of rotating machinery shafts in critical systems.

2. Is this sensor compatible with non-Bently Nevada monitoring systems?

   It is optimized for use with Bently Nevada’s 3300 XL systems, but may be adaptable to third-party systems with proper configuration.

3. What is the maximum temperature this sensor can handle?

   The sensor is rated for operation from -35°C to +120°C.

4. Can it be used in explosive environments?

   While robust, its use in hazardous areas depends on installation configuration and certification. Refer to product documentation or seek certified alternatives.

5. What is the sensing range of this proximity sensor?

   The linear sensing range is approximately 2 mm, with a typical sensitivity of 200 mV/mil.

6. Does it require calibration after installation?

   Factory calibration is provided, but site calibration is recommended to ensure accuracy based on mounting and environmental factors.

7. Is the cable detachable or integrated?

   The cable is typically integral to ensure signal integrity, but models with detachable connectors are available.

8. What type of output signal does it generate?

   It outputs a voltage proportional to the shaft’s displacement, typically 7.87 mV/μm.

9. How is the sensor installed?

   It is mounted using a threaded sleeve or mounting bracket, with precise alignment toward the target shaft surface.

10. Can this sensor monitor both vibration and position?

    Yes, it can measure both dynamic (vibration) and static (position) parameters when integrated with a proximitor module.
