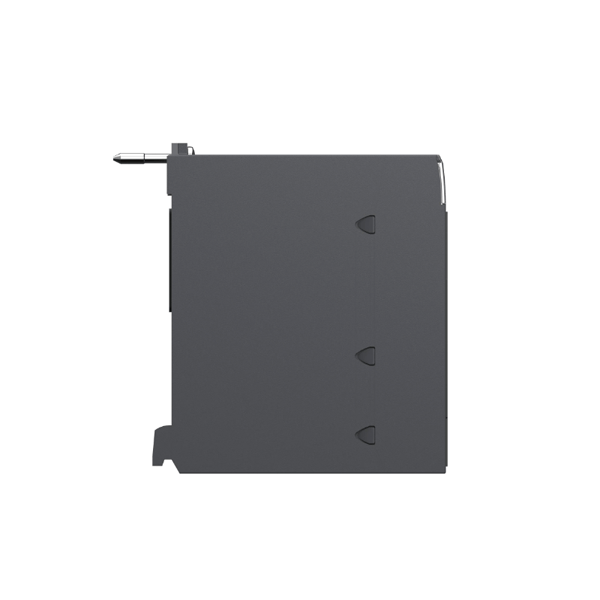

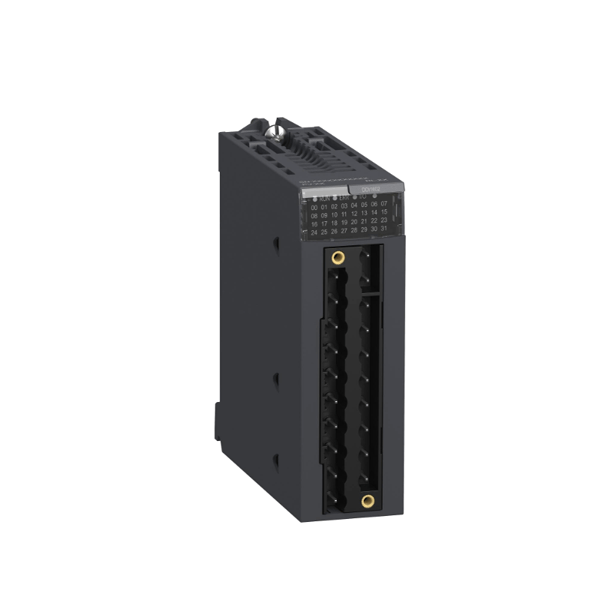

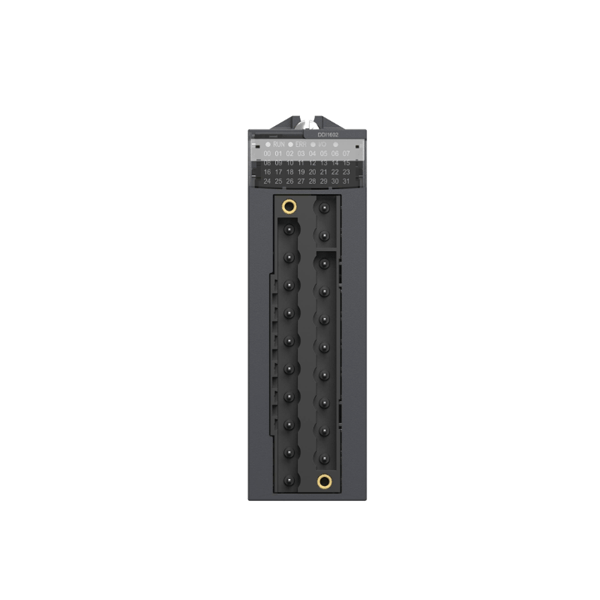

Schneider BMXDDI1602 Discrete Input Module

The Schneider BMXDDI1602 Discrete Input Module is part of the Modicon M340 series of programmable logic controllers (PLCs). This module is designed to integrate seamlessly into industrial automation systems, allowing for efficient and reliable processing of digital input signals. It is equipped with 16 discrete input channels, making it a suitable choice for applications that require the detection and processing of ON/OFF signals from various field devices such as sensors, switches, and relays.

The BMXDDI1602 module provides superior performance in demanding industrial environments, offering robust functionality with features such as isolated input channels, and it supports both 24V DC and volt-free dry contacts. This makes it highly versatile and capable of interfacing with a wide range of equipment in industrial automation, control systems, and machine monitoring applications.

Product Specifications

Product Applications

The Schneider BMXDDI1602 Discrete Input Module is designed for use in a wide range of industrial applications, including:

1. Manufacturing Automation: It is ideal for detecting ON/OFF signals from sensors, limit switches, or other field devices used in automated production lines, improving data collection and control efficiency.

2. Building Automation: Can be used to collect inputs from devices such as door sensors, alarm systems, and HVAC equipment to improve energy management and operational control.

3. Machine Control: This module is often used in CNC machines, conveyor systems, and packaging lines to capture inputs from sensors and switches to control the operation of machinery.

4. Safety Systems: It is commonly integrated into safety systems for monitoring safety devices such as emergency stops, door switches, or safety interlocks, ensuring high system integrity.

5. Process Control: In process industries, the module can interface with safety systems or used for data collection from field devices to optimize the control of processes.

Product Advantages

1. High Flexibility: Supports both 24V DC inputs and volt-free dry contacts, making it compatible with a broad range of field devices.

2. Channel Isolation: Each input channel is isolated, preventing electrical interference between channels and ensuring reliable operation even in complex systems.

3. Compact and Space-Saving: With a slim and compact design, the BMXDDI1602 module optimizes space usage within control panels or cabinets.

4. Robust Performance: Operating in a wide temperature range of -20°C to +60°C, it can withstand challenging industrial environments and fluctuating temperature conditions.

5. Ease of Installation: Designed to mount easily on DIN rails, the module offers simple installation and efficient wiring in industrial control systems.

6. Reliable Indicators: The 16 LEDs provide clear status feedback for each input channel, making troubleshooting and monitoring easier.

7. Cost-Effective: By offering a combination of reliable performance, high input count, and flexible voltage options, the BMXDDI1602 module is an economical choice for many industrial applications.

FAQ

1. What is the primary function of the BMXDDI1602 module?

   • The BMXDDI1602 is designed to receive discrete digital inputs from sensors, switches, and other field devices and transmit these signals to the Modicon M340 PLC for processing.

2. How many input channels does the BMXDDI1602 module have?

   • The module has 16 discrete input channels.

3. What types of inputs can the BMXDDI1602 accept?

   • The module supports 24V DC inputs and volt-free dry contacts.

4. What is the voltage range for the inputs?

   • The module can handle 24 VDC or dry contact (volt-free) inputs.

5. Can the BMXDDI1602 module be used with other Schneider Electric PLCs?

   • While primarily designed for the Modicon M340 PLC, the BMXDDI1602 can work within Schneider’s automation ecosystem, especially with compatible controllers.

6. Is the BMXDDI1602 module compatible with high-temperature environments?

   • Yes, the module operates within a temperature range of -20°C to +60°C, making it suitable for a wide variety of industrial applications.

7. What type of mounting does the BMXDDI1602 support?

   • The module is designed for DIN rail mounting, a standard for industrial control systems.

8. How is the module powered?

   • It is powered by the 24V DC backplane of the Modicon M340 PLC.

9. Does the BMXDDI1602 module offer isolation between channels?

   • Yes, the module offers channel-to-channel isolation, which improves the reliability and stability of the system.

10. What is the protection rating of the BMXDDI1602?

    • The module has an IP20 protection rating, meaning it is protected from solid objects greater than 12mm in diameter but is not protected against water.
