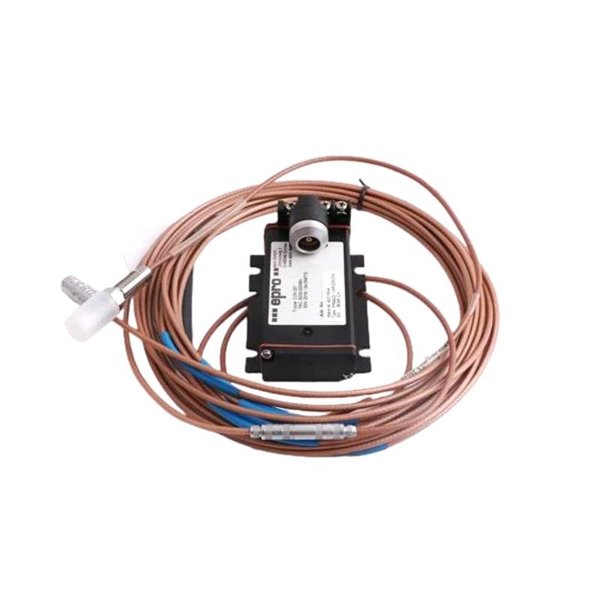

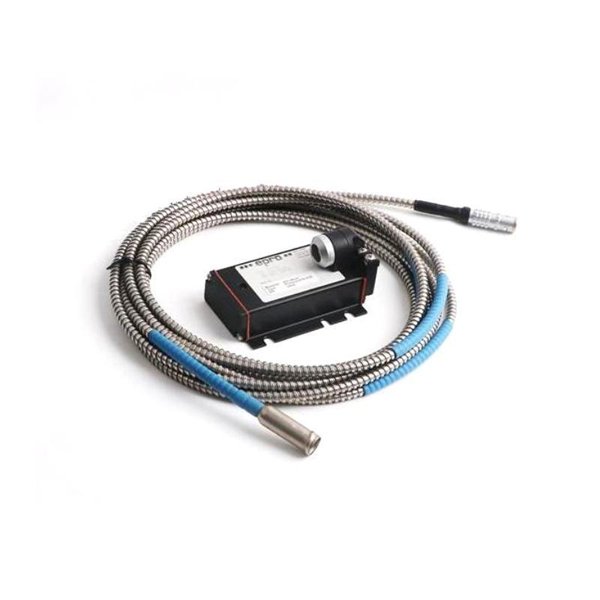

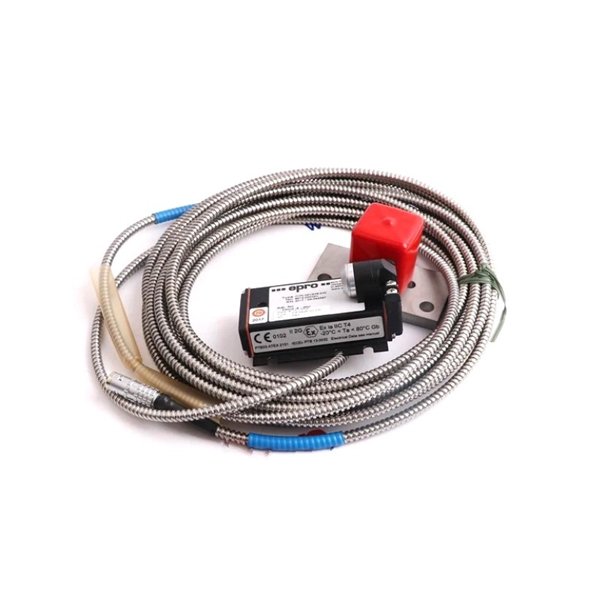

Epro PR6424/106-121 16mm Eddy Current Sensor

The Epro PR6424/106-121 16mm Eddy Current Sensor is a precision, non-contact displacement sensor designed for highly accurate measurement of displacement, position, and vibration in various industrial applications. This sensor uses the principle of eddy current measurement, where an alternating magnetic field is generated to detect the proximity of a conductive target. The sensor is highly reliable in harsh environments and provides exceptional performance in applications that require precision measurement of dynamic parameters.

With a compact 16mm probe, the Epro PR6424/106-121 is ideal for integration in tight spaces where larger sensors may not fit. Its versatility and rugged construction make it particularly useful for high-speed, high-precision applications in automotive, aerospace, and industrial automation systems. The sensor offers multiple output options, including analog voltage and current signals, making it compatible with a wide range of control systems.

Product Parameters

Product Applications

The Epro PR6424/106-121 16mm Eddy Current Sensor is used across various industries that require high-precision non-contact measurement for displacement, position, and vibration. Some of the key applications include:

• Automotive Industry: Used for monitoring the position and vibration of engine components, ensuring optimal performance and efficiency of automotive machinery.

• Aerospace: The sensor is ideal for measuring displacement in turbine blades and other high-precision aerospace components, helping maintain optimal operation in critical systems.

• Industrial Automation: The PR6424/106-121 is used for monitoring moving parts, positioning systems, and robotic arms, offering precise feedback for automation and control systems.

• Vibration Monitoring: Perfect for monitoring vibrations in rotating machinery such as motors, pumps, and generators, detecting imbalances and ensuring equipment health.

• Material Testing: The sensor is used in the non-destructive testing of materials, specifically for measuring displacement, wear, and thickness of metallic surfaces without contact.

• Power Generation: In power plants, the sensor is used to monitor the position of turbines and generators, providing real-time feedback for condition monitoring and predictive maintenance.

• Mining and Oil & Gas: Provides accurate measurements of mechanical displacement, preventing unexpected equipment failures and extending the lifespan of critical machinery.

Advantages of the Product

The Epro PR6424/106-121 16mm Eddy Current Sensor offers several key advantages that make it an ideal choice for various industrial applications:

• Non-Contact Measurement: The sensor uses eddy current technology, meaning it can measure displacement without physical contact, reducing wear and tear on both the sensor and target components.

• High Precision: With a resolution that ensures accurate displacement measurements, the PR6424/106-121 guarantees precise feedback, which is essential in applications that require highly detailed data.

• Compact Size: The small 16mm diameter of the probe makes this sensor suitable for tight or constrained spaces, where larger sensors might not fit, offering flexibility in installation.

• Fast Response Time: With a response time of less than 1 millisecond, the sensor is perfect for high-speed applications, ensuring real-time monitoring and control in dynamic environments.

• Wide Temperature Range: It operates effectively in a temperature range of -20°C to 85°C, making it suitable for use in diverse industrial environments, from very cold to high-heat conditions.

• Multiple Output Options: The sensor supports both analog voltage (0-10V) and current (4-20mA) outputs, ensuring compatibility with a wide range of control systems and equipment.

• Durable and Reliable: Designed to withstand harsh conditions, including vibrations and electromagnetic interference, the sensor provides long-lasting, stable performance in industrial applications.

• High Sensitivity: The sensor is highly sensitive, making it ideal for precise measurement of small displacements and minute changes in position, vibration, or wear.

FAQ

1. How does the Epro PR6424/106-121 measure displacement?

   • The sensor uses the eddy current principle, where an alternating magnetic field is generated and interacts with the conductive target, inducing eddy currents. The changes in the magnetic field are measured to determine the displacement.

2. What is the maximum displacement that the PR6424/106-121 can measure?

   • The sensor can measure up to 10 mm of displacement, providing highly accurate results within this range.

3. What output options are available for this sensor?

   • The PR6424/106-121 offers both voltage (0-10V) and current (4-20mA) output options, making it compatible with a wide range of control and monitoring systems.

4. What is the response time of the sensor?

   • The sensor has a fast response time of less than 1 millisecond, making it suitable for dynamic and high-speed applications.

5. What is the operating temperature range of the Epro PR6424/106-121?

   • The sensor operates within a temperature range of -20°C to 85°C, allowing it to be used in both cold and hot environments.

6. Can the sensor be used in non-metallic applications?

   • No, the PR6424/106-121 is designed for use with metallic targets, as the eddy current measurement principle relies on the conductivity of metal.

7. How precise is the sensor?

   • The sensor offers high precision with a resolution that provides accurate displacement measurements, even for small variations in position or vibration.

8. Can the Epro PR6424/106-121 be used in high-speed applications?

   • Yes, with its fast response time and high sensitivity, the PR6424/106-121 is ideal for high-speed measurement applications, such as monitoring rotating machinery.

9. What is the significance of the 16mm probe size?

   • The 16mm probe allows for the sensor to be used in tight spaces where larger sensors may not fit, making it versatile and easy to integrate into various machinery.

10. What types of systems is the PR6424/106-121 compatible with?

    • The sensor is compatible with a variety of industrial control systems that accept either voltage or current analog signals (0-10V or 4-20mA), ensuring seamless integration into existing setups.
