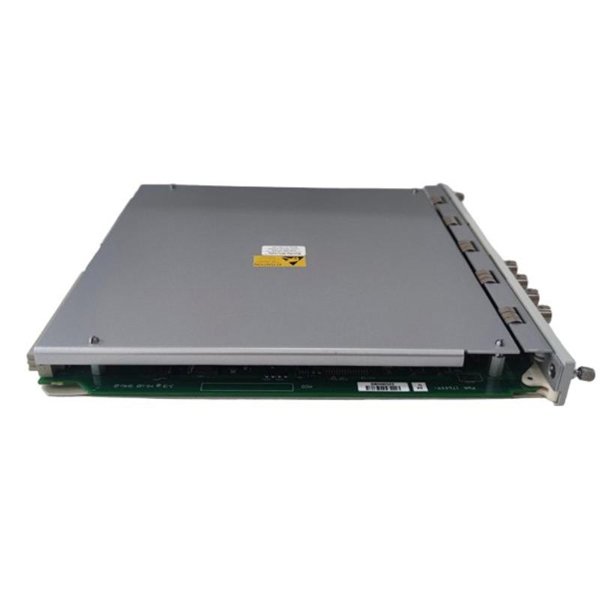

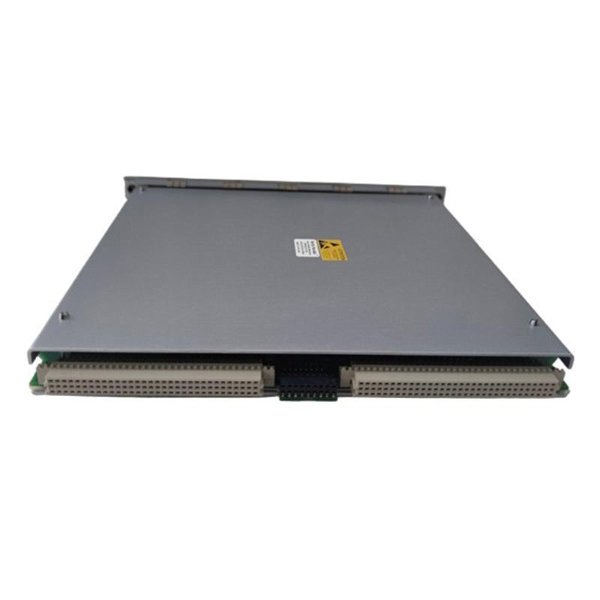

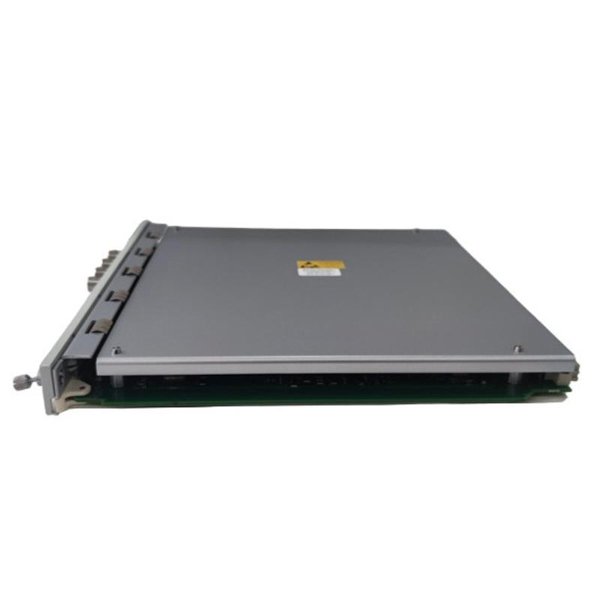

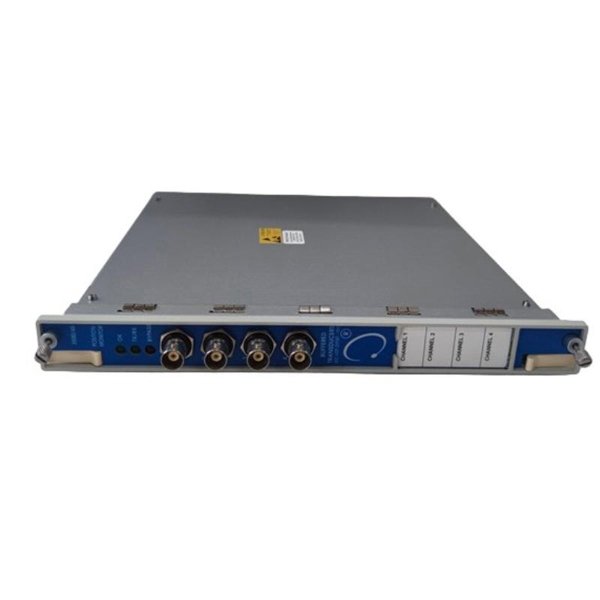

Bently Nevada 3500/45 176449-04 3500/45 Position Monitor
Manufacturer:Bently Nevada
Product Number:3500/45 176449-04
Product Type:3500/45 Position Monitor
Origin:USA
Dimensions:241.3 x 24.4 x 241.8 mm
Weight:0.91kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 3500/45 176449-04 Position Monitor is a key module in the 3500 Machinery Protection System, providing accurate shaft position monitoring and machinery protection. It receives signals from proximity probes or compatible transducers, delivering real-time data for alarm and trip functions. This module is designed for seamless integration with other 3500 series modules, ensuring reliable protection and performance of critical rotating equipment.
Key Features
-
High-precision shaft position monitoring
-
Supports multiple transducer and proximity probe types
-
Configurable alarm and trip outputs per channel
-
Hot-swappable for minimal downtime
-
Rack-mounted for 3500 series systems
-
Real-time data output compatible with System 1®
-
Rugged industrial design suitable for harsh environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/45 176449-04 |
| Module Type | Position Monitor Module |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Function | Shaft position and machinery monitoring |
| Input Channels | 2 channels (proximity probe/transducer inputs) |
| Output Channels | Configurable alarm and trip outputs |
| Alarm/Trip Capability | Configurable per channel |
| Communication | Via 3500 rack backplane |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | Supplied via 3500 rack |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Turbine, compressor, and pump shaft position monitoring
-
Rotating machinery protection and shutdown control
-
Oil & gas, petrochemical, and refining plants
-
Power generation and heavy industry
-
Integration with System 1® for condition monitoring and predictive maintenance
Frequently Asked Questions (FAQ)
Q1: How many input channels does this module have?
It has two independent proximity probe/transducer channels.
Q2: Can it provide configurable alarm and trip outputs?
Yes, outputs are configurable for each channel.
Q3: Is the module hot-swappable?
Yes, it can be replaced without shutting down the rack.
Q4: What types of sensors are supported?
Standard proximity probes and compatible position transducers.
Q5: What is the operating temperature range?
0°C to 65°C.
Q6: Can it integrate with System 1®?
Yes, it provides real-time data compatible with System 1®.
Q7: What are the module’s dimensions and weight?
It measures 241.3mm x 24.4mm x 241.8 mm and weighs approximately 0.91 kg.
Q8: Is it suitable for hazardous environments?
Yes, it meets CE, CSA, ATEX, and IECEx certifications.
Q9: Can it be used with all 3500 series racks?
Yes, it integrates seamlessly into the 3500 series rack system.
Q10: Can it process multiple signal types?
Yes, it supports inputs from standard proximity probes and compatible transducers.
