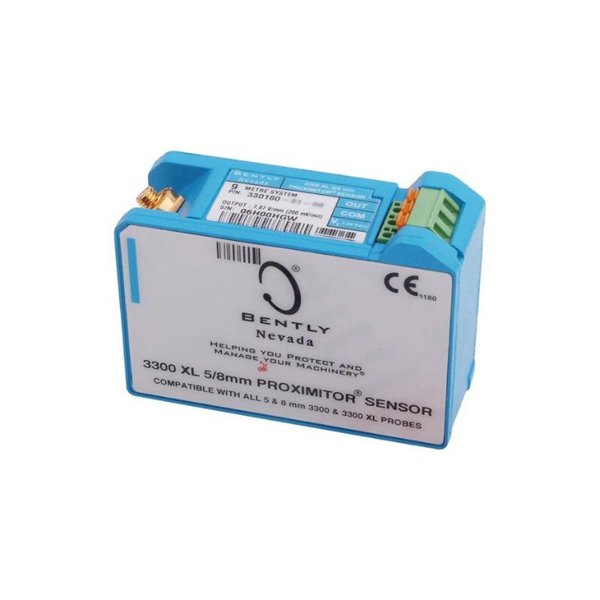

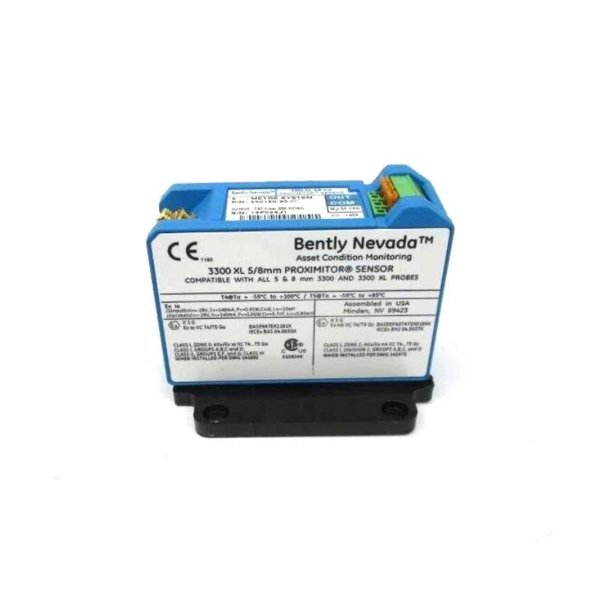

Bently Nevada 330180-90-CN 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-90-CN
Product Type:3300 XL Proximitor Sensor
Origin:USA
Total Length:9.0 meters
Weight:0.246 kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330180-90-CN is a component of the 3300 XL 8 mm Proximity Transducer System, delivering high-performance measurements of vibration and shaft position in rotating machinery. It is designed for durability, interchangeability, and compliance with API 670 standards. The sensor is used with a probe and extension cable to measure the distance between the probe tip and the monitored surface.
Applications
-
Vibration and position monitoring on fluid-film bearing machines
-
Turbine, compressor, motor, and pump shaft condition monitoring
-
Keyphasor reference signal acquisition
-
Overspeed and speed monitoring systems
-
Critical machinery protection and diagnostics
Product Advantages
-
Fully complies with API 670 standard
-
No need for component matching or individual calibration
-
Advanced RFI/EMI immunity for installation in high-noise environments
-
ClickLoc connectors for secure, tool-free connections
-
Compatible with DIN-rail or panel mounting
-
Extended temperature range support with optional components
Technical Specifications
| Parameter | Specification |
|---|---|
| System Length | 9.0 meters |
| Output Voltage | 7.87 V/mm (200 mV/mil) ±6.5% |
| Power Supply | –17.5 to –26 VDC |
| Operating Temp (Sensor) | –52°C to +100°C |
| Storage Temp (Sensor) | –52°C to +105°C |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz |
| Material (Sensor Body) | A308 Aluminum |
| Weight (Sensor only) | 0.246 kg (8.67 oz) |
| Total System Weight | ~0.7 kg |
| Dimensions (Sensor) | 89.4 mm length x 35 mm width (DIN mount) |
Frequently Asked Questions (FAQ)
Q1: What does the 330180-90-CN measure?
A1: It measures shaft position and vibration on rotating equipment.
Q2: Is it compliant with API 670?
A2: Yes, the 3300 XL 8 mm system complies with API 670 standards.
Q3: Can I mount it on DIN rails?
A3: Yes, it supports DIN rail and panel mounting.
Q4: Is calibration required for each system?
A4: No individual calibration is needed; components are fully interchangeable.
Q5: What’s the typical output signal?
A5: 7.87 V/mm (200 mV/mil) within its linear range.
Q6: What environments is it suitable for?
A6: It works well in industrial and hazardous environments, with certifications including ATEX, CSA, and IECEx.
Q7: Can it be used in high-temperature conditions?
A7: Yes, with the optional ETR components, it can handle up to +260°C.
Q8: Are the connectors secure?
A8: Yes, it uses gold-plated ClickLoc connectors with a locking mechanism.
Q9: What target material is it calibrated for?
A9: AISI 4140 steel by default.
Q10: How long can the field wiring be?
A10: Up to 305 meters (1,000 feet) between the Proximitor sensor and monitor.
