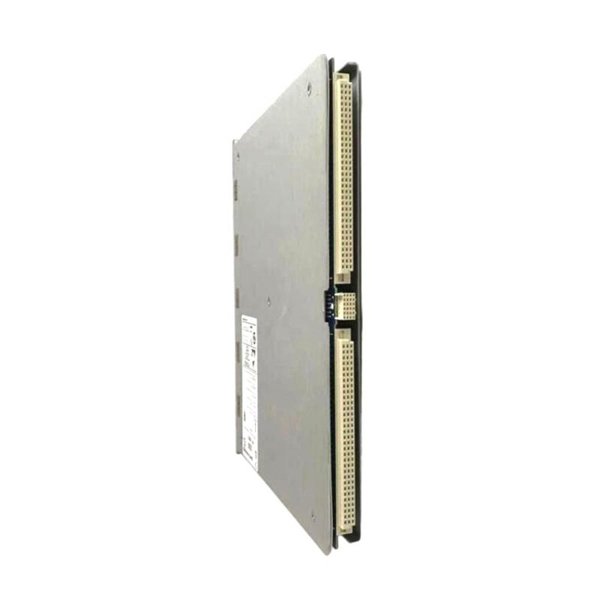

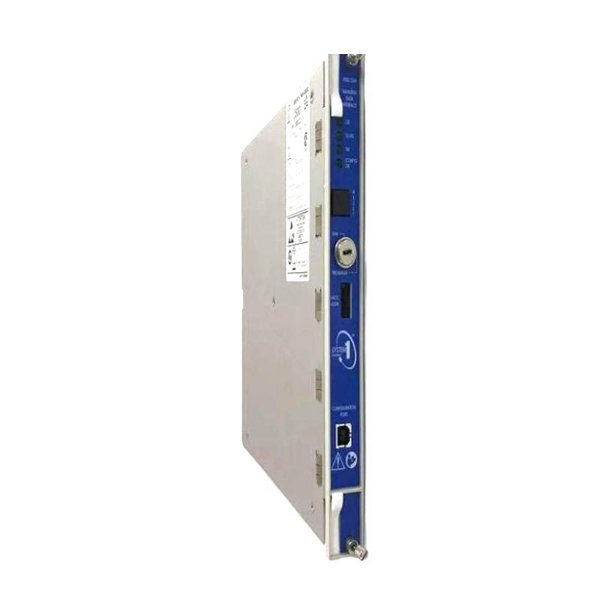

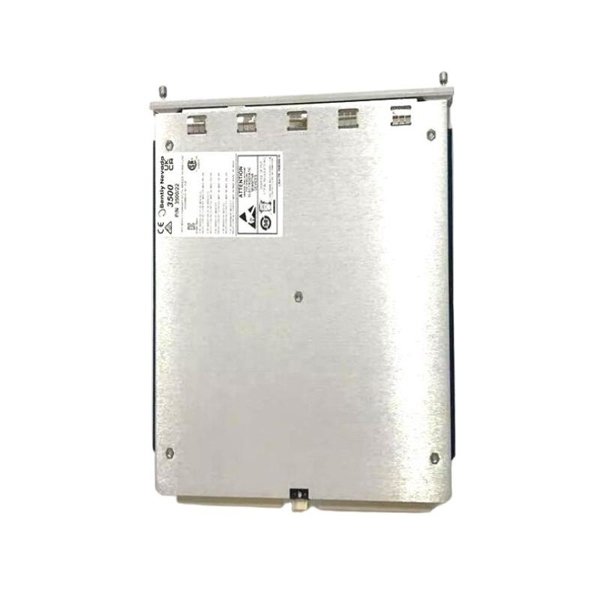

Bently Nevada 3500/22M 288055-01L Transient Data Interface Module

The Bently Nevada 3500/22M 288055-01L Transient Data Interface Module is a critical part of the advanced machinery protection and condition monitoring architecture provided by the Bently Nevada 3500 Series. Specifically engineered to capture and process transient vibration data, this module plays a vital role in enabling early detection of short-duration mechanical anomalies, such as shaft rubs, impact events, or bearing defects.

With high-speed data acquisition and seamless integration into the 3500 rack, the 288055-01L variant ensures robust communication and reliable monitoring in mission-critical industrial environments. Its rugged construction and compatibility with industry-standard protocols make it suitable for a wide range of applications including energy generation, oil and gas production, petrochemical processing, and marine machinery monitoring.

By collecting transient events and interfacing with advanced diagnostic systems, this module allows plant operators and maintenance teams to identify subtle mechanical changes before they evolve into catastrophic failures—ultimately safeguarding equipment, improving asset reliability, and reducing downtime.

Product Specifications

Product Applications

The 3500/22M 288055-01L is optimized for use in applications where transient vibration signals provide critical insights into equipment condition. Typical application areas include:

• Power Generation Plants

  Monitoring turbines, alternators, and generators for early fault indicators that develop over seconds or milliseconds.

• Oil & Gas Production

  Deployed on compressors, pumps, and motors in upstream, midstream, and downstream operations where reliable machinery condition monitoring is essential.

• Petrochemical and Refining Plants

  Protects rotating and reciprocating machinery by detecting shock loads, misalignment, and bearing faults.

• Mining and Heavy Industry

  Helps monitor critical conveyors, crushers, and milling machinery under high mechanical stress.

• Marine Propulsion Systems

  Supports predictive diagnostics for shipboard rotating machinery, especially where vibrations could compromise engine safety.

• Industrial Automation

  Ideal for monitoring automated rotating assets to maintain productivity and minimize unexpected downtime.

Product Advantages

• Real-Time Transient Capture

  Enables early detection of mechanical issues that manifest during brief, high-intensity events.

• System-Wide Integration

  Seamlessly fits into the 3500 rack, interfacing with other protection modules and centralized control systems.

• High Reliability in Harsh Conditions

  Operates dependably across a wide temperature range and in environments with high humidity and vibration.

• Minimizes Downtime

  Facilitates condition-based maintenance by identifying issues before they require emergency shutdowns.

• Compact and Modular

  Standardized form factor makes installation, replacement, and upgrades fast and efficient.

• Advanced Diagnostics Support

  Provides data that can be analyzed via Bently Nevada’s System 1 software or third-party CMMS platforms.

• Improved Asset Protection

  Helps extend machine life by delivering precise vibration diagnostics over fiber or wired interfaces.

• Certified for Industrial Use

  Meets international standards for electrical safety and hazardous-area operation.

Frequently Asked Questions (FAQ)

1. What does the 3500/22M 288055-01L module monitor?

   It monitors transient vibration signals from rotating machinery, identifying early fault signatures.

2. Is this module compatible with other 3500 Series modules?

   Yes, it is fully compatible with all components in the Bently Nevada 3500 rack system.

3. What kind of vibration events does it detect?

   It captures events like sudden bearing wear, shaft rubs, and impact-related vibrations.

4. Can this module be used in explosive environments?

   Yes, when installed with ATEX-certified enclosures and wiring, it complies with hazardous-area regulations.

5. How is the module installed in the system?

   It is installed directly into a designated I/O slot in the 3500 rack and connected to sensors and processing units.

6. Does this module support remote monitoring?

   Yes, data can be accessed via fiber or serial links connected to remote monitoring platforms.

7. How often should data from this module be analyzed?

   Regularly during maintenance cycles or whenever transient faults are suspected.

8. What software is used to analyze the captured data?

   Typically Bently Nevada’s System 1 software, though it can export data to other platforms.

9. What is the lifespan of the 3500/22M module?

   With proper environmental conditions, it typically lasts several years with minimal maintenance.

10. Is special training required to operate this module?

    Basic understanding of condition monitoring systems is sufficient.
