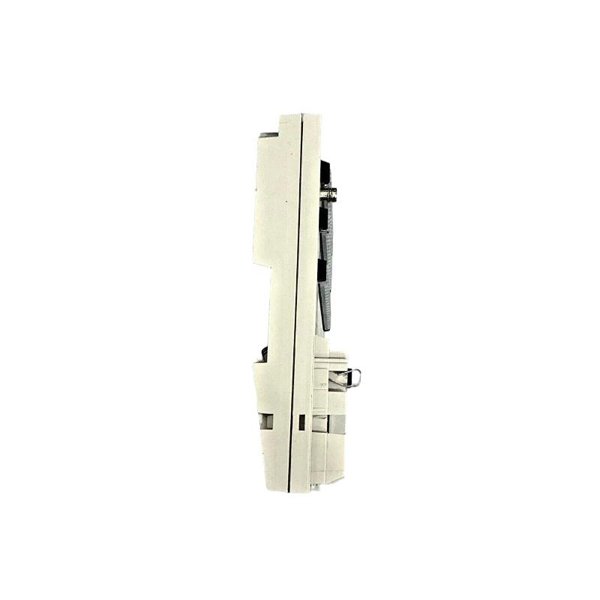

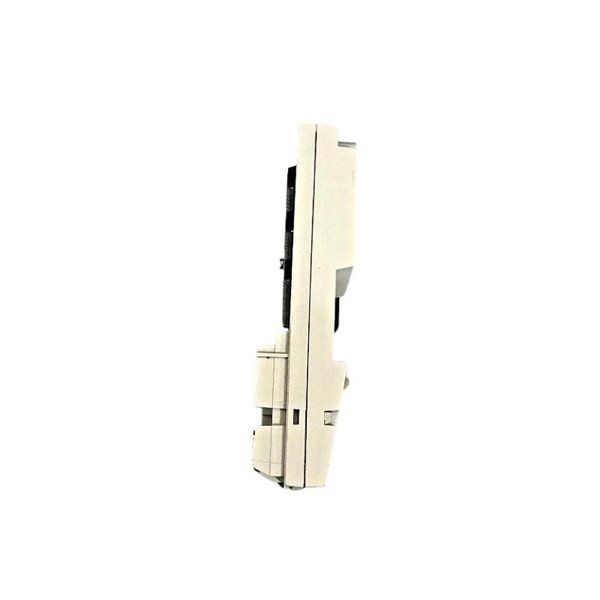

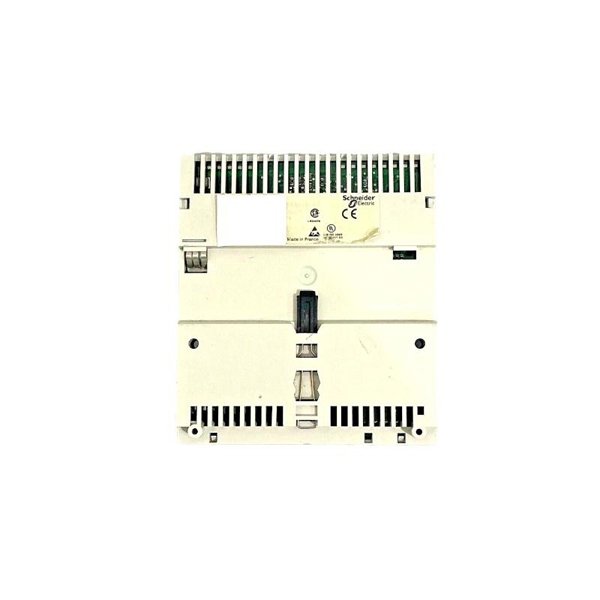

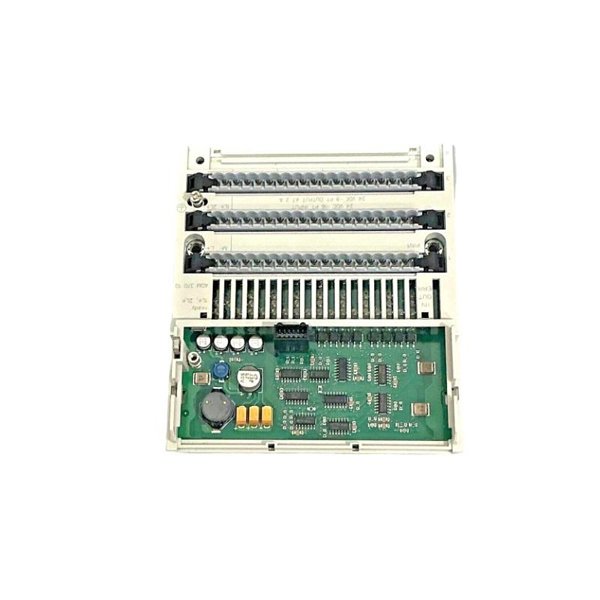

Schneider 170ADM37010 Discrete I/O Module
Manufacturer:Schneider
Product Number:170ADM37010
Product Type:Discrete I/O Module
Origin:France
Dimensions:47.5 × 125 × 141.5 mm
Weight:0.22 kg
Views:132
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 170ADM37010 is a compact discrete I/O module designed for Modicon Momentum automation platforms. It combines high-density digital inputs and outputs in a single unit, ideal for space-constrained industrial applications.
Product Description
The 170ADM37010 module features 8 digital inputs and 8 digital outputs, making it suitable for controlling a variety of industrial devices such as sensors, actuators, solenoids, and relays. It supports sink/source input types and relay output contacts for flexible use across different systems. This module integrates easily with Modicon Momentum processors and I/O bases.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Discrete I/O Module |
| Number of Inputs | 8 (24 VDC, sink/source) |
| Number of Outputs | 8 (relay type) |
| Input Voltage | 24 VDC |
| Output Type | Relay contact |
| Output Voltage Range | 5–30 VDC / 5–250 VAC |
| Output Current Rating | 2 A per channel |
| Response Time | ≤ 5 ms |
| Isolation | 1500 V between channels |
| Mounting Type | DIN Rail |
| Operating Temperature | 0 to 60 °C |
| Dimensions (W×H×D) | 47.5 × 125 × 141.5 mm |
| Weight | 0.22 kg |
Applications
-
Factory automation
-
Machine control systems
-
Material handling systems
-
Process control in discrete manufacturing
-
Building management systems
-
Packaging and bottling lines
Advantages
-
Combines inputs and outputs in one module, saving space
-
Easy integration with Modicon Momentum platforms
-
Reliable relay outputs for both AC and DC loads
-
DIN-rail mountable for flexible installation
-
High isolation for improved system safety
-
Robust design suitable for harsh industrial environments
FAQ
Q1: What devices can be connected to the outputs of the 170ADM37010?
A1: You can connect relays, actuators, lamps, or other loads up to 250 VAC or 30 VDC, with a maximum of 2 A per channel.
Q2: Is this module compatible with all Modicon Momentum bases?
A2: Yes, it is compatible with standard I/O bases in the Momentum range.
Q3: Does it support hot swapping?
A3: No, the module should not be removed or inserted while power is on.
Q4: What is the isolation rating between channels?
A4: The isolation between channels is 1500 V, ensuring signal protection.
Q5: What is the required input voltage?
A5: The input voltage is 24 VDC.
Q6: Can I use this module in a high-vibration environment?
A6: Yes, the module is industrial-grade and designed for stable performance under vibration.
Q7: Are the relay outputs mechanical or solid-state?
A7: The outputs are mechanical relay contacts.
Q8: How are diagnostics handled on this module?
A8: Diagnostic LEDs indicate the status of each input and output channel.
Q9: Is there short-circuit protection on the outputs?
A9: Protection should be implemented externally, as the module uses relay contacts.
Q10: What is the typical response time for input and output?
A10: The response time is less than or equal to 5 milliseconds.
