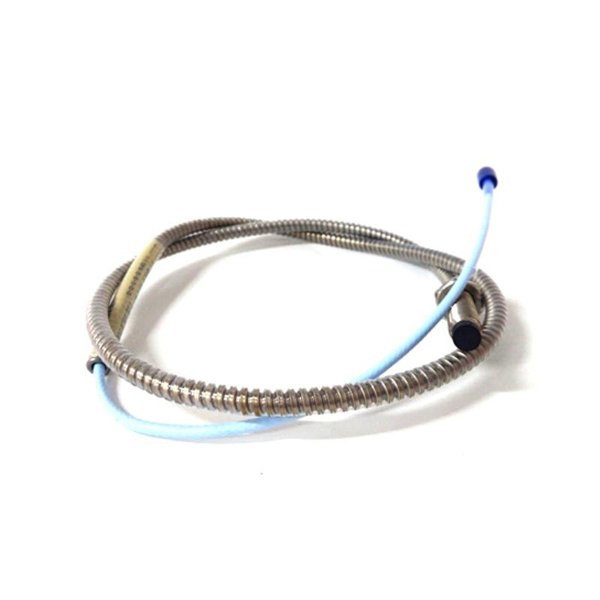

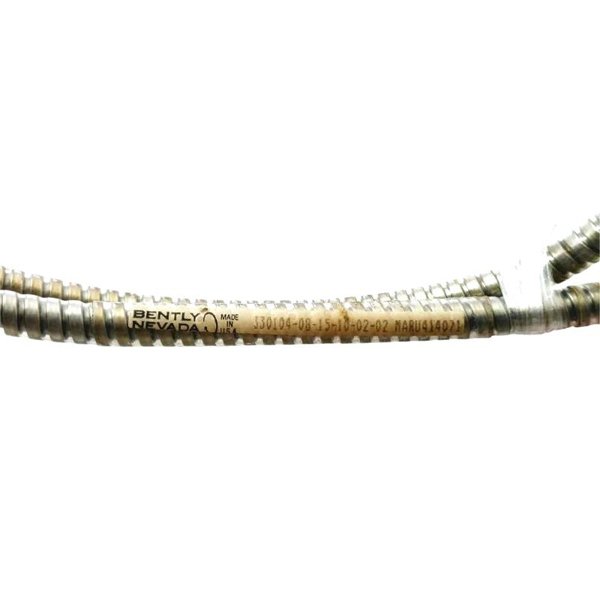

Bently Nevada 330104-07-14-05-01-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-07-14-05-01-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-07-14-05-01-00 is a high-performance 8 mm proximity probe designed for use in industrial machinery condition monitoring. It forms part of the 3300 XL system, which also includes an extension cable and a Proximitor Sensor. The probe delivers accurate static (position) and dynamic (vibration) measurements of rotating machinery.
Applications
-
Shaft vibration monitoring in fluid-film bearing machines
-
Rotor axial position measurement
-
Overspeed and Keyphasor® signal detection
-
Speed reference in turbine generators and motors
-
Condition-based maintenance systems in refineries and power plants
Key Advantages
-
Fully compliant with API 670
-
Interchangeable components — no individual matching needed
-
Robust mechanical design with TipLoc and CableLoc technology
-
Extended temperature range availability
-
ClickLoc connectors provide secure, tool-free connection
-
Improved RFI/EMI immunity supports installation in harsh environments
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Model | 330104-07-14-05-01-00 |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 x 1 |
| Mounting Type | Armored |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Cable Type | Standard, miniature coaxial ClickLoc connector |
| Operating Temp (Standard) | -52°C to +177°C |
| Operating Temp (ETR) | -52°C to +218°C (tip), +260°C (cable) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Material (Case) | AISI 303/304 Stainless Steel |
| Probe Cable Insulation | FEP |
| Minimum Shaft Diameter | 50.8 mm (Recommended: 76.2 mm) |
| Pressure Seal | Viton® O-ring |
FAQs
Q1: What is the primary function of the 330104-07-14-05-01-00 probe?
A1: It measures shaft vibration and position in rotating equipment using eddy current technology.
Q2: Can this probe be used in high-temperature environments?
A2: Yes. The standard model supports up to +177°C, and ETR variants support up to +218°C (tip) and +260°C (cable).
Q3: Is the probe compatible with older Bently Nevada systems?
A3: Yes. It is backward-compatible and interchangeable with non-XL 3300 5 mm and 8 mm components.
Q4: Does it meet API 670 standards?
A4: Yes, the 3300 XL 8 mm system fully complies with API 670 requirements.
Q5: What is the minimum shaft size it can monitor?
A5: It is suitable for shaft diameters down to 50.8 mm (2 in), though 76.2 mm is recommended.
Q6: Is field calibration required for individual components?
A6: No, components are fully interchangeable and do not require bench calibration.
Q7: What’s the benefit of ClickLoc connectors?
A7: ClickLoc provides secure, corrosion-resistant, tool-free connections with a locking click feature.
Q8: How does the CableLoc design help?
A8: It ensures strong cable retention with a pull strength of up to 330 N, reducing the risk of disconnection.
Q9: Can it be mounted in high-density installations?
A9: Yes, the Proximitor Sensor is DIN-rail and panel-mount compatible for flexible installations.
Q10: Is this probe certified for hazardous areas?
A10: Yes. It has CSA, ATEX, and IECEx approvals, suitable for Zone 0 and Zone 2 environments.
