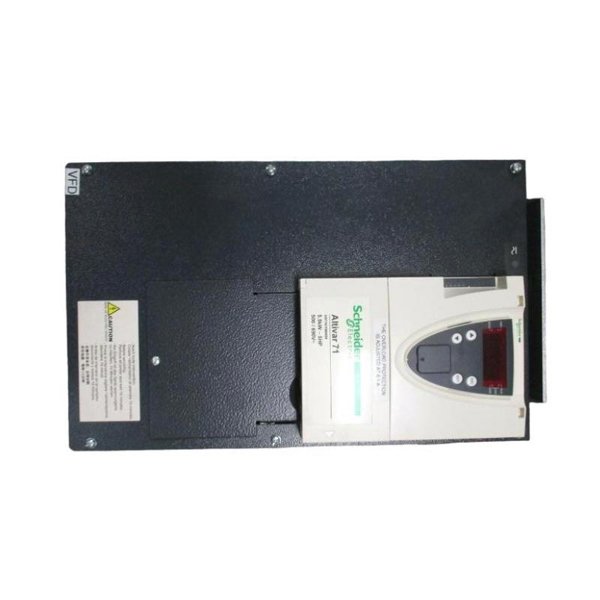

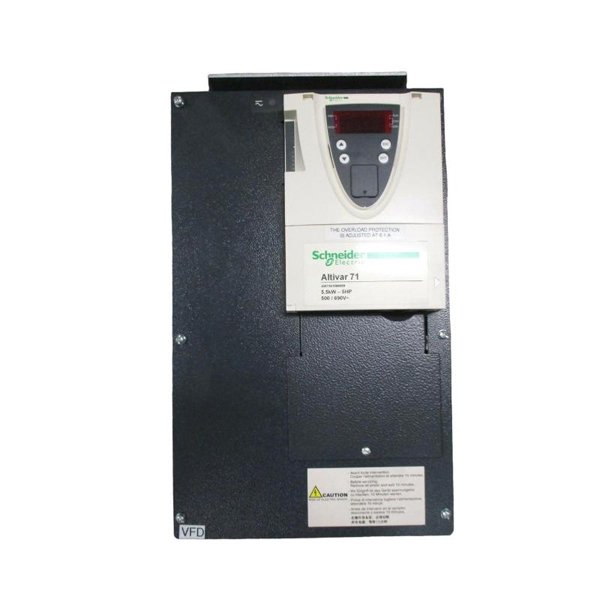

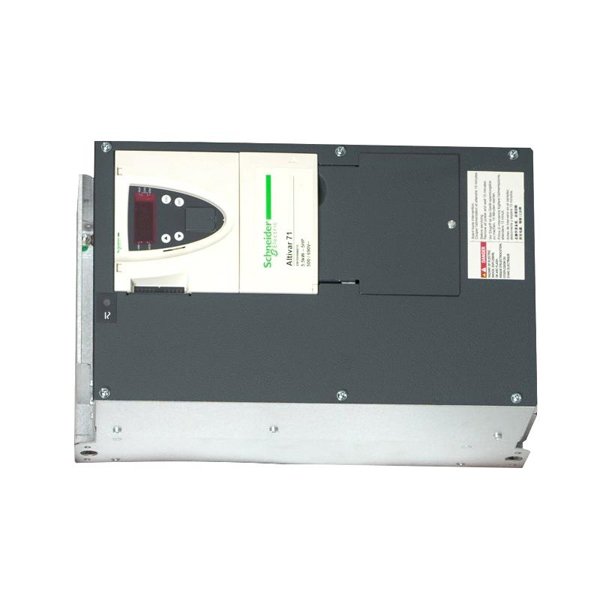

Schneider ATV71HU55Y Variable Speed Drive

The Schneider Electric ATV71HU55Y is a robust, high-performance Variable Speed Drive (VSD) developed to handle demanding motor control tasks in complex industrial processes. It belongs to the Altivar 71 series, which is known for its precision motor control, advanced safety, and modularity.

This specific model, rated at 5.5 kW (7.5 HP), is engineered for three-phase 200–240V power systems, ideal for regions or applications that use lower voltage standards. With features like sensorless flux vector control, voltage/frequency ratio control, and flux vector control with feedback, it provides precise regulation of motor speed and torque in both synchronous and asynchronous motors.

Integrated Modbus and CANopen communications, Safe Torque Off (STO), multiple I/O options, and a compact design make the ATV71HU55Y a versatile solution for OEMs, system integrators, and end users.

Product Specifications

Product Applications

• Material Conveying Systems

  Provides smooth and reliable speed control for conveyors, hoists, and lifts.

• Pumps and Fans

  Suitable for variable torque applications such as centrifugal pumps and industrial fans.

• Textile Machinery

  Offers precise control needed for synchronized motion in spinning, weaving, and dyeing units.

• Industrial Mixers and Agitators

  Ideal for high torque start-up requirements and maintaining stable speed during load changes.

• HVAC Systems

  Integrated PID control enhances energy efficiency and air/water flow management in buildings.

• Extruders and Printing Presses

  Delivers accurate motor control essential for tension, alignment, and continuous processing.

Product Advantages

• Designed for 200–240V Applications

  Specially tailored for regions with lower voltage grids or machinery requiring low-voltage control.

• Versatile Control Options

  Offers advanced motor control for asynchronous and synchronous motors across various modes.

• Integrated Safety

  Built-in Safe Torque Off (STO) improves machine safety by immediately disabling motor torque.

• Flexible Communication

  Modbus and CANopen built-in, with support for optional protocols for seamless integration.

• Energy Savings

  Features like motor flux optimization and PID control help reduce energy consumption.

• Easy Configuration

  User-friendly interface and SoMove software simplify commissioning and diagnostics.

• Scalable Design

  Modular architecture enables adaptability with add-on cards and accessories.

Frequently Asked Questions (FAQ)

1. What voltage does the ATV71HU55Y support?

   This model supports 200–240 V AC, three-phase input voltage.

2. What is the rated power of this drive?

   It is rated for 5.5 kW (7.5 HP) motors.

3. Can it control synchronous motors?

   Yes, it supports both synchronous and asynchronous motors.

4. Is the drive compliant with global standards?

   Yes, it meets CE, UL, CSA, RoHS, and IEC 61800-5-1 standards.

5. What control methods are available?

   V/F control, sensorless vector control, and flux vector control with feedback.

6. Does it have built-in communication protocols?

   Yes, Modbus and CANopen are integrated. Others can be added via expansion cards.

7. How is motor safety ensured?

   Through Safe Torque Off (STO), which disables motor torque during emergencies.

8. Can it be used in enclosed panels?

   Yes, it is suitable for panel mounting, with forced ventilation for cooling.

9. What tools are available for programming?

   The drive can be programmed using Schneider’s SoMove software or HMI terminals.

10. Is it suitable for HVAC systems?

    Absolutely — with its built-in PID control, it’s ideal for variable load applications like HVAC.
