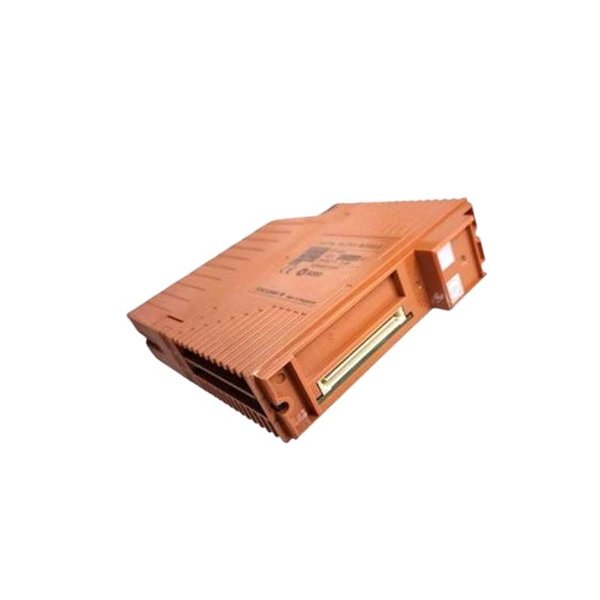

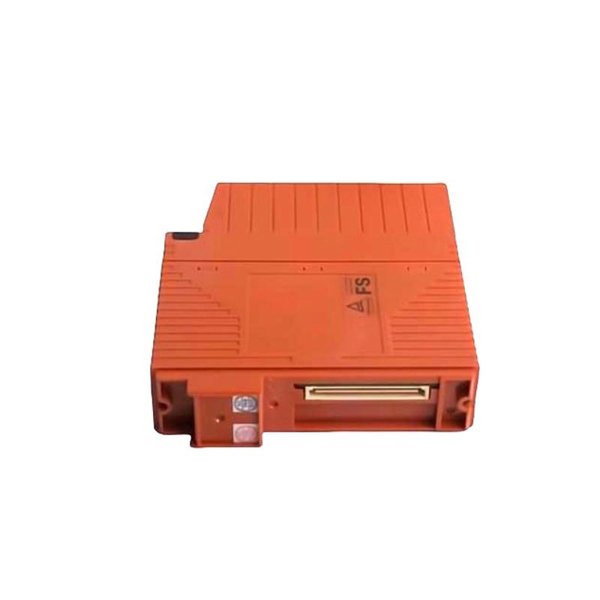

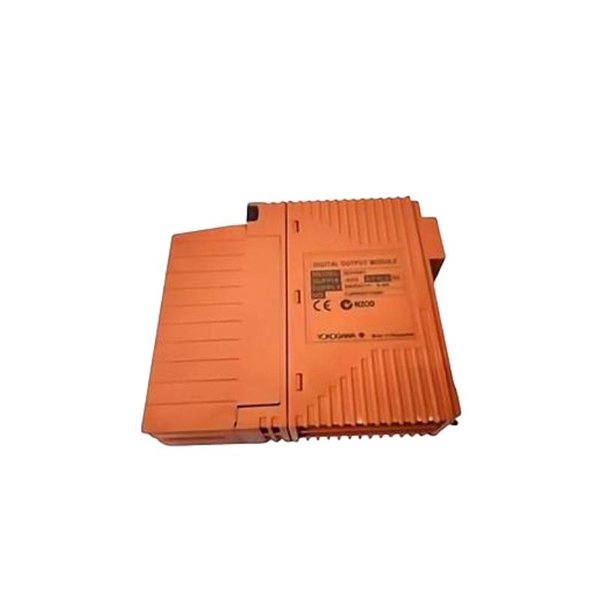

Yokogawa SADV541-S63 Digital Output Module

The Yokogawa SADV541-S63 is a digital output module designed for high-performance distributed control systems (DCS), specifically for the CENTUM VP and CS 3000 platforms. Engineered with precision and durability in mind, the SADV541-S63 is used to transmit control signals from the processor to actuators, solenoids, and other digital field devices. It features a robust design that ensures consistent operation even in harsh industrial environments.

The module provides 16 independent digital output channels, each capable of switching discrete field signals. Designed to meet high safety and reliability standards, this module is essential in industries requiring real-time process control, such as power generation, petrochemicals, water treatment, and advanced manufacturing.

Product Specifications

Applications

The SADV541-S63 module plays a critical role in digital signal output across multiple industries, including:

• Power Generation Plants – For turbine control and breaker operations

• Oil & Gas Refineries – Managing on/off control of pumps and valves

• Water Treatment Facilities – Operating solenoids and motor starters

• Chemical Processing Units – Triggering batch process sequences

• Manufacturing Automation – Machine and robot line actuation control

• Pharmaceutical Industry – Ensuring precise digital control in production steps

Product Advantages

• High Reliability: Designed for critical process environments, minimizing failure rates

• Channel Isolation: Enhanced safety by isolating each channel to prevent crosstalk

• Rapid Switching: Fast response times suitable for real-time control systems

• Diagnostic Features: Fault detection simplifies maintenance and reduces downtime

• Compatibility: Seamlessly integrates with Yokogawa CENTUM VP and CS platforms

• Compact Form Factor: Space-saving design ideal for dense control cabinets

• Long Product Lifecycle: Engineered with long-term support in mind for industrial use

• Certified for Harsh Environments: Meets international standards for quality and safety

• Low Power Consumption: Efficient circuitry reduces heat generation

• Flexible Load Support: Handles both resistive and inductive field devices

Frequently Asked Questions (FAQ)

1. What type of output does the SADV541-S63 provide?

   It provides 24 VDC digital sourcing outputs suitable for driving solenoids and relays.

2. Can this module be hot-swapped during system operation?

   No, the SADV541-S63 should be powered down during replacement to avoid faults.

3. Is each output channel isolated?

   Yes, each channel features galvanic isolation to enhance signal integrity and safety.

4. Which DCS systems is it compatible with?

   It is designed for use with Yokogawa CENTUM VP and CS 3000 systems.

5. How many channels are available on this module?

   It offers 16 independent digital output channels.

6. What are common field devices it can control?

   Solenoids, contactors, motor starters, and annunciators.

7. Does it have built-in fault diagnostics?

   Yes, it supports diagnostic functions including channel health monitoring.

8. What is the maximum load per channel?

   Each channel can handle up to 0.5 A of output current.

9. How is the module mounted?

   It is rack-mounted onto an I/O base for centralized DCS installation.

10. Is the SADV541-S63 suitable for safety-critical applications?

    Yes, it complies with industrial certifications making it viable for safety-sensitive environments.
