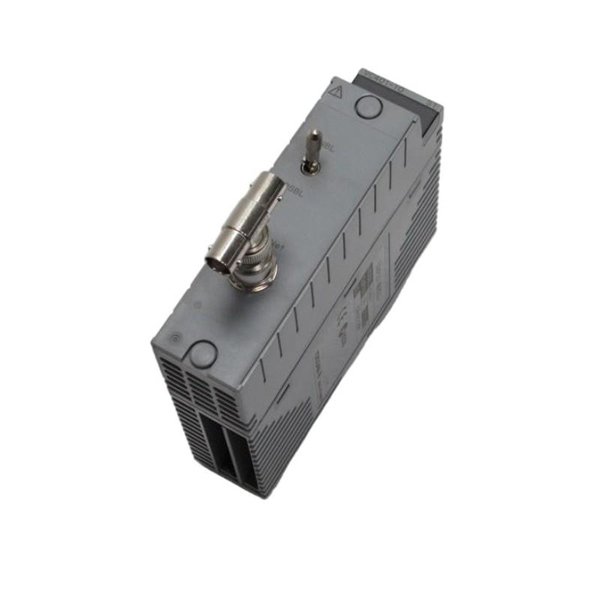

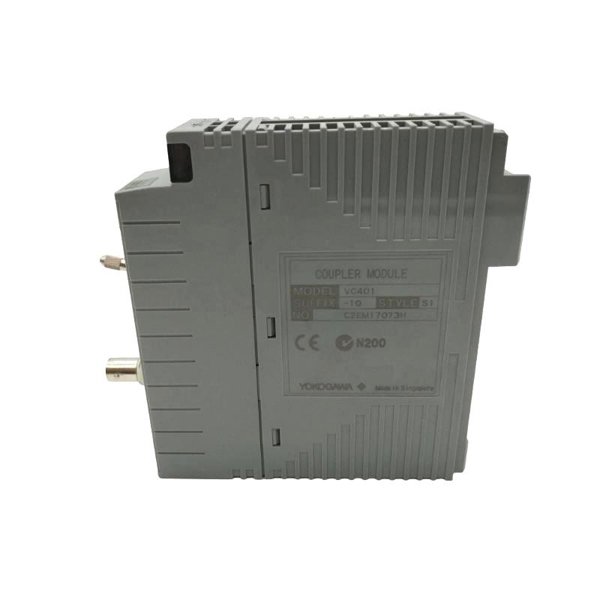

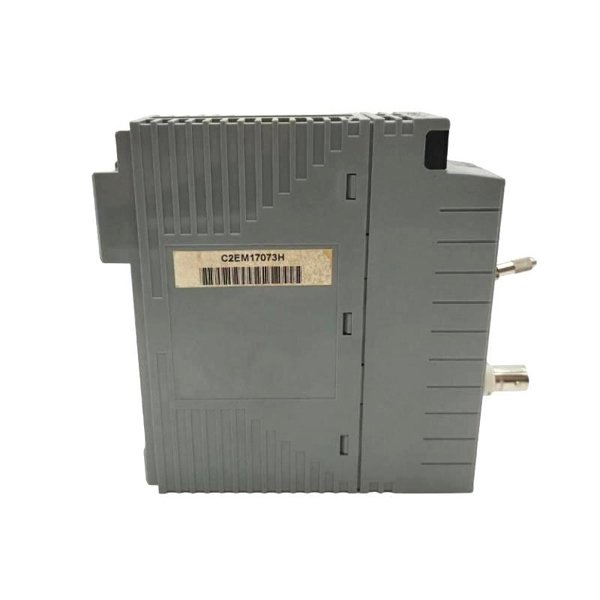

Yokogawa VC401-10 Coupler Modules

The Yokogawa VC401-10 Coupler Module serves as a vital interface component within the CENTUM VP distributed control system. It facilitates communication and data exchange between the control processor and various I/O modules. Designed for seamless integration and reliable performance, this coupler module ensures stable signal transmission across the system backbone, supporting efficient process control.

Key Features

• Provides reliable communication link between controller and I/O modules

• Supports multiple communication protocols compatible with CENTUM VP systems

• Compact design for easy installation within control cabinets

• Robust construction for reliable operation in industrial environments

• Facilitates system scalability and modular expansion

• LED indicators for communication and status monitoring

Technical Specifications

Industry Applications

• Distributed control systems (DCS) requiring stable communication infrastructure

• Industrial automation in oil & gas, chemical, power generation, and manufacturing sectors

• Systems needing modular expansion and flexible architecture

• Environments demanding high reliability and fault tolerance

Product Advantages

• Ensures stable and reliable communication between controllers and I/O modules

• Supports flexible system design and scalability

• Industrial-grade durability for harsh environments

• Easy to install and maintain with LED status indicators

• Complies with Yokogawa CENTUM VP system standards

Frequently Asked Questions (FAQ)

1. What is the main function of the VC401-10 module?

   It acts as a communication coupler between the control processor and I/O modules.

2. Which communication protocols does it support?

   It uses a proprietary Yokogawa bus interface compatible with CENTUM VP systems.

3. What is the operating temperature range?

   0°C to 55°C.

4. What power supply voltage does it require?

   24 VDC ±5%.

5. Are there LED indicators on the module?

   Yes, for communication status and power status.

6. What are the module’s dimensions and weight?

   Approximately 130 mm x 100 mm x 40 mm and weighs about 0.9 kg.

7. What is the power consumption?

   Approximately 4 watts.

8. Can it be used in harsh industrial environments?

   Yes, it is designed for industrial-grade durability.

9. Does the module support system scalability?

   Yes, it facilitates modular system expansion.

10. Is the VC401-10 compatible with other Yokogawa CENTUM VP modules?

    Yes, it is fully compatible.
